Torque Specifications








SPECIFICATIONS: U760E AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

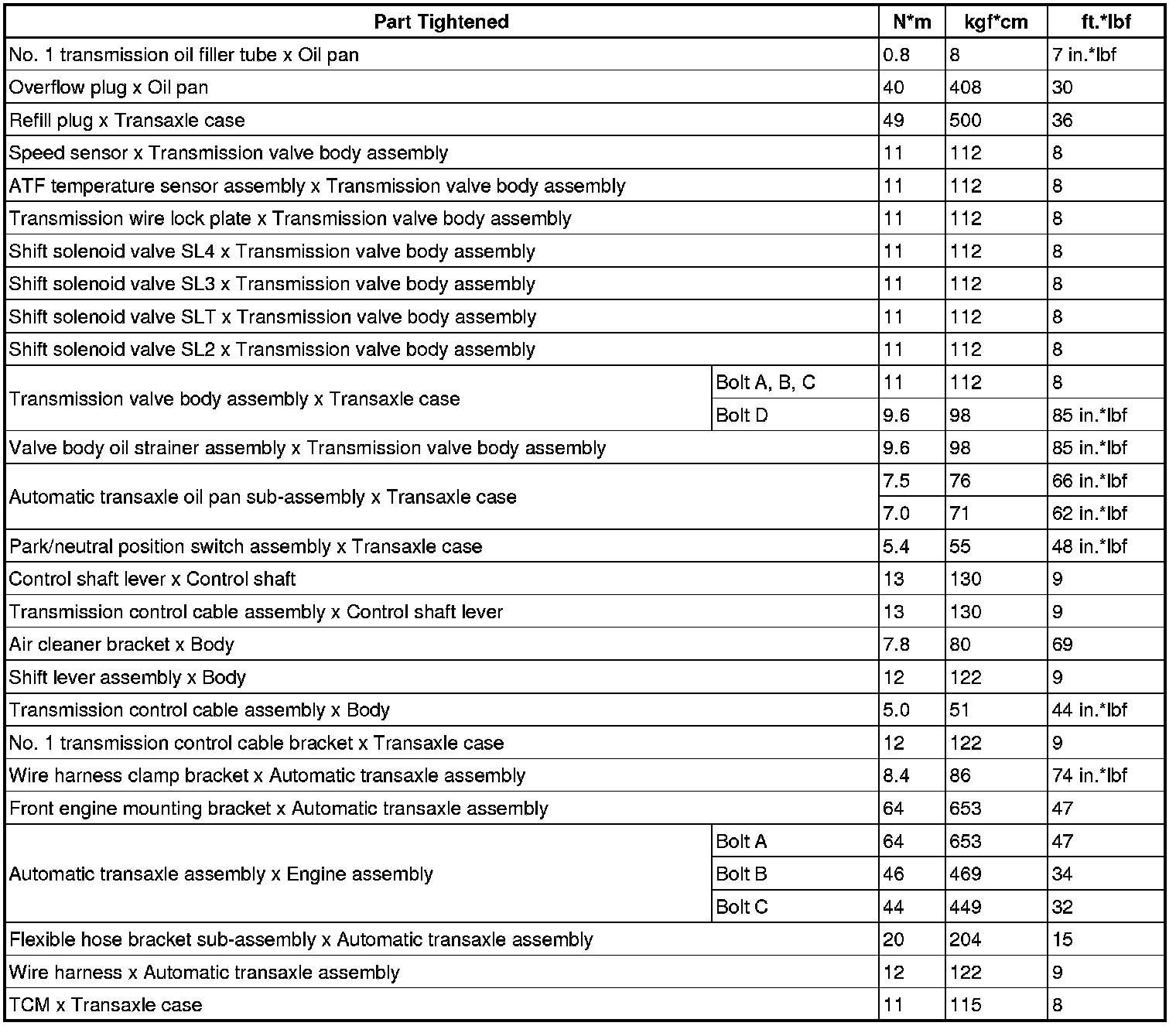

TORQUE SPECIFICATIONS





Automatic Transaxle Unit





Oil Pump





Differential Case
