Removal

AXLE AND DIFFERENTIAL: REAR AXLE CARRIER (for 2WD): REMOVAL

REMOVAL
HINT:
- Use the same procedure for the RH side and LH side.
- The procedure listed below is for the LH side.

1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY Disassembly
3. REMOVE REAR DISC Removal
4. SEPARATE REAR SPEED SENSOR WIRE Removal
5. SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY Removal
6. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY Removal
7. REMOVE REAR STRUT ROD ASSEMBLY Removal

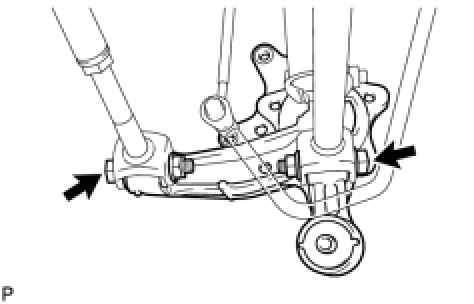

8. REMOVE REAR AXLE CARRIER SUB-ASSEMBLY

(a) Loosen the 2 bolts.
NOTICE: Since stopper nuts are used, loosen the bolts.

(b) Remove the 2 bolts and 2 nuts, and separate the rear axle carrier sub-assembly from the rear shock absorber with coil spring.
NOTICE: When removing the nuts, keep the bolts from rotating.
