DISASSEMBLY

1. REMOVE BREATHER PLUG HOSE

(a) Using a screwdriver, remove the breather plug hose from the transaxle case.

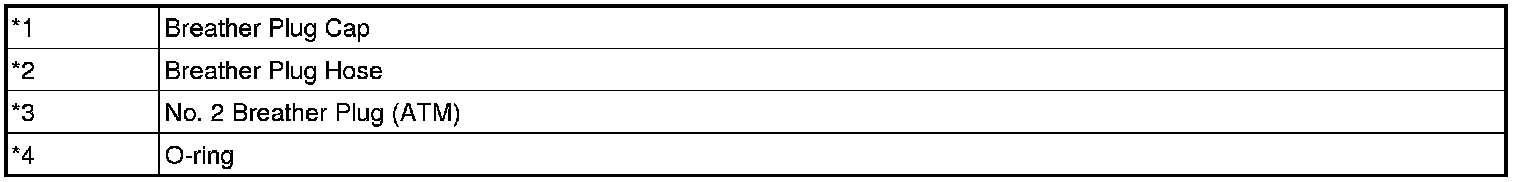

(b) Using a screwdriver, remove the No. 2 breather plug (ATM) from the breather plug hose.

Test in Illustration

(c) Using a screwdriver, remove the O-ring from the No. 2 breather plug (ATM).
(d) Using a screwdriver, remove the breather plug cap from the breather plug hose.
2. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Remove the nut, washer, and control shaft lever from the control shaft.

(b) Remove the 2 bolts and the park/neutral position switch assembly from the transaxle case.
NOTICE: Before removing the park/neutral position switch, remove any dirt or rust on the installation portion of the control shaft. Be sure to remove the switch straight along the shaft while being careful not to deform the plate spring that supports the shaft. If the plate spring is deformed, the park/neutral position switch cannot be reinstalled correctly.

3. REMOVE OIL COOLER TUBE UNION (OUTLET OIL COOLER UNION)

(a) Loosen the nut while holding the oil cooler tube union (outlet oil cooler union).
(b) Remove the oil cooler tube union (outlet oil cooler union) from the transaxle case.
(c) Remove the O-ring from the oil cooler tube union (outlet oil cooler union).
4. REMOVE OIL COOLER TUBE UNION (INLET OIL COOLER UNION)

(a) Loosen the nut while holding the oil cooler tube union (inlet oil cooler union).
(b) Remove the oil cooler tube union (inlet oil cooler union) from the transaxle case.
(c) Remove the O-ring from the oil cooler tube union (inlet oil cooler union).
5. REMOVE NO. 1 TRANSAXLE CASE PLUG

(a) Remove the 3 No. 1 transaxle case plugs from the transaxle case.
(b) Using a screwdriver, remove the 3 O-rings from the 3 No. 1 transaxle case plugs.

(c) Using a hexagon wrench (6 mm), remove the 3 hexagon bolts from the transaxle housing.
(d) Remove the gasket from each of the 3 hexagon bolts.
6. SUPPORT AUTOMATIC TRANSAXLE ASSEMBLY

(a) Support the transaxle assembly on wooden blocks.
7. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

(a) Using a hexagon wrench (6 mm), remove the overflow plug from the automatic transaxle oil pan sub-assembly.
(b) Remove the gasket from the overflow plug.

(d) Remove the 19 bolts, automatic transaxle oil pan sub-assembly, and automatic transaxle oil pan gasket from the automatic transaxle assembly.

(e) Remove the 2 transmission oil cleaner magnets from the automatic transaxle oil pan sub-assembly.
8. INSPECT TRANSMISSION OIL CLEANER MAGNET Transaxle Unit
9. REMOVE VALVE BODY OIL STRAINER ASSEMBLY

(a) Remove the 2 bolts and oil strainer assembly from the valve body assembly.

(b) Remove the O-ring from the oil strainer assembly.

Test in Illustration

10. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

(a) Remove the 11 bolts and valve body assembly from the transaxle case.
NOTICE: When removing the transmission valve body assembly, be careful not to allow the transmission revolution sensor and the transaxle case to interfere with each other.

11. REMOVE TRANSAXLE CASE GASKET

(a) Remove the 2 gaskets from the transaxle case.
12. INSPECT INPUT SHAFT SUB-ASSEMBLY Transaxle Unit
13. REMOVE REAR TRANSAXLE COVER SUB-ASSEMBLY

(a) Remove the refill plug from the rear transaxle cover sub-assembly.
(b) Remove the gasket from the refill plug.

(c) Remove the 3 No. 1 automatic transaxle case plugs from the rear transaxle cover sub-assembly.
(d) Using a screwdriver, remove the 3 O-rings from the 3 No. 1 automatic transaxle case plugs.

(e) Remove the 14 bolts from the rear transaxle cover sub-assembly.
(f) Using a brass bar and a hammer, tap on the circumference of the rear transaxle cover sub-assembly to remove the rear transaxle cover sub-assembly from the transaxle case.

(g) Using a screwdriver, remove the 3 O-rings from the transaxle case.

(h) Using a screwdriver, remove the 2 oil seal rings from the rear transaxle cover sub-assembly.

Test in Illustration

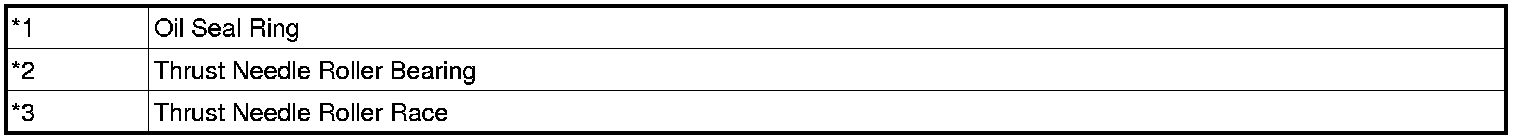

(i) Remove the thrust needle roller bearing and thrust needle roller race from the rear transaxle cover sub-assembly.

(j) Using a "TORX" wrench (T30), remove the 2 "TORX" screws and rear transaxle cover plate from the rear transaxle cover sub-assembly.

(k) Using SST, remove the needle roller bearing from the rear transaxle cover sub-assembly.

Test in Illustration

SST: 09319-60020
14. REMOVE REAR NO. 2 PLANETARY SUN GEAR THRUST NEEDLE ROLLER BEARING

(a) Remove the direct multiple disc clutch assembly from the transaxle case.

Test in Illustration

(b) Remove the rear No. 2 planetary sun gear thrust needle roller bearing from the direct multiple disc clutch assembly.
