U760E AUTOMATIC TRANSMISSION / TRANSAXLE: VALVE BODY ASSEMBLY: REASSEMBLY

REASSEMBLY

1. INSTALL SHIFT SOLENOID VALVE SL4





(a) Coat the shift solenoid valve SL4 with ATF.

Text in Illustration





(b) Install the shift solenoid valve SL4 and lock plate to the valve body assembly with the bolt.
Torque: 11 Nm (112 kgf-cm, 8ft-lbf)
2. INSTALL SHIFT SOLENOID VALVE SL3





(a) Coat the shift solenoid valve SL3 with ATF.

Text in Illustration





(b) Install the shift solenoid valve SL3 and lock plate to the valve body assembly with the bolt.
Torque: 11 Nm (112 kgf-cm, 8ft-lbf)
3. INSTALL SHIFT SOLENOID VALVE SLU





(a) Coat the shift solenoid valve SLU with ATF.

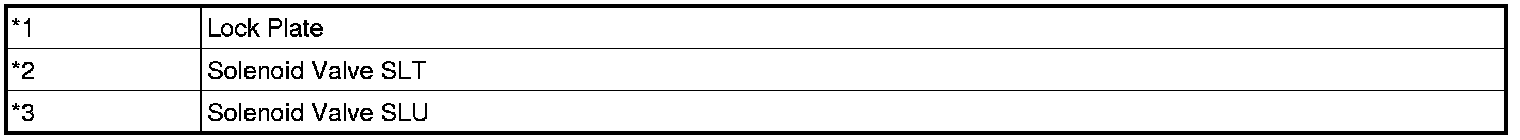

Text in Illustration





(b) Install the shift solenoid valve SLU to the valve body assembly.
4. INSTALL SHIFT SOLENOID VALVE SLT
(a) Coat the shift solenoid valve SLT with ATF.
(b) Install the shift solenoid valve SLT and lock plate to the valve body assembly with the bolt.
Torque: 11 Nm (112 kgf-cm, 8ft-lbf)
5. INSTALL SHIFT SOLENOID VALVE SL1





(a) Coat the shift solenoid valve SL1 with ATF.

Text in Illustration





(b) Install the shift solenoid valve SL1 to the valve body assembly.
6. INSTALL SHIFT SOLENOID VALVE SL2
(a) Coat the shift solenoid valve SL2 with ATF.

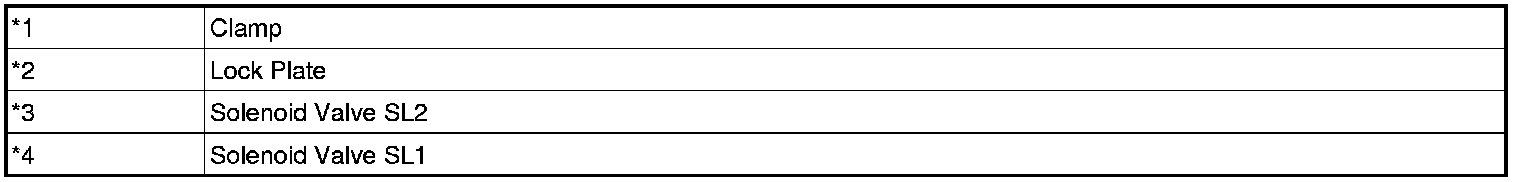

(b) Install the shift solenoid valve SL2, clamp and lock plate to the valve body assembly with the 2 bolts.
Torque: 11 Nm (112 kgf-cm, 8ft-lbf)
7. INSTALL SHIFT SOLENOID VALVE SL





(a) Coat the shift solenoid valve SL with ATF.

Text in Illustration





(b) Install the shift solenoid valve SL to the valve body assembly with the bolt.
8. INSTALL TRANSMISSION WIRE Installation
9. INSTALL SPEED SENSOR Installation
