Home >> Toyota >> 2009 >> Venza FWD V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Locations >> Rear View Monitor System (w/o Navigation System)

Rear View Monitor System (w/o Navigation System)

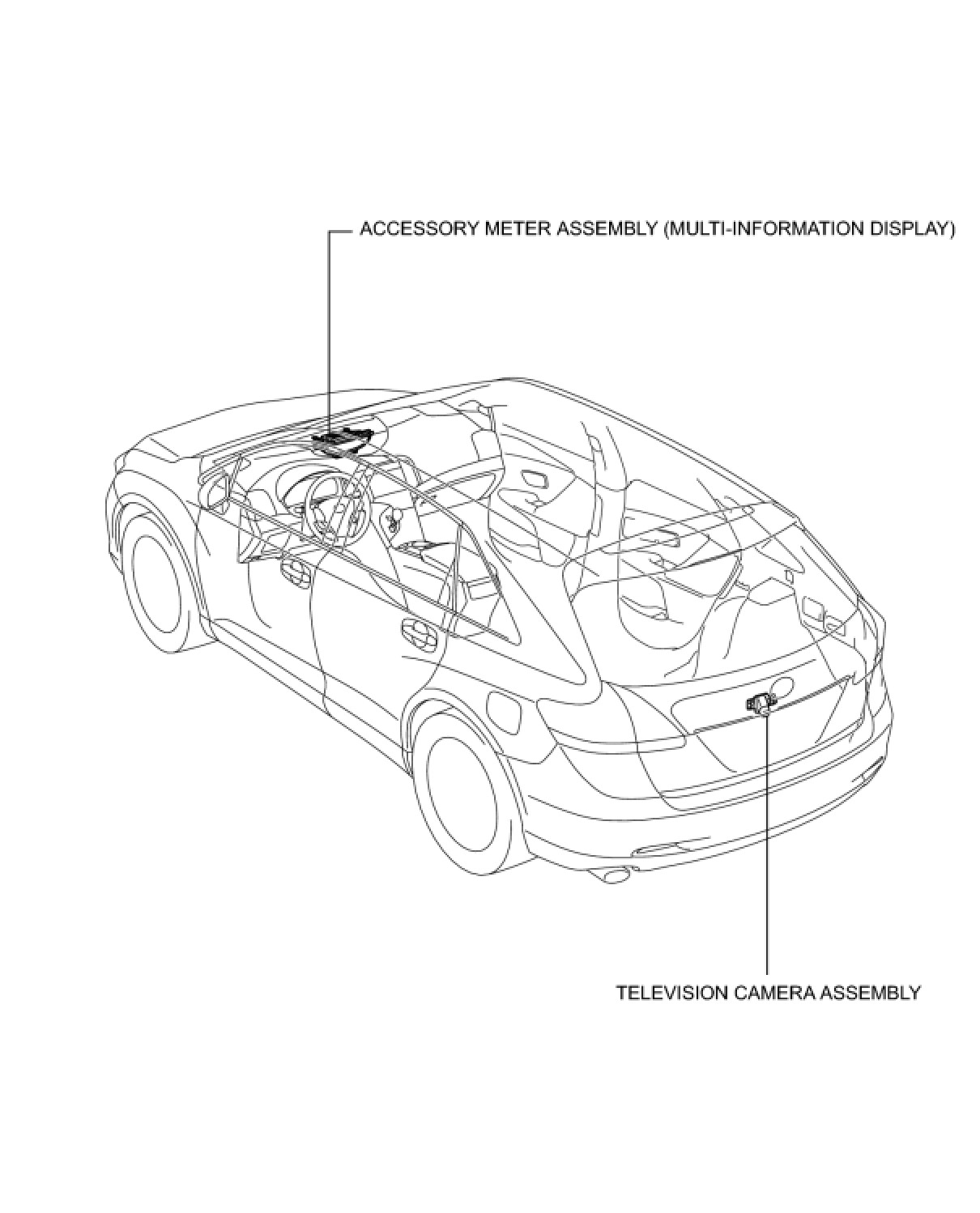

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM (w/o Navigation System): PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
