Touch Panel Switch Does Not Function

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: Touch Panel Switch does not Function

Touch Panel Switch does not Function

INSPECTION PROCEDURE

PROCEDURE

1. CHECK TOUCH PANEL
(a) Check for foreign matter on the display.
OK:
The display is clean.

NG -- CLEAN DISPLAY AND RECHECK TOUCH PANEL
OK -- Continue to next step.

2. CHECK TOUCH SWITCH (OPERATION CHECK)

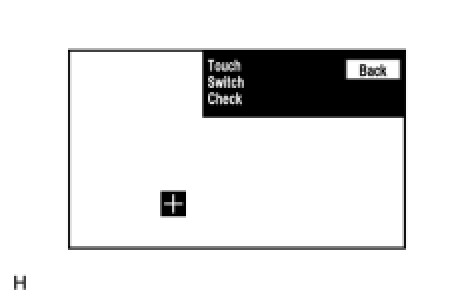

(a) Enter the "Touch Switch Check" (Check Touch Switch) Operation Check.
(b) Touch the display in the area where the switch malfunction occurs.
OK:
A "+" mark appears at the touched position.

NG -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
OK -- REPLACE NAVIGATION RECEIVER ASSEMBLY
