Disposal

DOOR / HATCH: BACK DOOR SUPPORT: DISPOSAL

DISPOSAL

1. DISPOSE OF BACK DOOR STAY ASSEMBLY
(a) Secure the back door stay assembly horizontally in a vise with the piston rod pulled out.

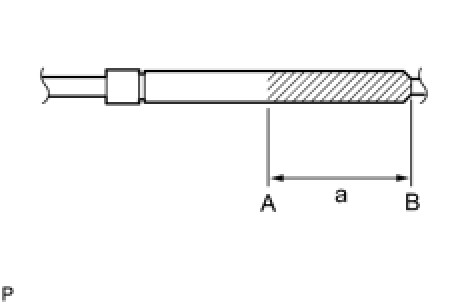

(b) Wear safety glasses. Use a metal saw to slowly cut a groove between A and B shown in the illustration to release the gas.
Standard Dimension:
a
80.0 mm (3.150 in.)
NOTICE: Although the gas inside the back door stay assembly is colorless, odorless and harmless, metal debris may scatter. Therefore, cover the back door stay assembly with a piece of cloth or other material.
