INTERIOR PANELS / TRIM: FRONT CONSOLE BOX: REASSEMBLY

REASSEMBLY

1. INSTALL REAR CONSOLE ARMREST ASSEMBLY
(a) Temporarily install the rear console armrest assembly.

(b) Push in the box door hinge shafts by hand as far as possible.

HINT:
- The illustration is for the LH side.
- Use the same procedure for the RH side and LH side.

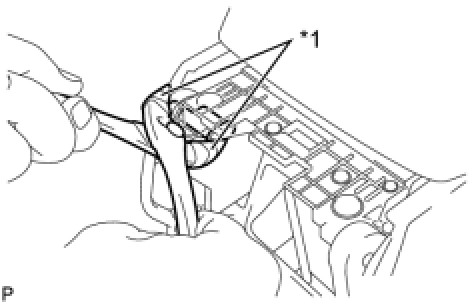

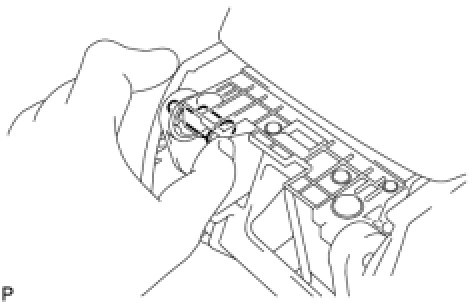

HINT:
- Tape the plier tips before use.
- The illustration is for the LH side.
- Use the same procedure for the RH side and LH side.

(d) Install the rear console armrest assembly with the 2 E-rings.
2. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY

(a) Engage the 4 clips to install the rear console end panel sub-assembly.
3. INSTALL CENTER POWER OUTLET SOCKET COVER Installation
4. INSTALL CENTER POWER POINT SOCKET ASSEMBLY Installation
5. INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY Installation
6. INSTALL CONSOLE BOX WIRE

(a) Connect the connectors to install the console box wire.

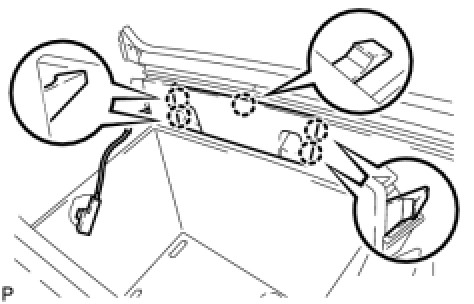

7. INSTALL CONSOLE MOUNTING RETAINER ASSEMBLY

(a) Engage the 5 claws to install the console mounting retainer assembly.
8. INSTALL NO. 2 CONSOLE BOX DUCT

(a) Install the No. 2 console box duct with the 2 screws.

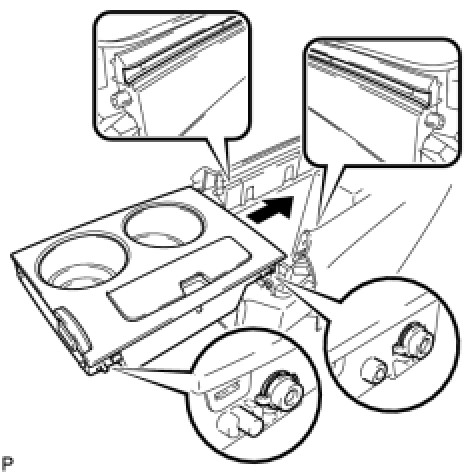

9. INSTALL REAR CONSOLE UPPER PANEL SUB-ASSEMBLY

(a) Aligning the inside groove of the front console box assembly with the rear console upper panel hinge, slide the rear console upper panel sub-assembly and install it.
10. INSTALL STEREO JACK ADAPTER ASSEMBLY Installation
11. INSTALL FRONT CONSOLE BOX COVER

(a) Engage the 2 claws.
(b) Install the front console box cover with the 3 screws.
(c) Engage the clamp.

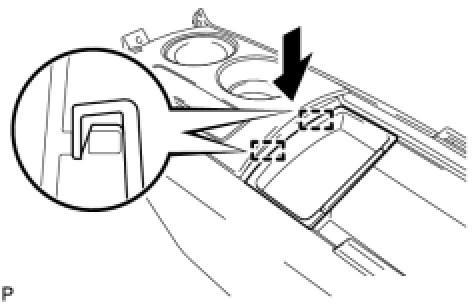

12. INSTALL CONSOLE BOX POCKET

(a) Engage the 2 guides to install the console box pocket.

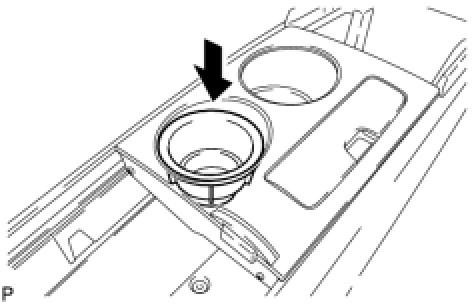

13. INSTALL INSTRUMENT PANEL CUP HOLDER DAMPER

(a) Install the instrument panel cup holder damper.

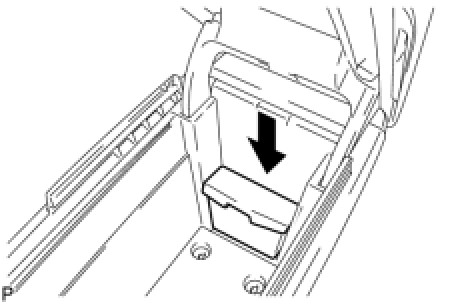

14. INSTALL CONSOLE HOLDER

(a) Install the console holder.
15. INSTALL NO. 1 CONSOLE BOX CARPET

(a) Install the No. 1 console box carpet.
