Seats: Specifications








SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

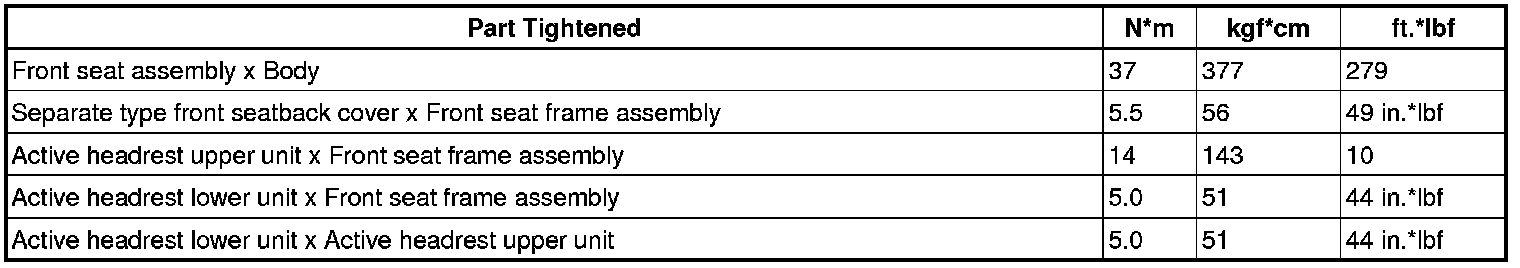

FRONT SEAT ASSEMBLY

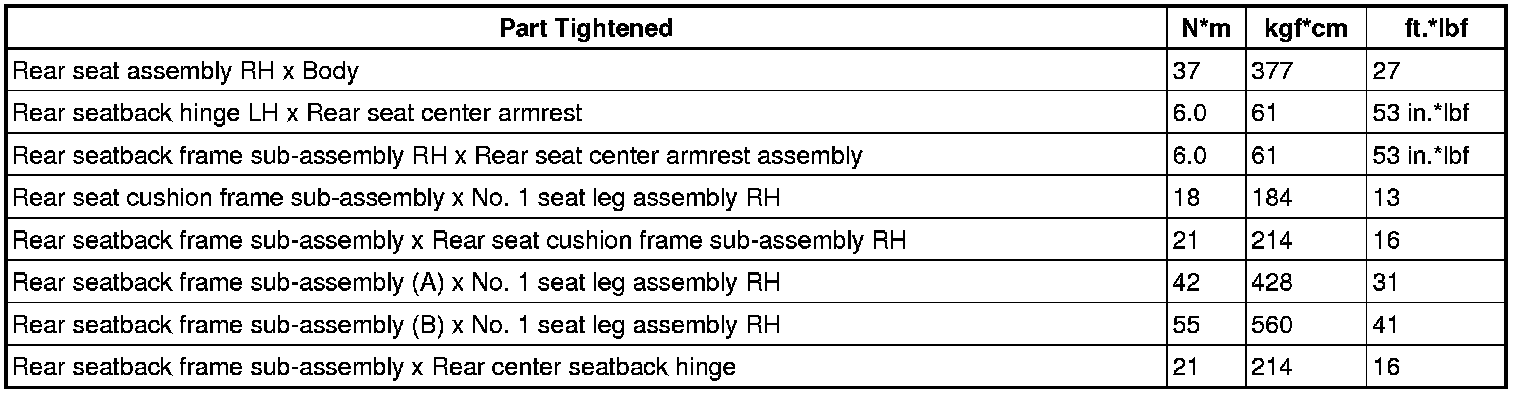

REAR SEAT ASSEMBLY (for LH Side)





REAR SEAT ASSEMBLY (for RH Side)
