Radiator Cooling Fan: Description and Operation

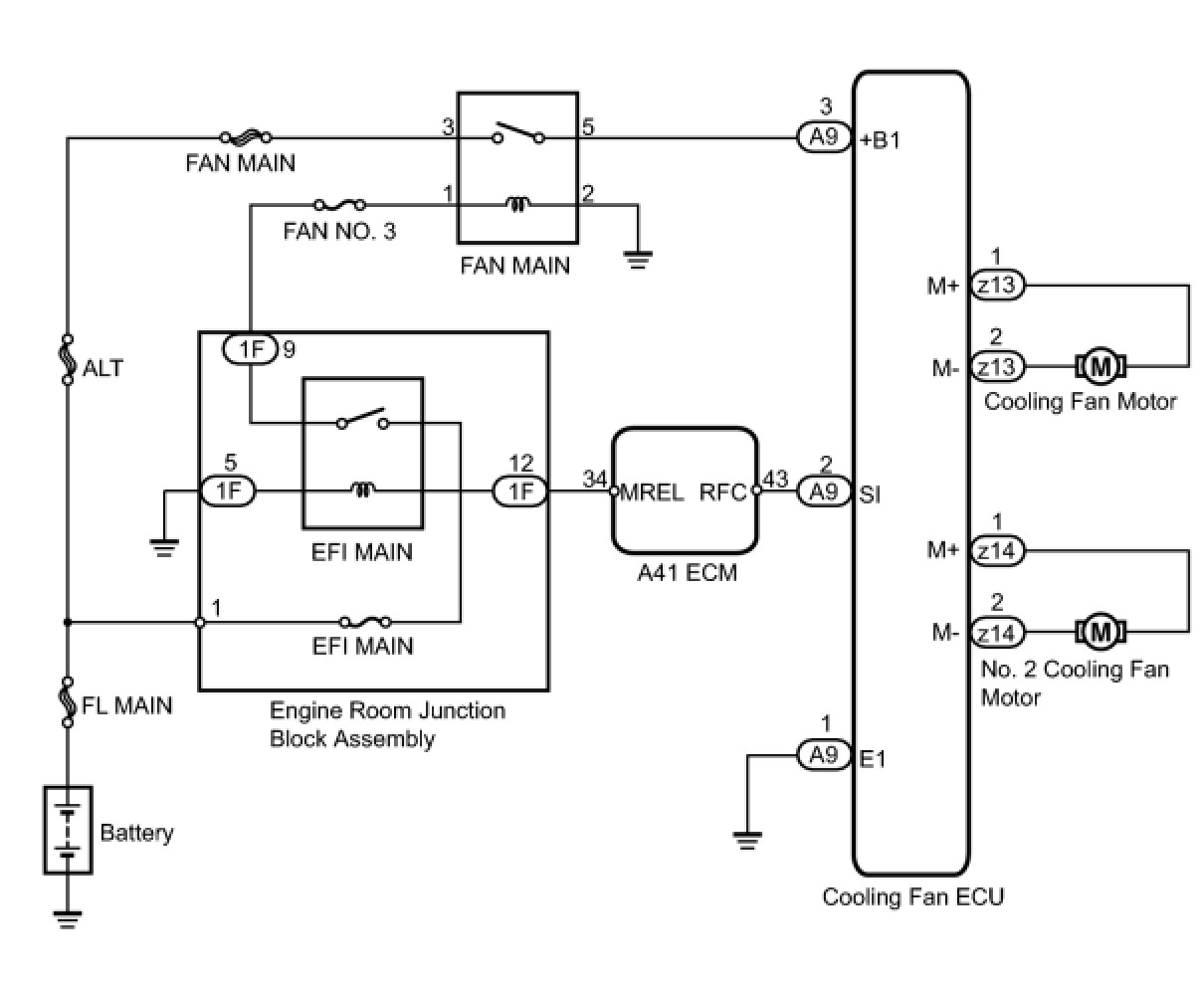

2GR-FE COOLING: COOLING FAN SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
