2GR-FE ENGINE MECHANICAL: CYLINDER BLOCK: REPLACEMENT

REPLACEMENT

1. REPLACE STRAIGHT PIN

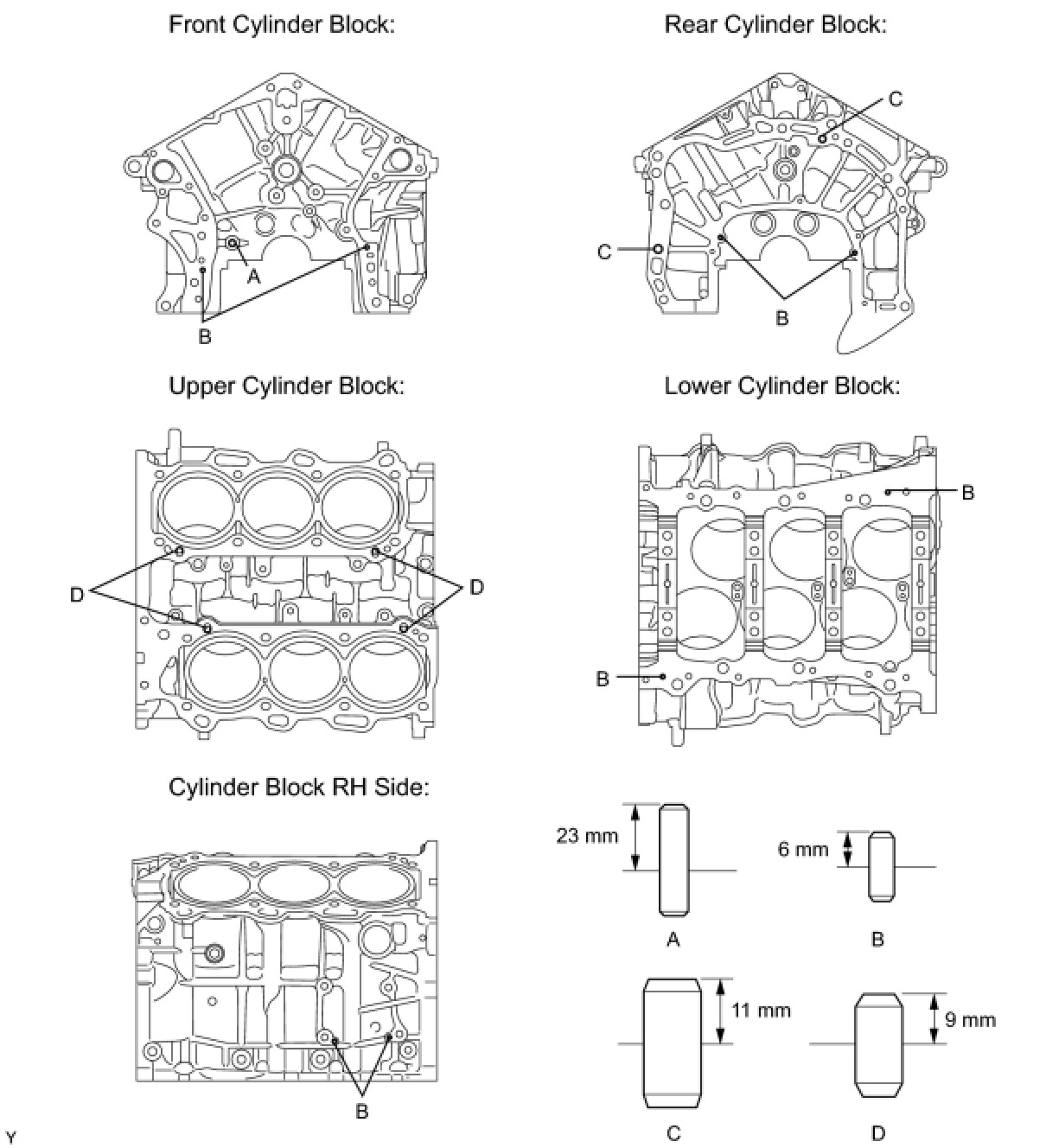

(a) Using a plastic hammer, tap in new straight pins to the cylinder block.

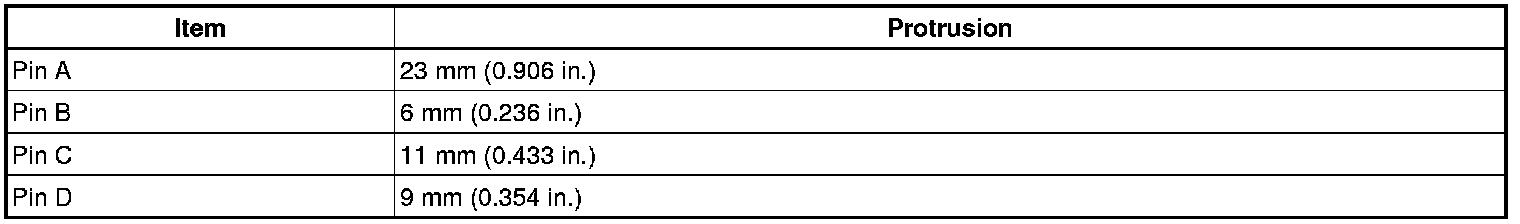

Standard Protrusion:





2. REPLACE STUD BOLT

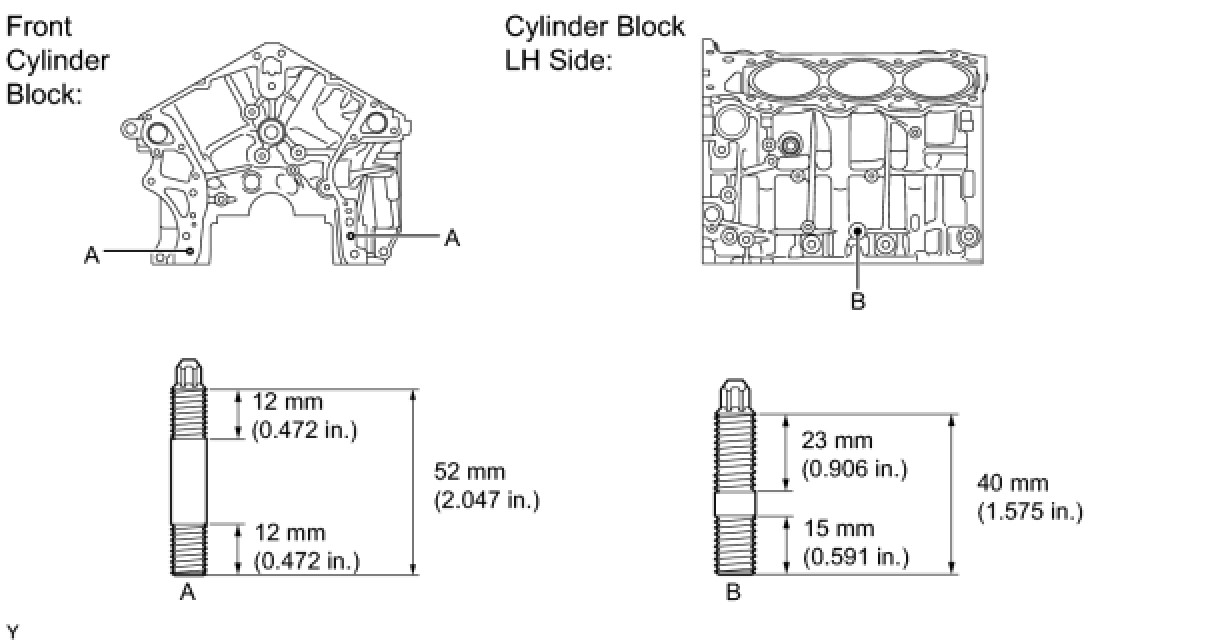

(a) Using E8 and E10 "TORX" sockets, install the stud bolts.





Bolt A - Torque: 10 Nm (102 kgf-cm, 7ft-lbf)
Bolt B - Torque: 17 Nm (173 kgf-cm, 13ft-lbf)
