Oil Cooler: Testing and Inspection

2GR-FE LUBRICATION: ENGINE OIL COOLER: INSPECTION

INSPECTION

1. INSPECT ENGINE OIL COOLER
(a) Visually check the engine oil cooler for cracks or damage.

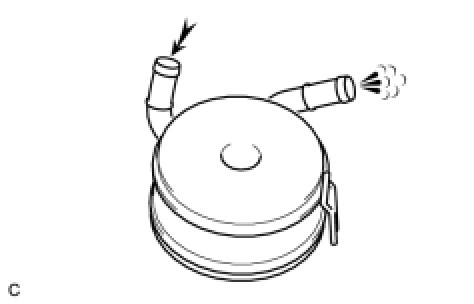

(b) Blow air into the engine oil cooler to check for clogging.
If necessary, replace the engine oil cooler.
