LIGHTING (EXT): AFS ECU: REMOVAL

REMOVAL

1. REMOVE SHIFT LEVER ASSEMBLY (for 2WD)
HINT: Refer to the procedure up to Remove Shift Lever Assembly Removal.

2. REMOVE SHIFT LEVER ASSEMBLY (for AWD)
HINT: Refer to the procedure up to Remove Shift Lever Assembly .

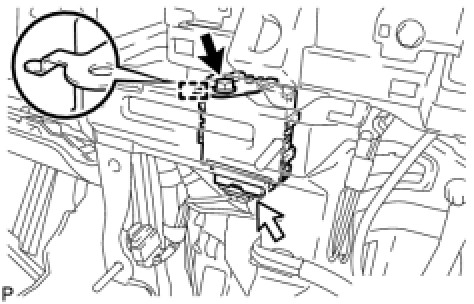

3. REMOVE AFS ECU





(a) Disconnect the connector.
(b) Remove the bolt.
(c) Disengage the guide and remove the AFS ECU.
