Inspection

TIRE / WHEEL: TIRE AND WHEEL SYSTEM: INSPECTION

INSPECTION

1. INSPECT TIRES
(a) Check the tires for wear and proper inflation pressure.

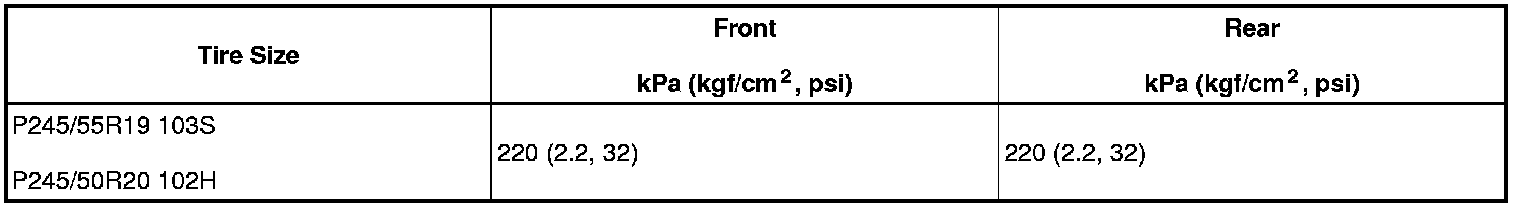

Cold Tire Inflation Pressure:









(b) Using a dial indicator, check the runout of the tires.
Maximum tire runout:
1.4 mm (0.0551 in.)
2. ROTATE TIRES

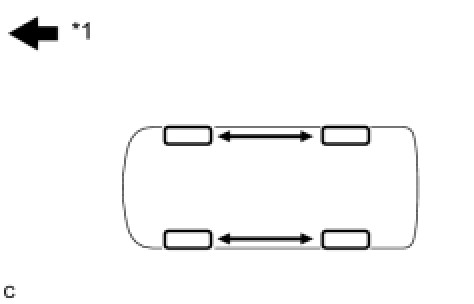

(a) Rotate the tires as shown in the illustration.

Text in Illustration





3. INSPECT WHEEL BALANCE





(a) Check and adjust the off-the-car balance.
Maximum wheel imbalance after adjustment:
8.0 g (0.0176 lb)

NOTICE:
- Use a cleaning detergent to remove dirt, oil and water from the surface where the balance weight is to be adhered.
- Do not touch the sticking surface of the tape.
- Adhere a sticking type balance weight to the flat surface (A) shown in the illustration.
Width (A):
25 mm (0.984 in.)
- Push the balance weight securely with your finger to adhere it to the position.
- Do not reuse the balance weight.
- Use the TOYOTA genuine sticking type balance weights.
HINT: The inner side balance weight should be installed by clipping it to the rim.

4. INSPECT FRONT AXLE HUB BEARING LOOSENESS
(a) Inspect the front axle hub bearing looseness .
5. INSPECT REAR AXLE HUB BEARING LOOSENESS (for 2WD)
(a) Inspect the rear axle hub bearing looseness .
6. INSPECT REAR AXLE HUB BEARING LOOSENESS (for AWD)
(a) Inspect the rear axle hub bearing looseness .
7. INSPECT FRONT AXLE HUB RUNOUT
(a) Inspect the front axle hub runout .
8. INSPECT REAR AXLE HUB RUNOUT (for 2WD)
(a) Inspect the rear axle hub runout .
9. INSPECT REAR AXLE HUB RUNOUT (for AWD)
(a) Inspect the rear axle hub runout .
