Removal

2GR-FE FUEL: FUEL PUMP RESISTOR: REMOVAL

REMOVAL

1. REMOVE FUEL PUMP RESISTER

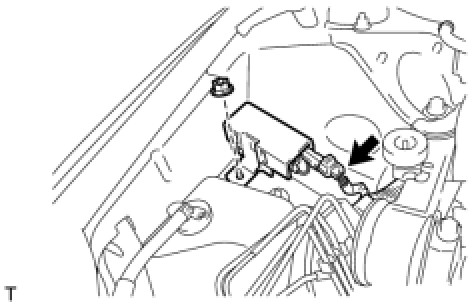

(a) Disconnect the connector.
(b) Remove the nut and the fuel pump resistor.

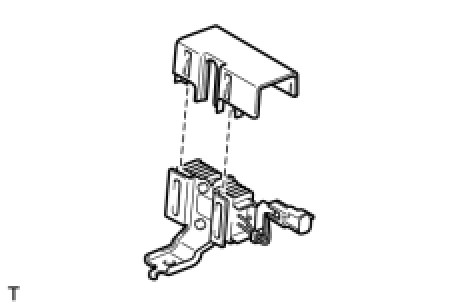

(c) Remove the fuel pump resistor cover.
