Vacuum Reservoir: Testing and Inspection

2GR-FE INTAKE / EXHAUST: VACUUM TANK: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT AIR CLEANER CAP SUB-ASSEMBLY





(a) Check that air flows from port B to port A.

Text in Illustration

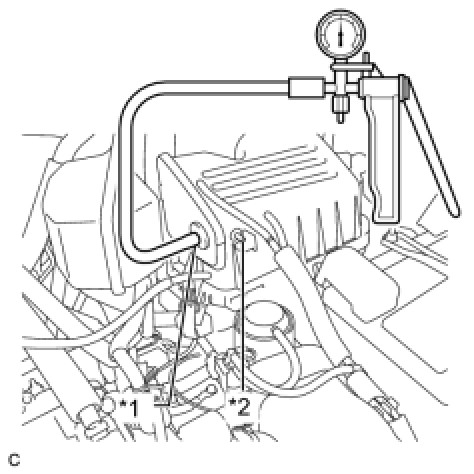

(b) Apply 60 kPa (450 mmHg, 17.7 in. Hg) of vacuum to port A. Check that there is no change in vacuum after one minute.
If the operation is not as specified, replace the air cleaner cap sub-assembly.
