Curtain Shield Airbag Assembly

SUPPLEMENTAL RESTRAINT SYSTEMS: CURTAIN SHIELD AIRBAG ASSEMBLY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION
CAUTION: Be sure to follow the correct removal and installation procedures of the curtain shield airbag assembly.

1. INSPECT CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)
(a) Perform a diagnostic system check DTC Check / Clear.

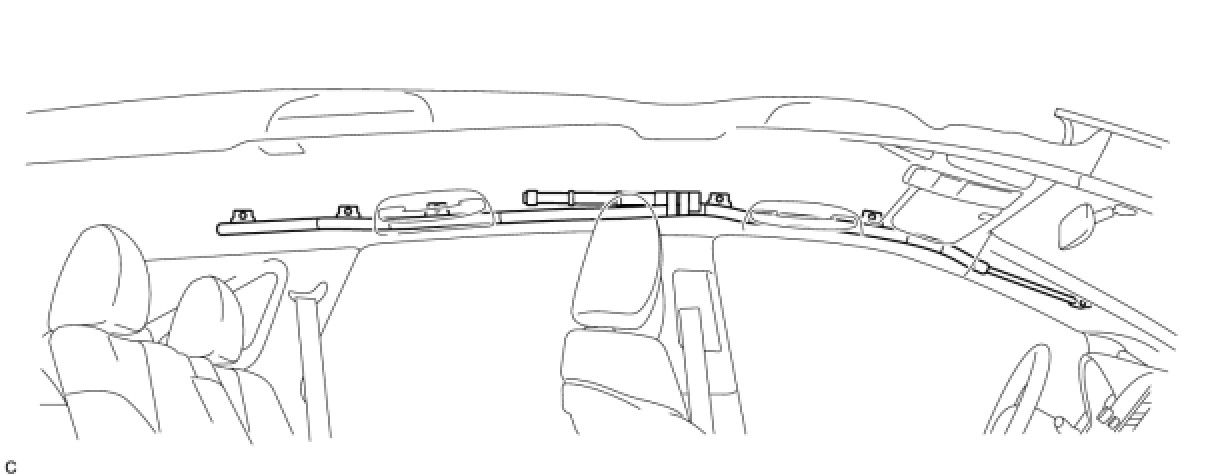

(b) Visually check for defects with the curtain shield airbag assembly installed on the vehicle.




(1) The defects are as follows:

- Cuts on the front pillar garnish or roof headlining assembly around the curtain shield airbag assembly
- Small cracks on the front pillar garnish or roof headlining assembly around the curtain shield airbag assembly
- Significant discoloration on the front pillar garnish or roof headlining assembly around the curtain shield airbag assembly

OK:
No defects are found.
HINT: If any of the defects is found, replace the front pillar garnish or roof headlining assembly with a new one.

2. INSPECT CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)
(a) Perform a diagnostic system check DTC Check / Clear.

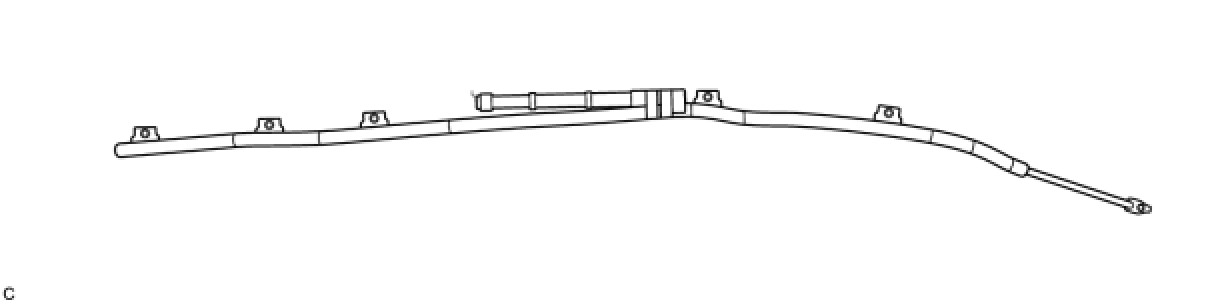

(b) Visually check for defects with the curtain shield airbag assembly removed from the vehicle.




(1) The defects are as follows:

- Cuts on the curtain shield airbag assembly
- Small cracks on the curtain shield airbag assembly
- Significant discoloration on the curtain shield airbag assembly
- Cracks or other damage to the connector

OK:
No defects are found.
HINT: If any of the defects is found, replace the curtain shield airbag assembly with a new one.
