Installation

SEAT BELT: REAR CENTER SEAT INNER BELT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL REAR CENTER SEAT INNER BELT ASSEMBLY

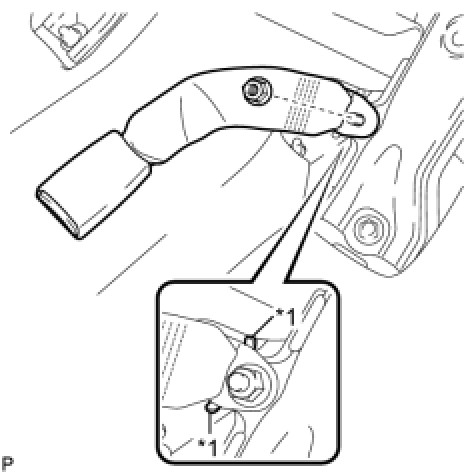

(a) Install the rear center seat inner belt assembly with the nut.

Text in Illustration





Torque: 42 Nm (428 kgf-cm, 31ft-lbf)
NOTICE: Do not allow the anchor part of the rear seat outer belt assembly to overlap the protruding part of the floor panel.

2. INSTALL REAR SEAT ASSEMBLY LH Installation
3. CONNECT REAR SEAT NO. 2 RECLINING CONTROL CABLE SUB-ASSEMBLY Installation
4. INSTALL REAR SEAT INNER TRACK BRACKET COVER Installation
5. INSTALL REAR SEAT OUTER TRACK BRACKET COVER Installation
6. INSTALL REAR SEAT HEADREST ASSEMBLY Installation
