Starting System: Description and Operation

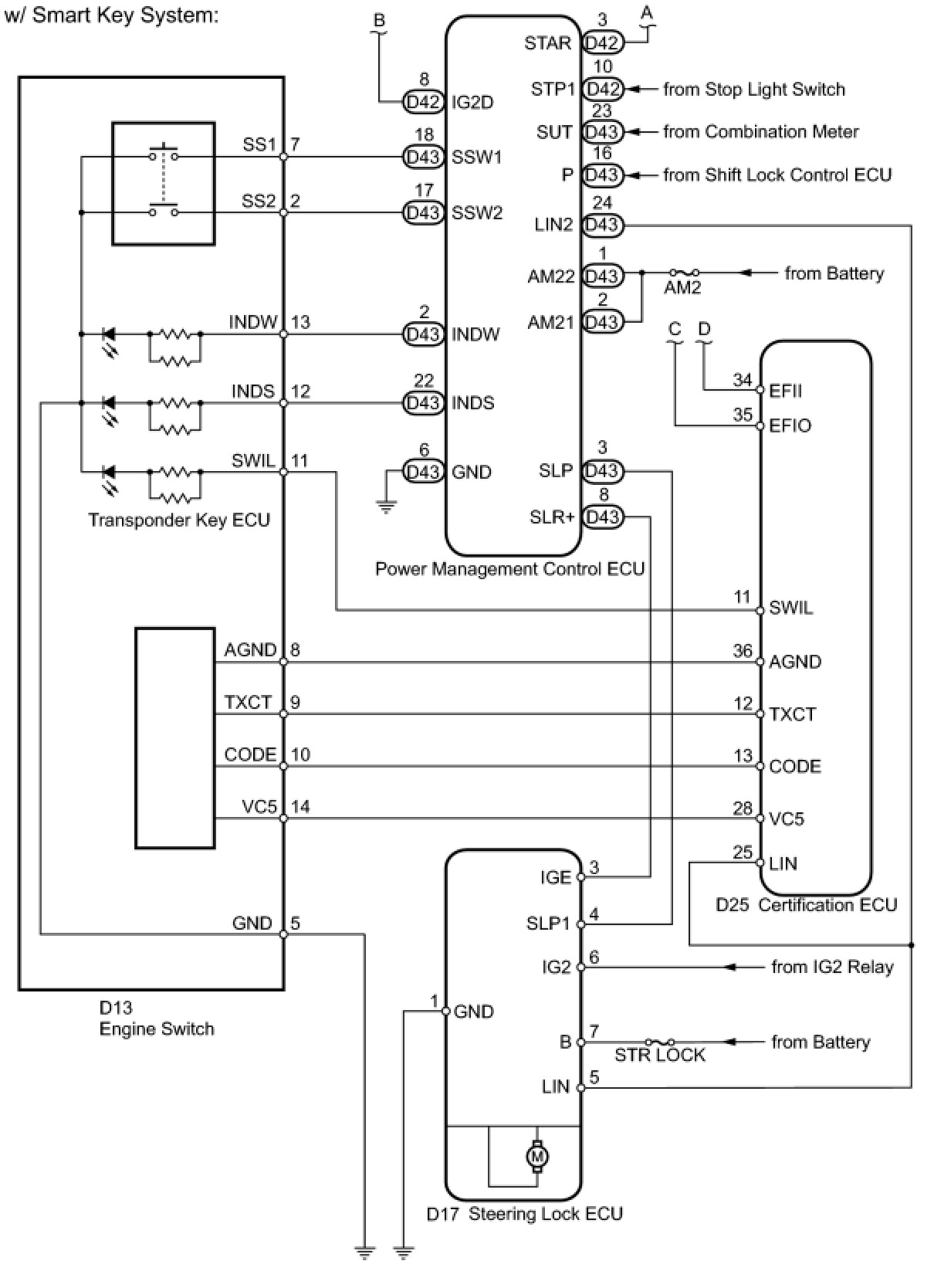

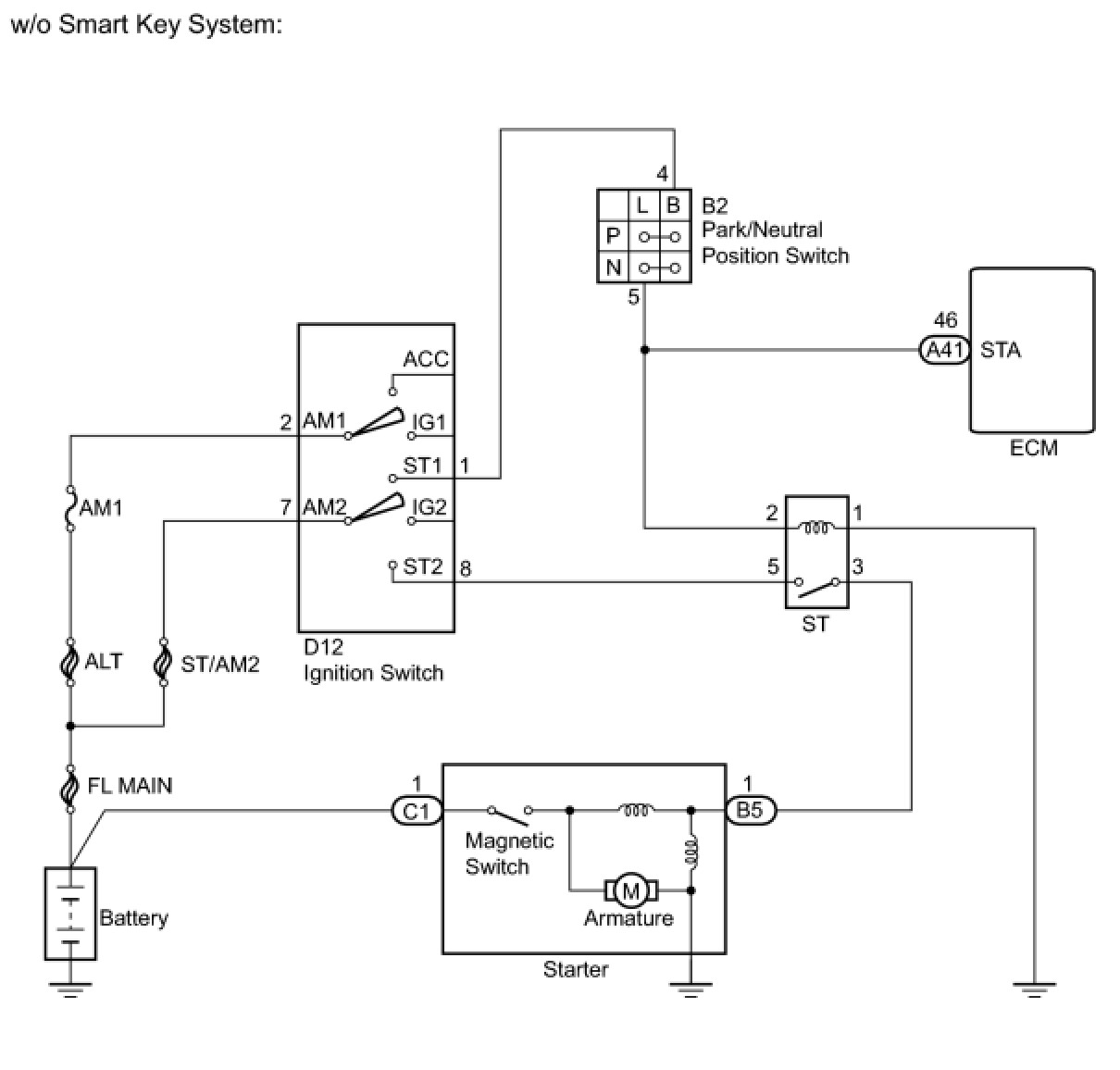

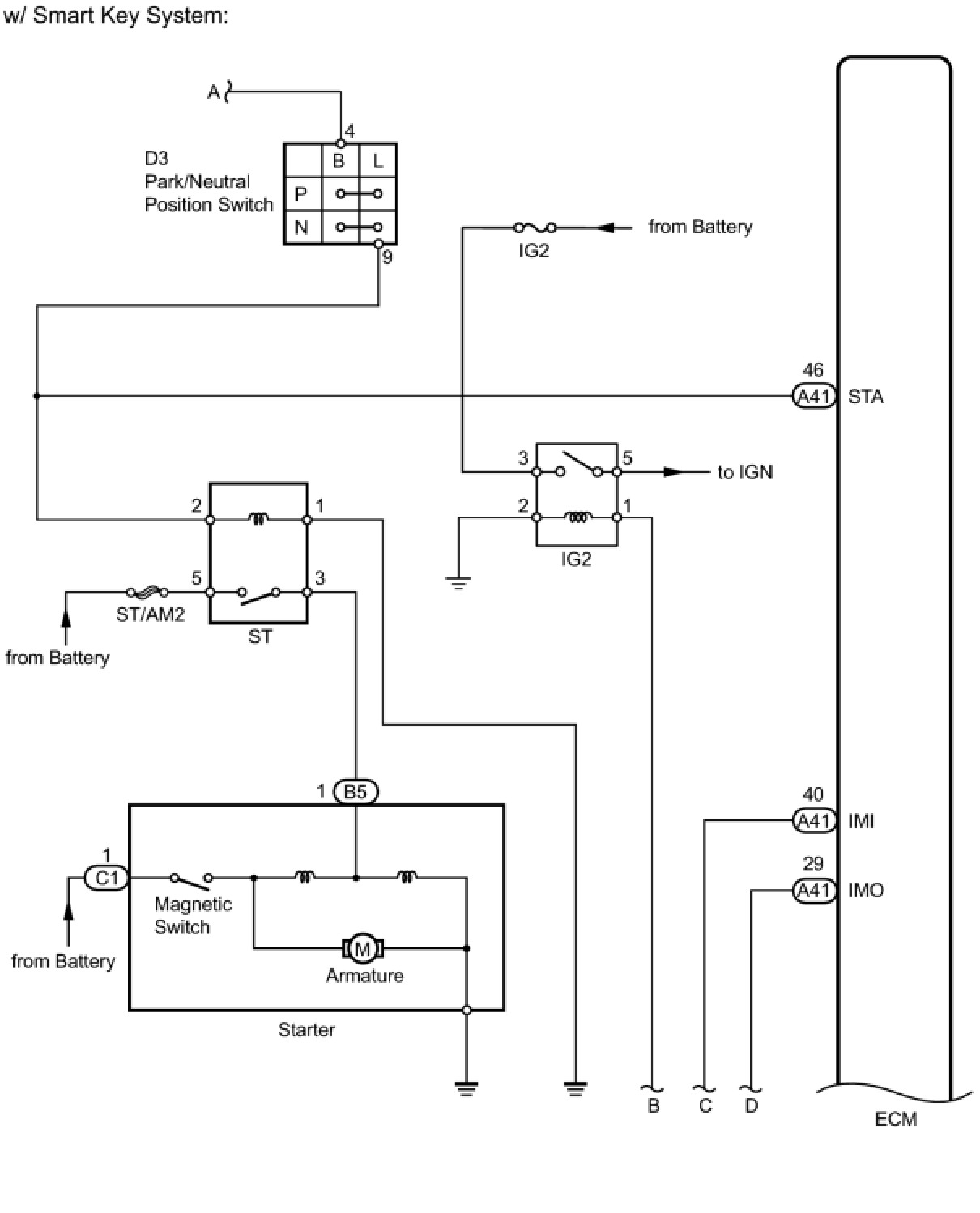

2GR-FE STARTING: STARTING SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
