Installation

FRONT SUSPENSION: FRONT STABILIZER BAR (for 2GR-FE): INSTALLATION

INSTALLATION

1. INSTALL FRONT NO. 1 STABILIZER BAR BUSHING





(a) Install the 2 front No. 1 stabilizer bar bushings to the front stabilizer bar as shown in the illustration.

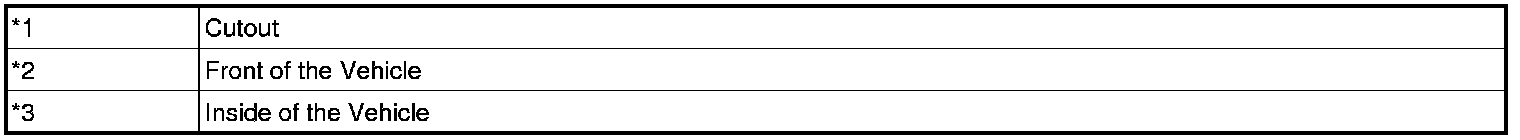

Text in Illustration





NOTICE: When installing the front No. 1 stabilizer bar bushings, make sure that the cutout faces the rear of the vehicle.

2. INSTALL FRONT NO. 2 STABILIZER BRACKET LH





(a) Install the front No. 2 stabilizer bracket LH to the front No. 1 stabilizer bar bushing.
3. INSTALL FRONT NO. 2 STABILIZER BRACKET RH
HINT: Perform the same procedure as the LH side.

4. INSTALL FRONT STABILIZER BAR
(a) Install the front stabilizer bar to the front frame assembly.
5. INSTALL FRONT NO. 1 STABILIZER BRACKET LH





(a) Install the front No. 1 stabilizer bracket LH to the front frame assembly with the 2 bolts.
Torque: 29 Nm (296 kgf-cm, 21ft-lbf)
6. INSTALL FRONT NO. 1 STABILIZER BRACKET RH
HINT: Perform the same procedure as the LH side.

7. INSTALL FRONT STABILIZER LINK ASSEMBLY LH





(a) Install the front stabilizer link assembly LH with the nut.
Torque: 74 Nm (755 kgf-cm, 55ft-lbf)
HINT: If the ball joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud bolt.

8. INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT: Perform the same procedure as the LH side.

9. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
HINT: Refer to the procedure form Install Engine Assembly with Transaxle Installation.
