Reassembly

U660E AUTOMATIC TRANSMISSION / TRANSAXLE: OIL PUMP: REASSEMBLY

REASSEMBLY

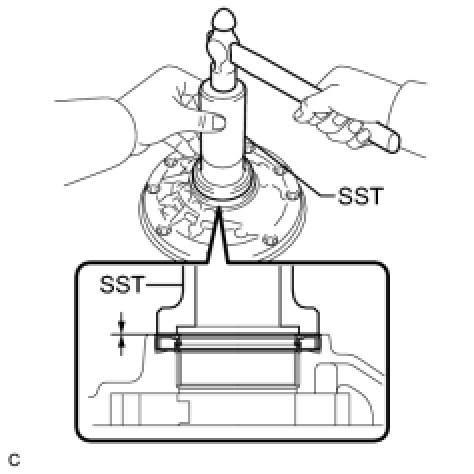

1. INSTALL FRONT OIL PUMP OIL SEAL





(a) Using SST and a hammer, install a new oil seal to the oil pump body.
SST: 09350-32014
09351-32140
Oil seal driven in depth:
-0.25 to 0.25 mm (-0.00984 to 0.00984 in.)
(b) Coat the lip of the oil seal with MP grease.

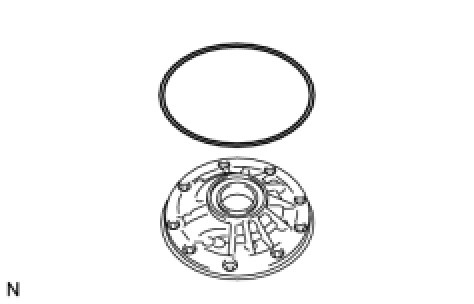

2. INSTALL FRONT OIL PUMP BODY O-RING





(a) Coat a new O-ring with ATF and install it to the oil pump body.
NOTICE: Ensure that the O-ring is not twisted.

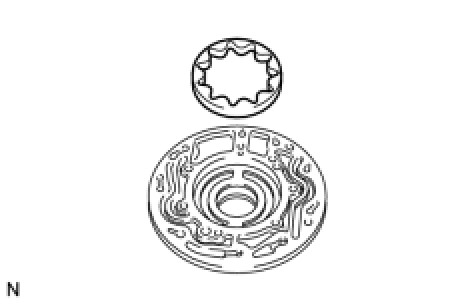

3. INSTALL FRONT OIL PUMP DRIVEN GEAR





(a) Coat the front oil pump driven gear with ATF and install it to the oil pump body with the marked side up.

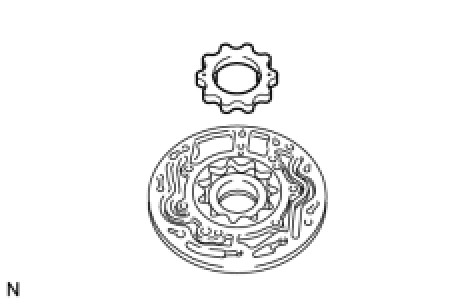

4. INSTALL FRONT OIL PUMP DRIVE GEAR





(a) Coat the front oil pump drive gear with ATF, and install it to the oil pump body with the marked side up.
5. INSTALL STATOR SHAFT ASSEMBLY





(a) Align each knock pin of the stator shaft with the holes in the oil pump body and install the stator shaft to the oil pump body.

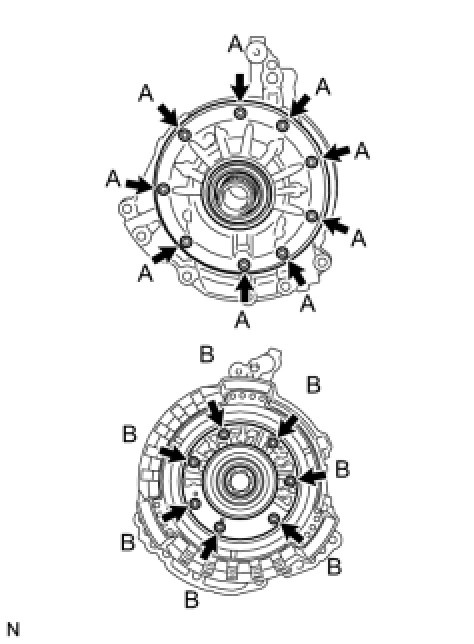

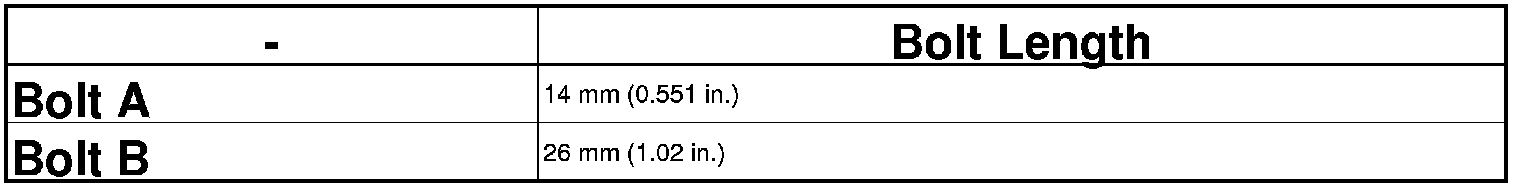

(b) Using a "TORX" socket (T30), install the 16 bolts.
Torque: 9.3 Nm (95 kgf-cm, 82in-lbf)





6. INSPECT FRONT OIL PUMP AND GEAR BODY SUB-ASSEMBLY Oil Pump
