U660E Automatic Transaxle

U660E AUTOMATIC TRANSMISSION / TRANSAXLE: SHIFT LEVER: INSPECTION

INSPECTION

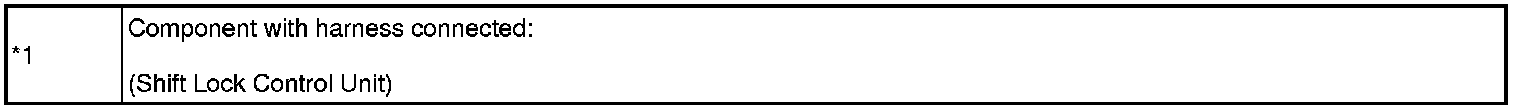

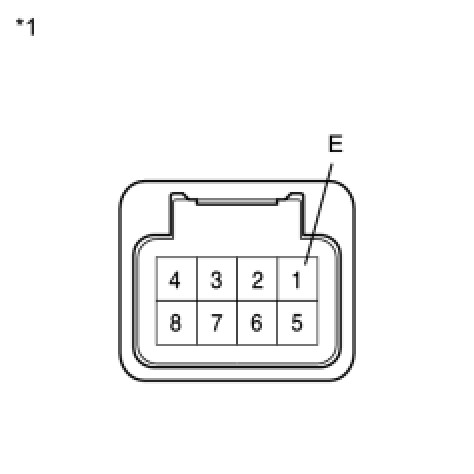

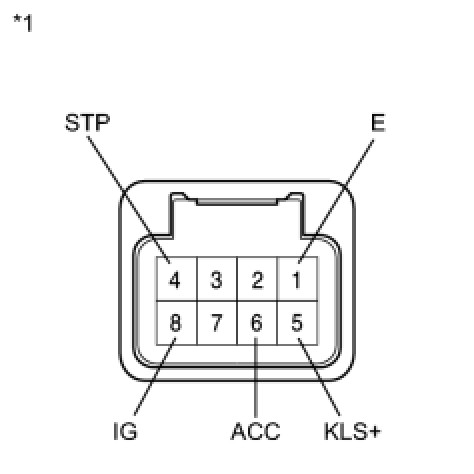

1. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY (w/o Smart Key System)

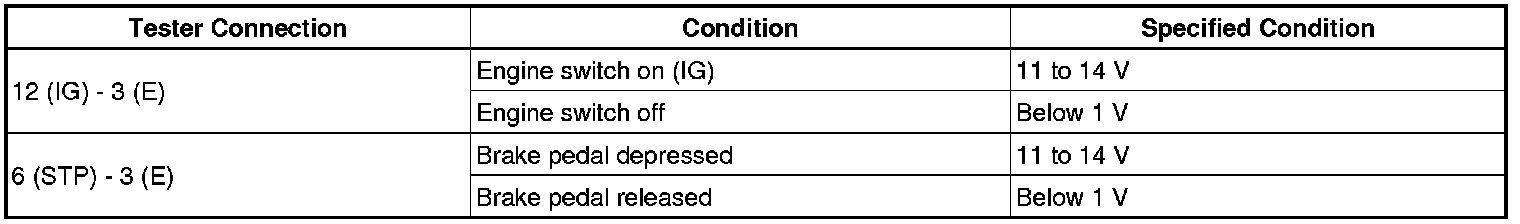

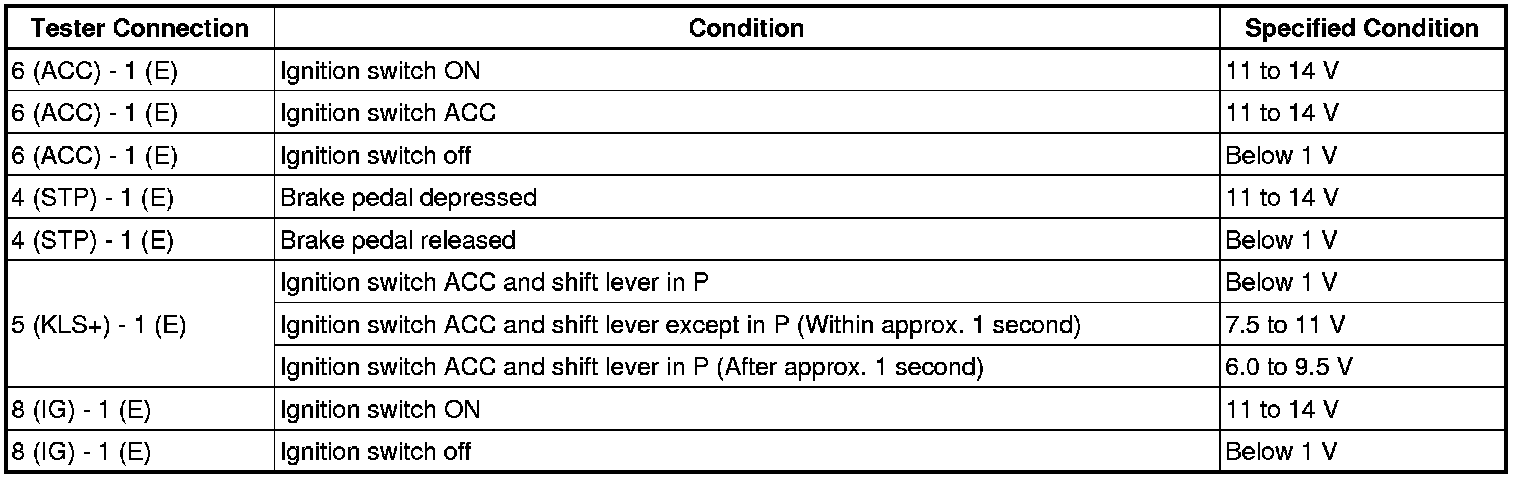

(a) Measure the voltage according to the value(s) in the table below.

Test in Illustration

Standard Voltage:

HINT: Do not disconnect the shift lock control unit assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Test in Illustration

Standard Resistance:

HINT: Do not disconnect the shift lock control unit assembly connector.
If the result is not as specified, replace the shift lever assembly.

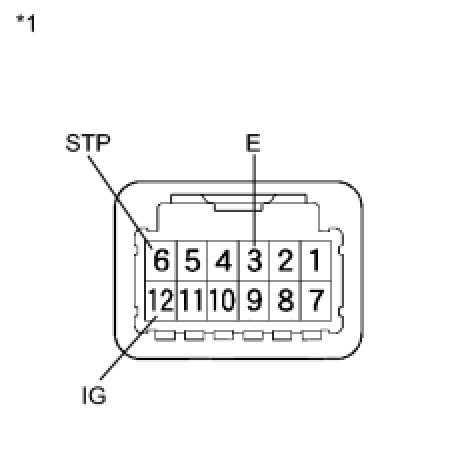

2. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY (w/ Smart Key System)

(a) Measure the voltage according to the value(s) in the table below.

Test in Illustration

Standard Voltage:

HINT: Do not disconnect the shift lock control unit assembly connector.
If the result is not as specified, replace the shift lock control unit assembly.

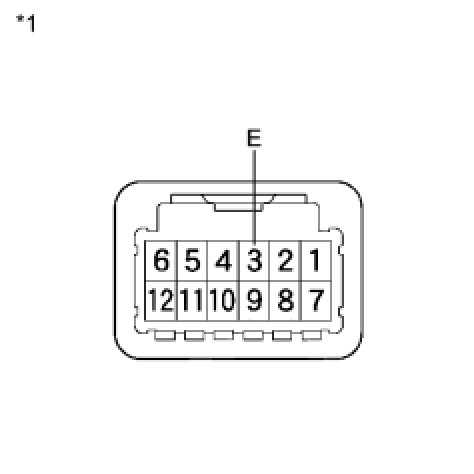

(b) Measure the resistance according to the value(s) in the table below.

Test in Illustration

Standard Resistance:

HINT: Do not disconnect the shift lock control unit assembly connector.
If the result is not as specified, replace the shift lock control unit assembly.

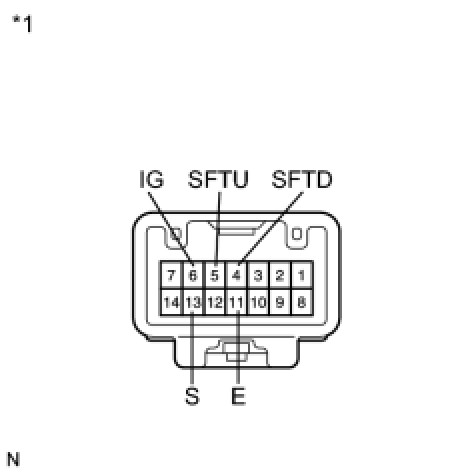

3. INSPECT TRANSMISSION CONTROL SWITCH

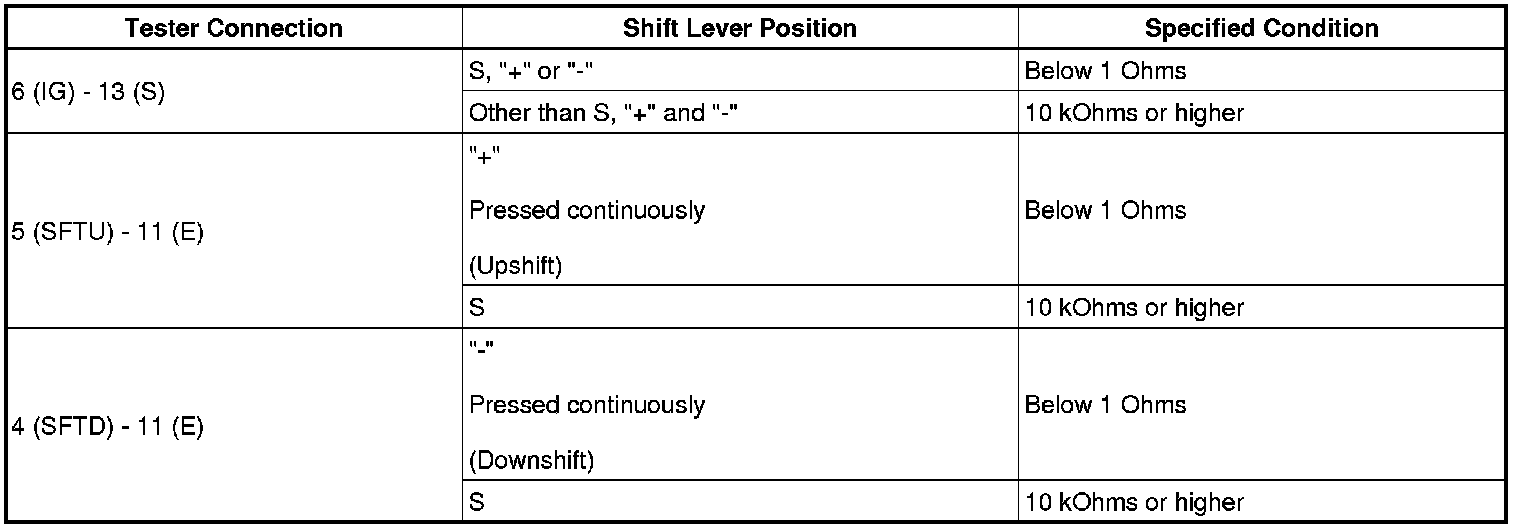

(a) Measure the resistance between each terminal of the shift lock control unit assembly when the shift lever is moved to each position.

Test in Illustration

Standard Resistance:

If the result is not as specified, replace the shift lock control unit assembly.

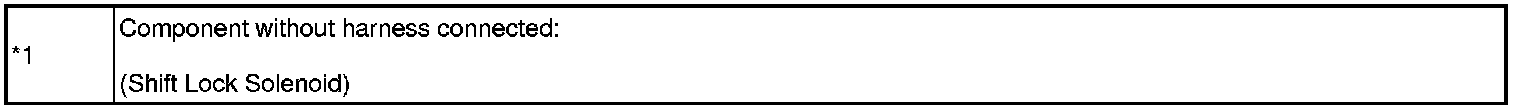

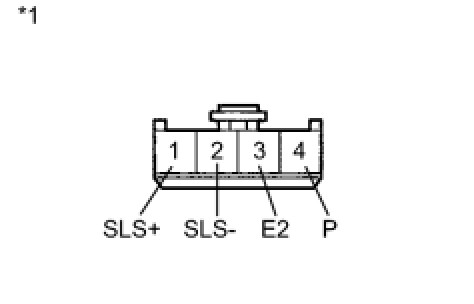

4. INSPECT SHIFT LOCK SOLENOID
(a) Disconnect the shift lock solenoid connector.

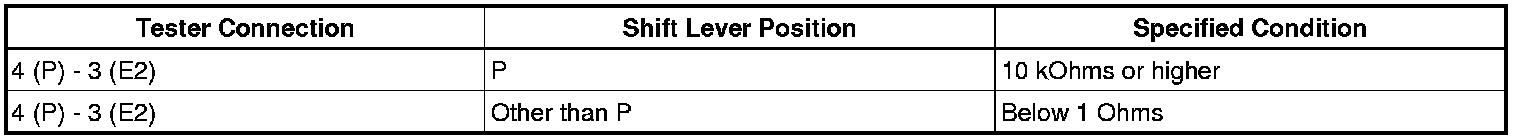

(b) Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

Test in Illustration

Standard Resistance:

If the result is not as specified, replace the shift lock control unit assembly.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

If the result is not as specified, replace the shift lock control unit assembly.
