BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM (for Hatchback): C1428: Motor Circuit Malfunction

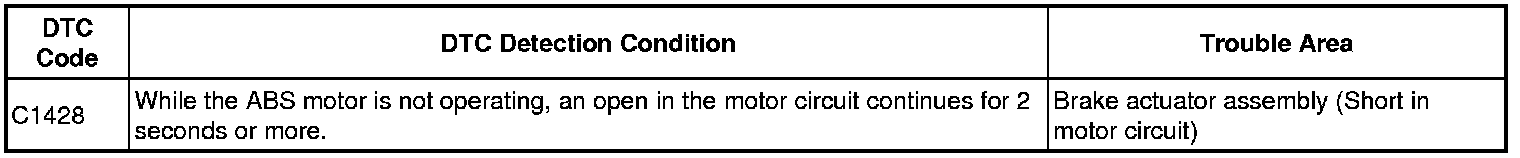

DTC C1428 - Motor Circuit Malfunction

DESCRIPTION





WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. RECONFIRM DTC
HINT: This code is detected when a problem is identified in the brake actuator assembly.
The ABS motor relay is in the brake actuator assembly.
Therefore, ABS motor relay inspection and motor relay unit inspection cannot be performed. Be sure to check if the DTC in output before replacing the brake actuator assembly.
(a) Turn the ignition switch off.
(b) Reconnect the skid control ECU connector.
(c) Clear the DTC ABS (Antilock Brake System) (for Hatchback).
(d) Start the engine.
(e) Drive the vehicle at a speed of 20 km/h (12 mph) or more for 30 seconds or more.
(f) Check if the same DTC is recorded ABS (Antilock Brake System) (for Hatchback).

Result





HINT:
- If a speed signal of 6 km/h (4 mph) or more is input to the skid control ECU, with the ignition switch ON and the stop light switch off, the ECU performs self diagnosis of the motor and solenoid circuits.
- If a normal system code is output (the trouble code is not output), slightly jiggle the connectors, wire harness, and fuses of the brake actuator assembly. Make sure that no DTCs are output.
- If any DTCs are output while jiggling a connector or wire harness from the brake actuator assembly (skid control ECU), inspect and repair the connector or wire harness. The DTCs were possibly output due to a bad connection of the connector terminal.

B -- REPLACE BRAKE ACTUATOR ASSEMBLY
A -- CHECK FOR INTERMITTENT PROBLEMS (SYMPTOM SIMULATION)
