ABS (Antilock Brake System) (for Hatchback)

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM (for Hatchback): DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
NOTE: Turn the ignition switch off before removing parts.
HINT:
- If no abnormality is found when inspecting parts, inspect the skid control ECU and ground points for poor contact.
- If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC.
- When 2 or more DTCs are detected, perform circuit inspection one by one until the problem is identified.
- Inspect the fuse and relay before investigating the trouble areas as shown in the table below.

DTC Chart of ABS

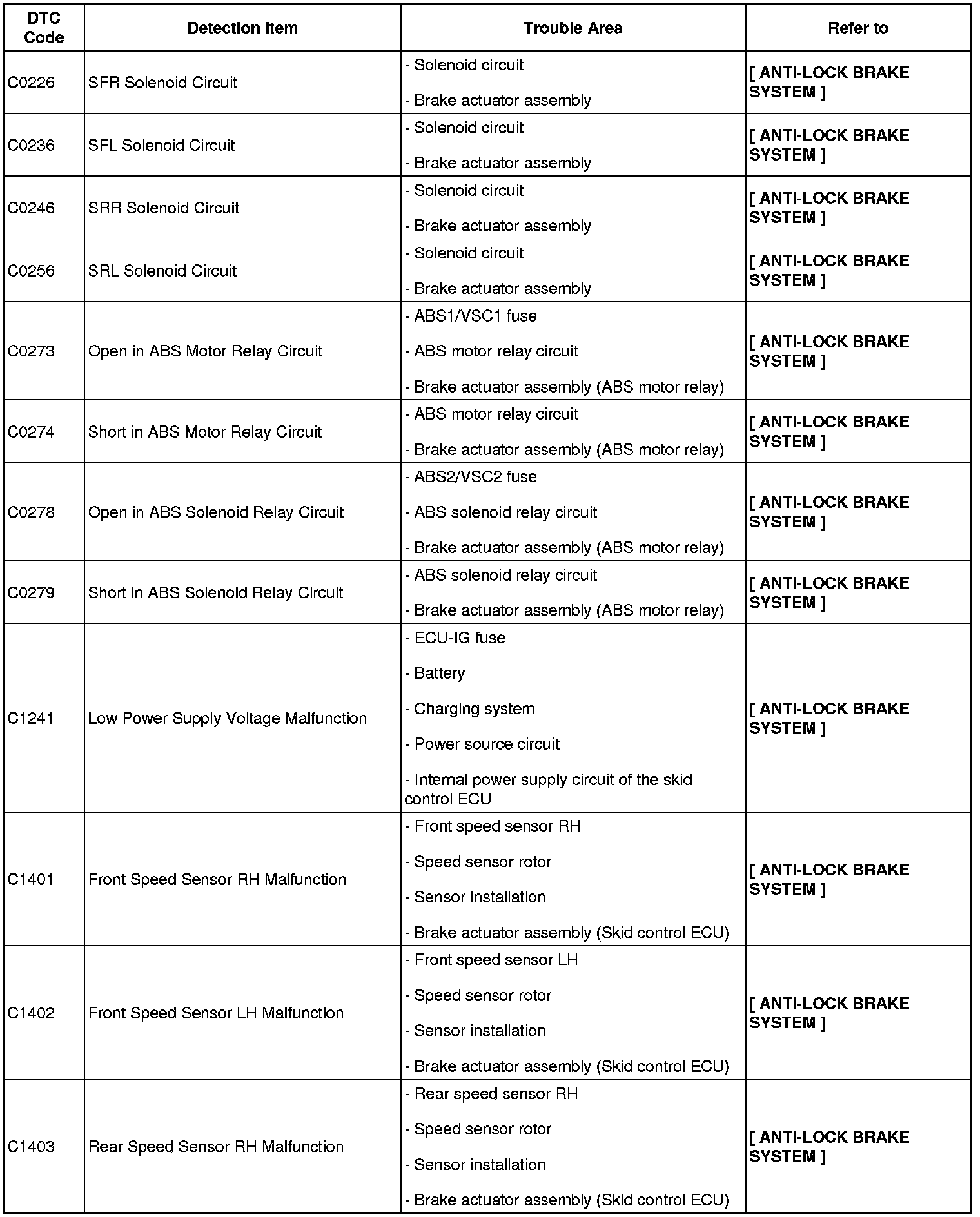

C0226 - C1403:

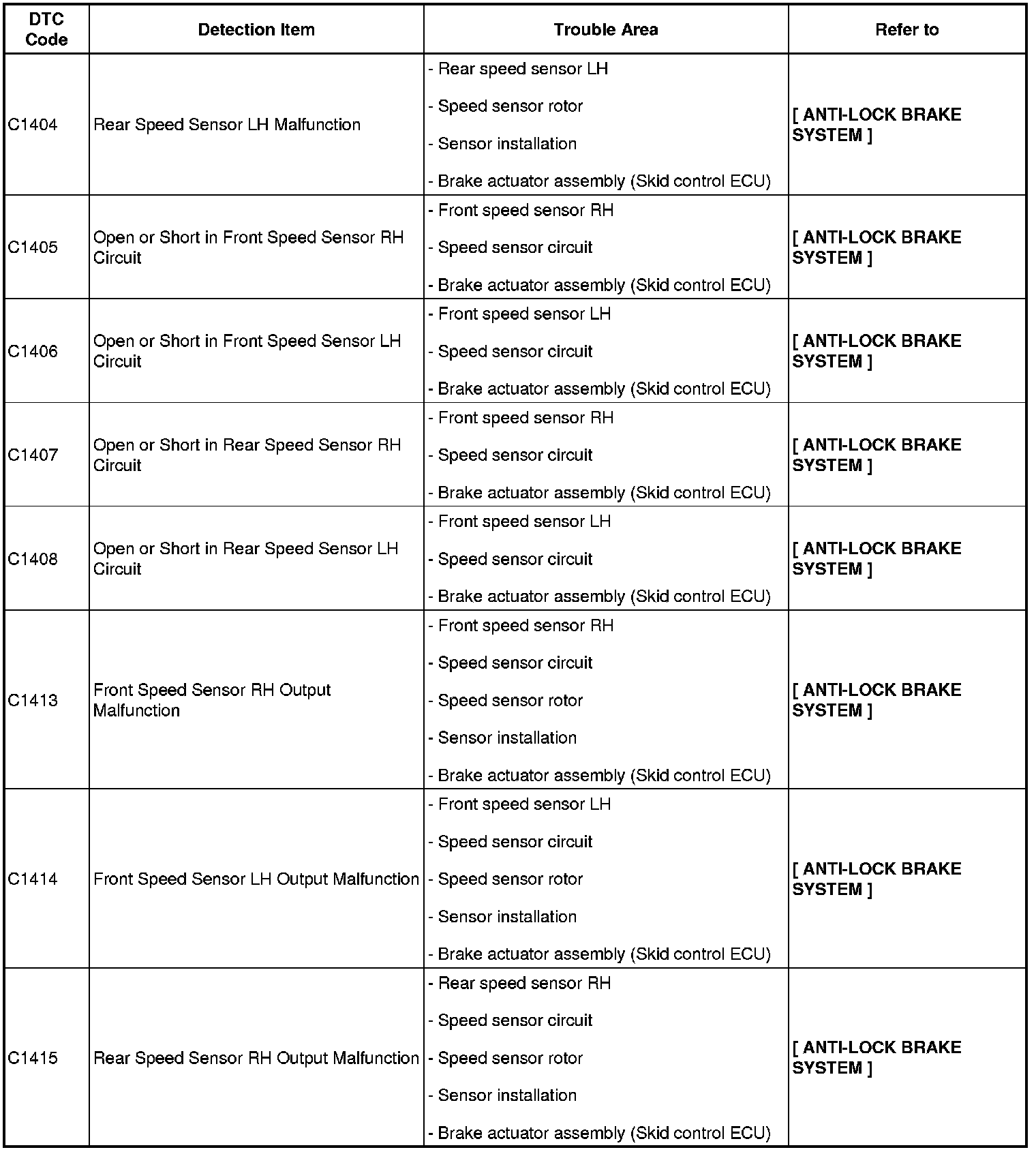

C1404 - C1415:

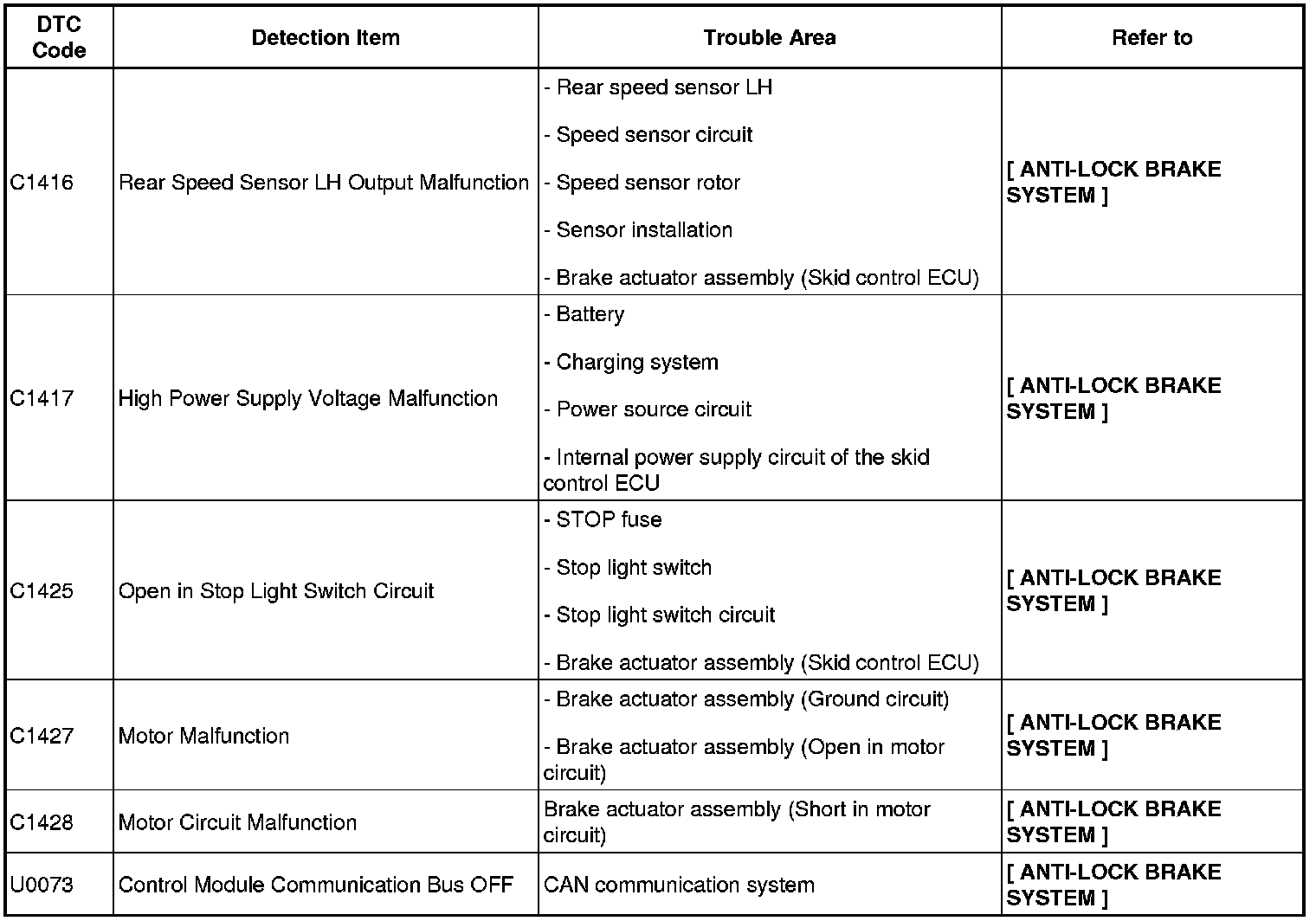

C1416 - C1428 / U0073:

*: Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed:

- Drive the vehicle at 20 km/h (12 mph) for 30 seconds or more and check that the ABS warning light goes off.
- Clear the DTC.
HINT: In some cases, the Techstream cannot be used when the ABS warning light remains on.
