ABS (Antilock Brake System) (for Sedan)
BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM (for Sedan): DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART
NOTE: When replacing any parts, turn the ignition switch off.
HINT:
- If no abnormality is found when inspecting parts, check the skid control ECU and check for poor contact at ground points.
- If a DTC is displayed during the DTC check, check the circuit for the DTC listed in the table below.
- When 2 or more DTCs are detected, perform circuit inspections one by one until the problem is identified.
- All DTCs in the table below are detected in accordance with 1 trip detection logic.
DTC chart:

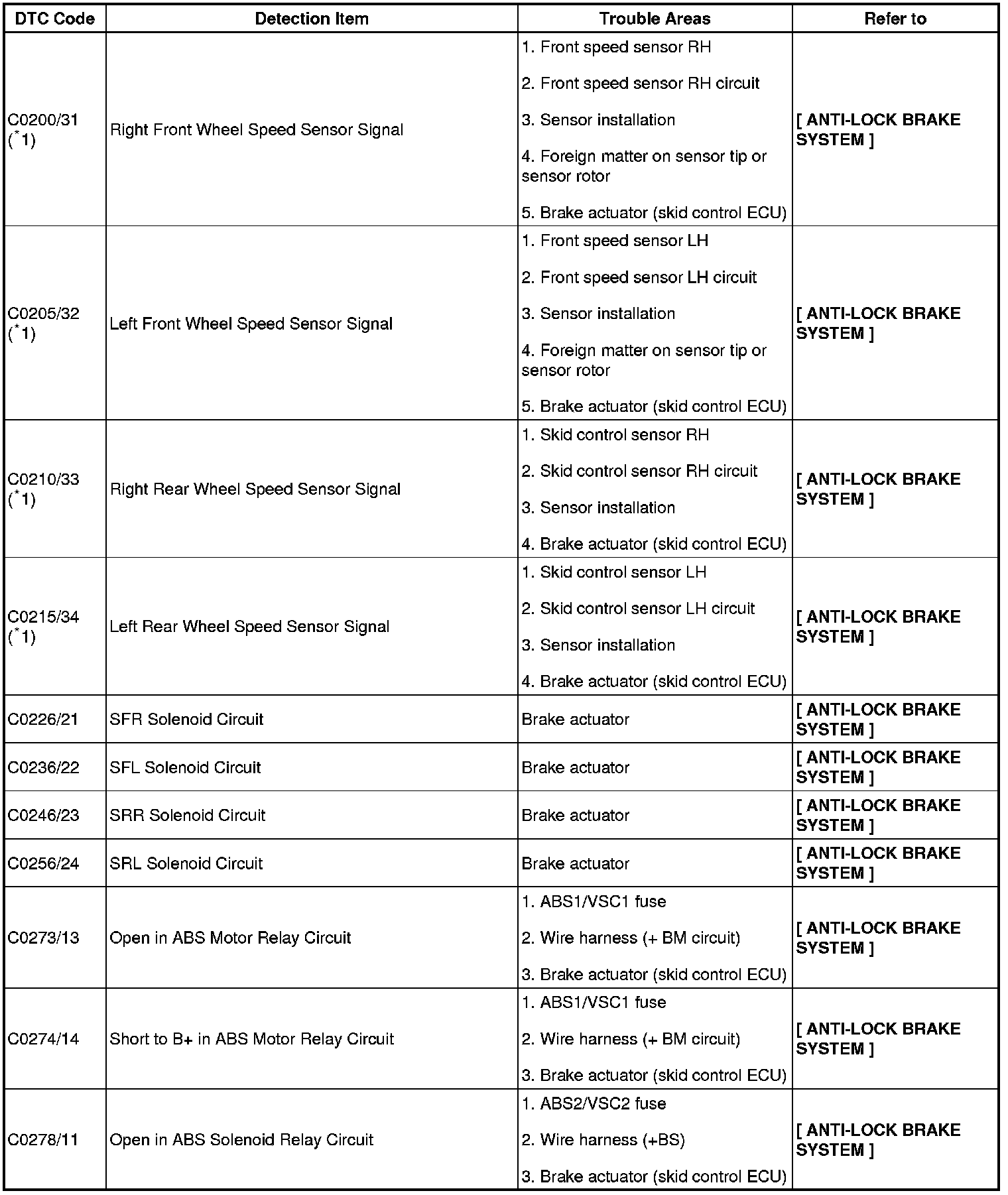

C0200 - C0278:

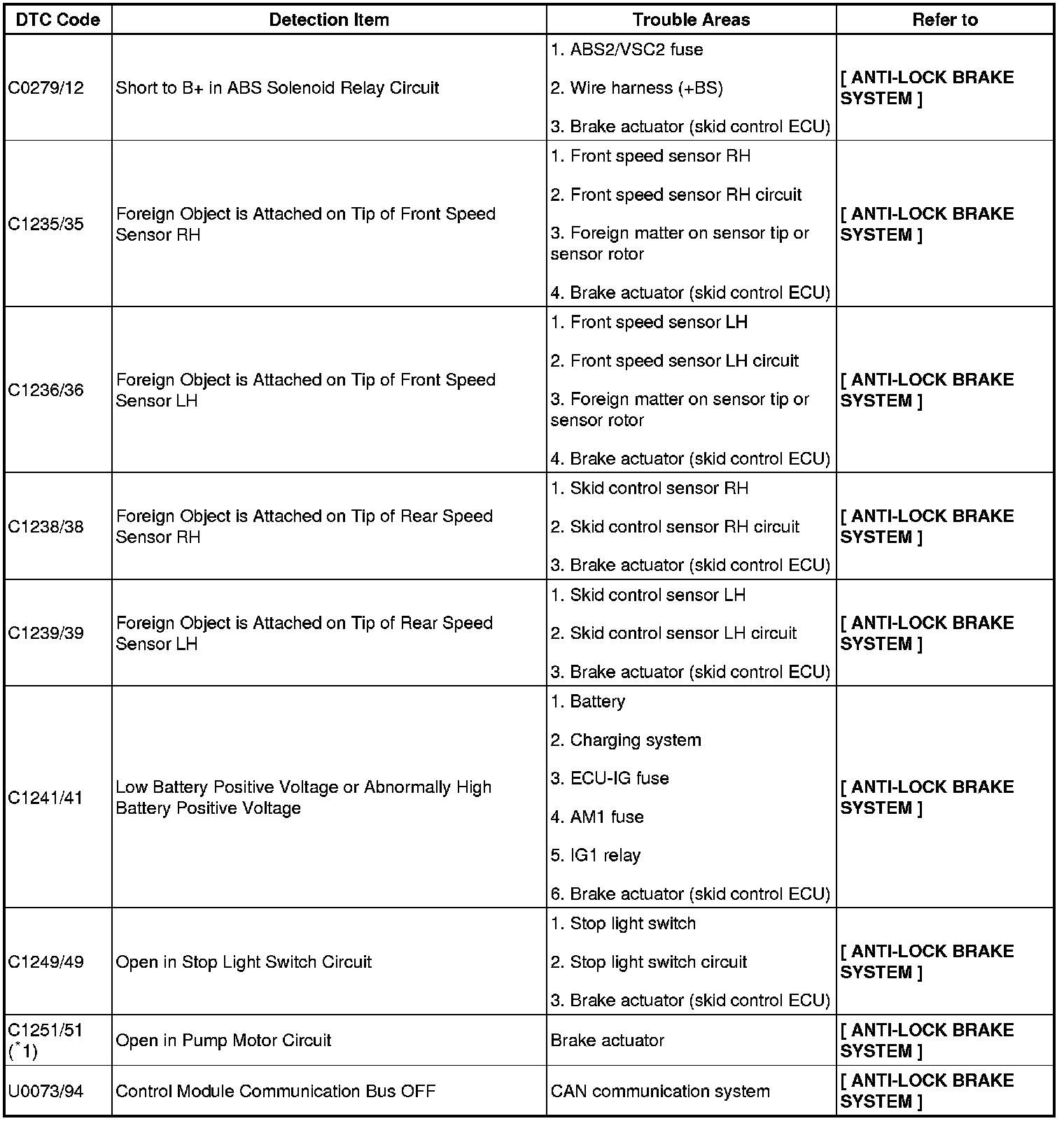

C0279 - C1251 / U0073:
HINT: *1:
Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed.
1. Drive the vehicle at 12 mph (20 km/h) for 30 seconds or more and check that the ABS warning light goes off.
2. Clear the DTC(s).

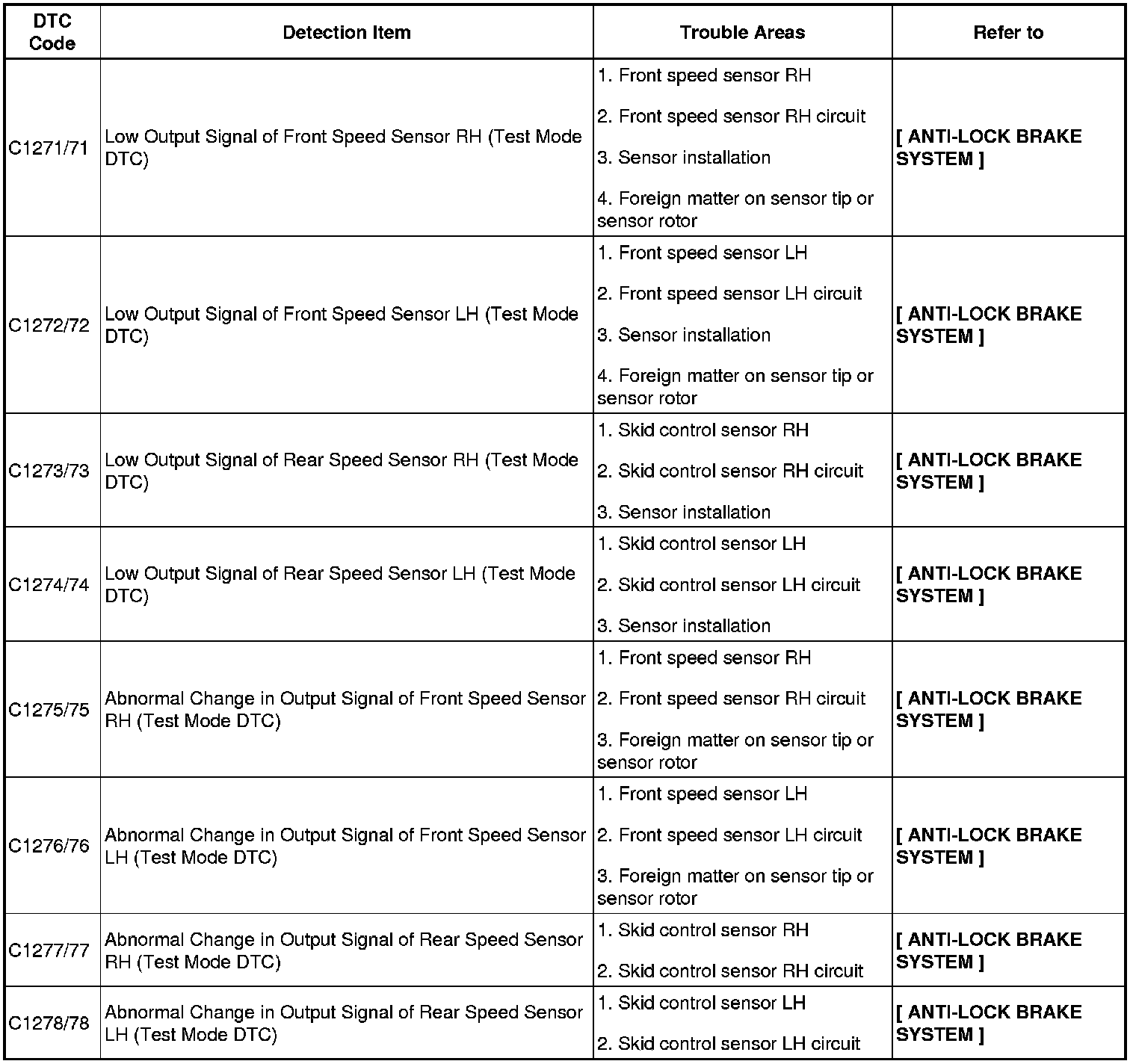

Test Mode DTC:
