Air Conditioning System
AIR CONDITIONING: AIR CONDITIONING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

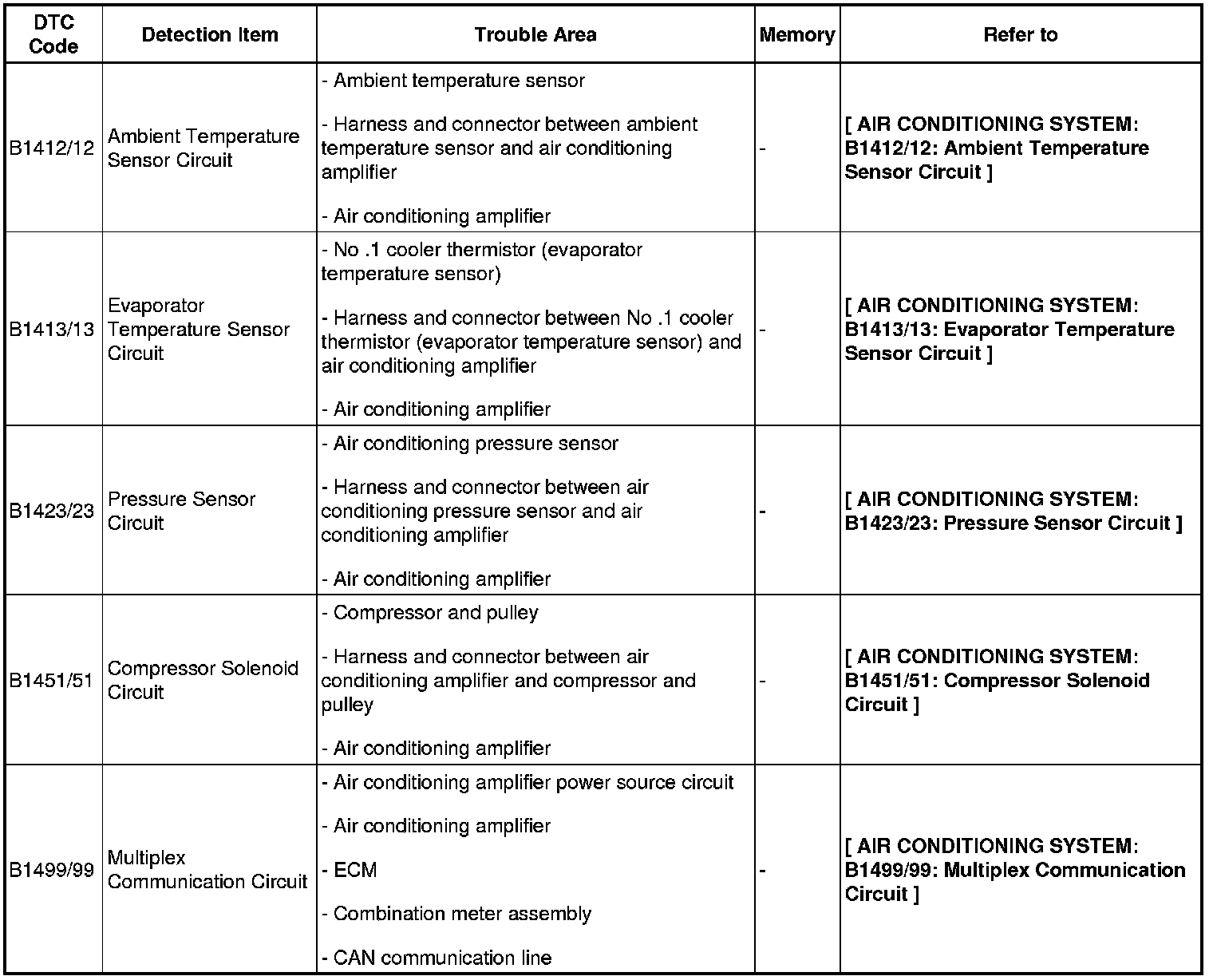

DIAGNOSTIC TROUBLE CODE CHART
- If a trouble code is displayed during the DTC check, inspect the suspected areas listed for that code. For details of the code, refer to the "Refer to" in the DTC chart.
- Inspect the fuse and relay before investigating the suspected areas shown in the table below.
HINT: When the air conditioning system functions properly, DTC B1400/00 is output.
Air conditioning system
