Automatic Transaxle System - U340E

U340E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART

If a DTC is displayed during the DTC check, check the parts listed in the table below.
HINT:
- *1: "Comes on" means the MIL (Malfunction Indicator Lamp) illuminates.
- *2: "DTC stored" means the ECM stores the malfunction code if the ECM detects the DTC detection condition.
- These DTCs may be output when the clutch, brake and gear components inside the automatic transaxle are damaged.

AUTOMATIC TRANSAXLE SYSTEM

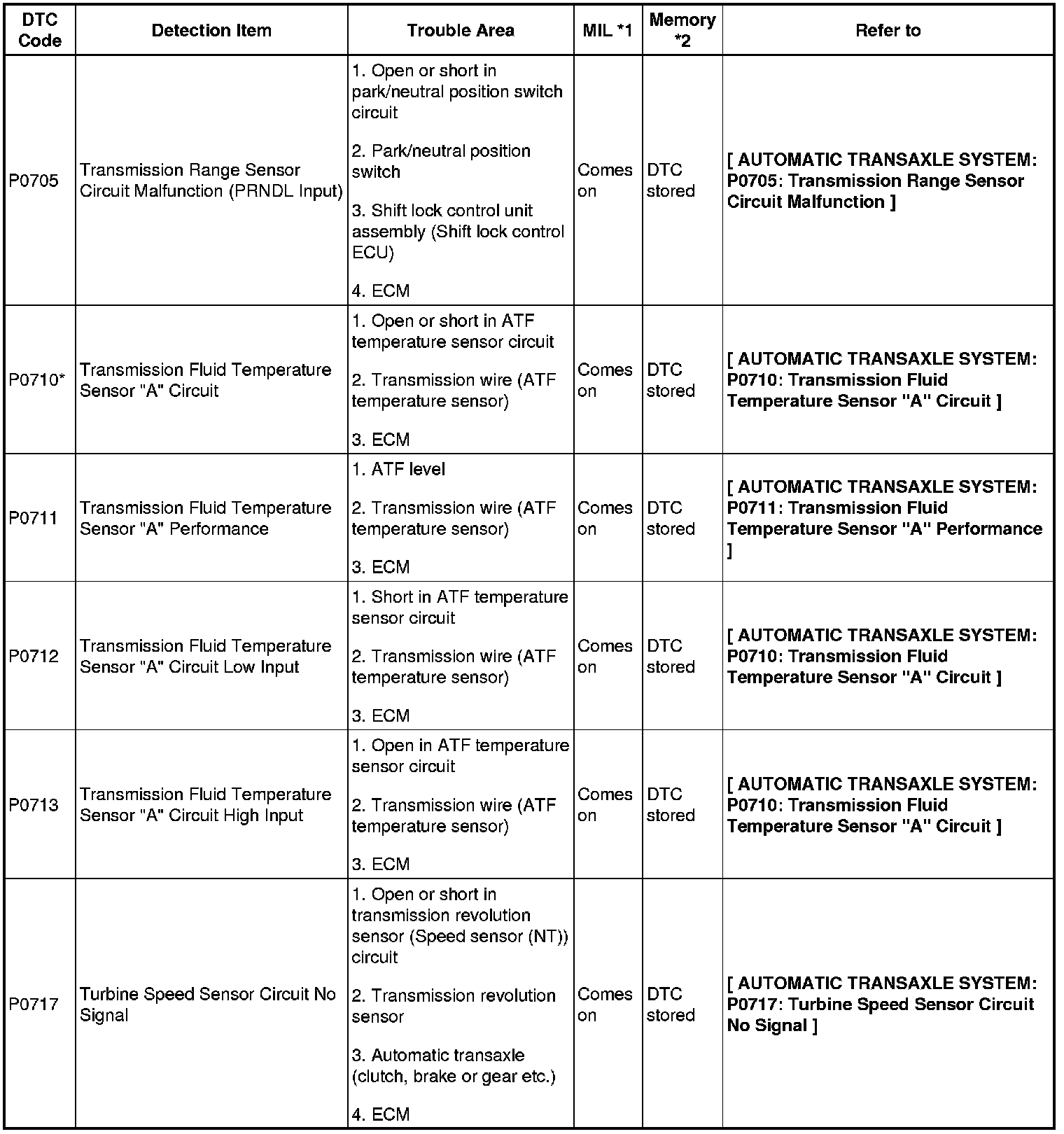

P0705 - P0717:

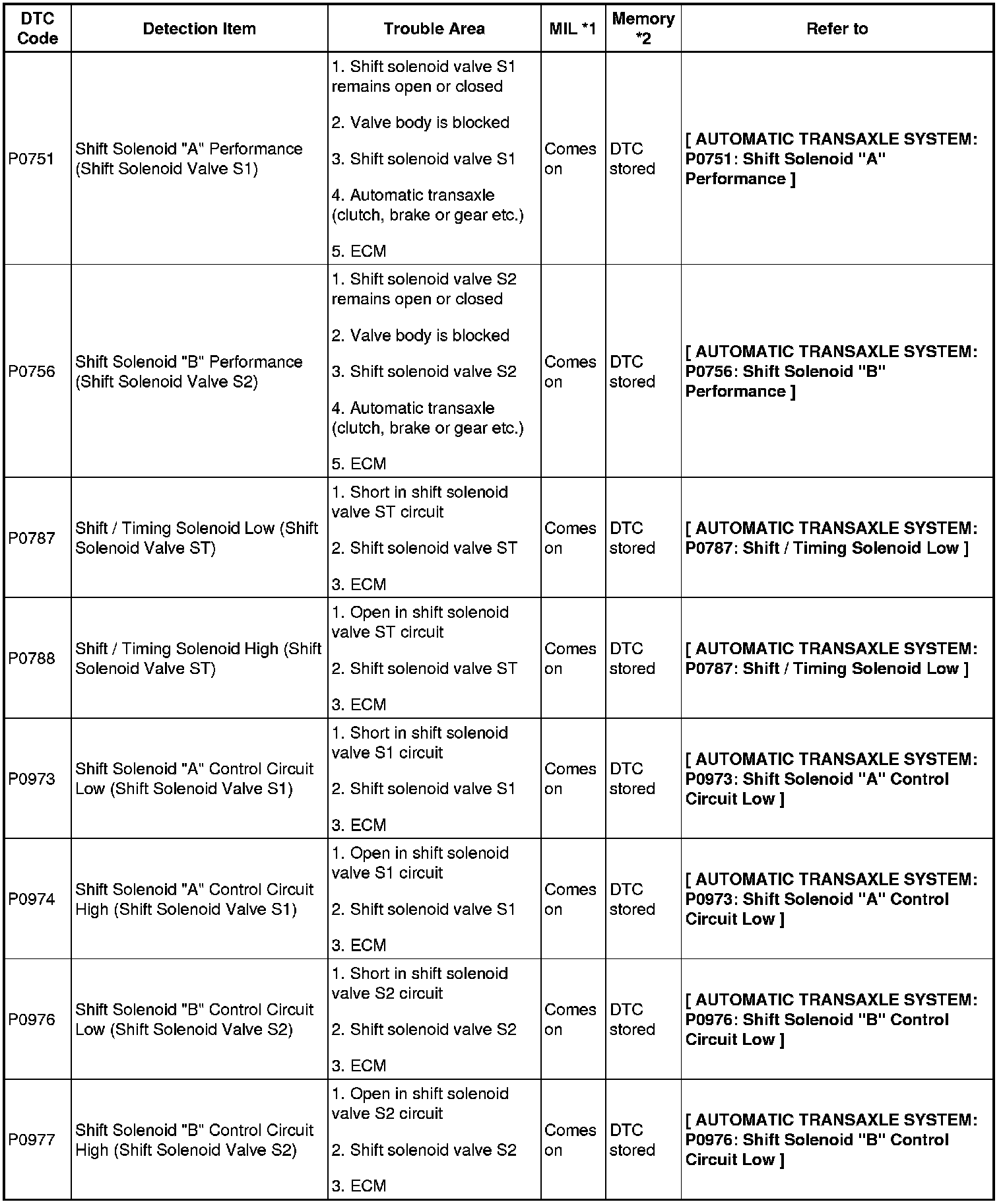

P0751 - P0977:

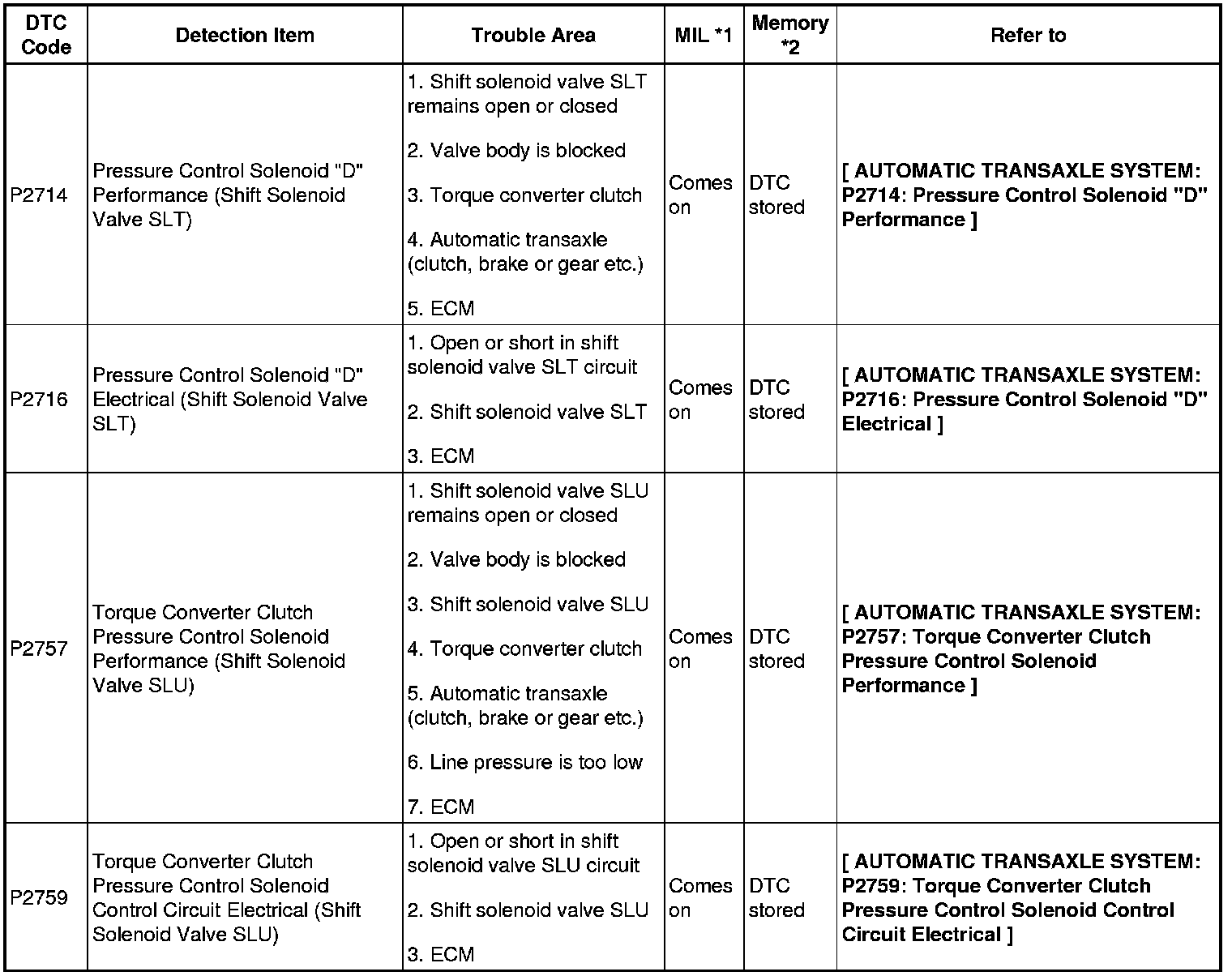

P2714 - P2759:

- *: Only for Mexico models
