Control Module Communication Bus OFF - ABS (Antilock Brake System) (for Sedan)

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM (for Sedan): U0073/94: Control Module Communication Bus OFF

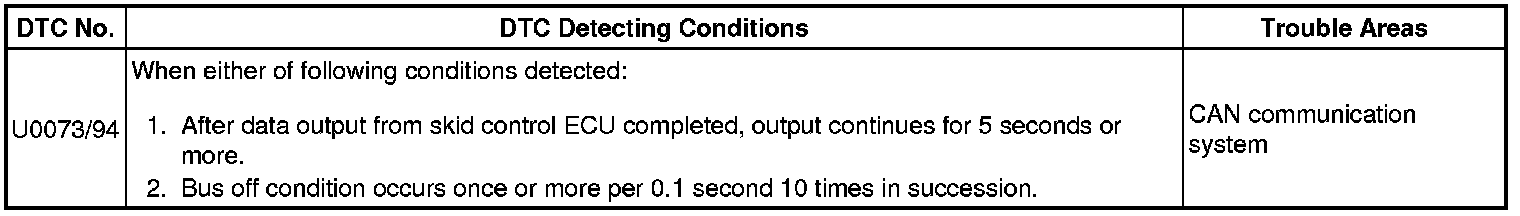

DTC U0073/94 - Control Module Communication Bus OFF

DESCRIPTION





INSPECTION PROCEDURE

PROCEDURE

1. RECONFIRM DTC
(a) Clear the DTC ABS (Antilock Brake System) (for Sedan).
(b) Check if the same DTC is output ABS (Antilock Brake System) (for Sedan).

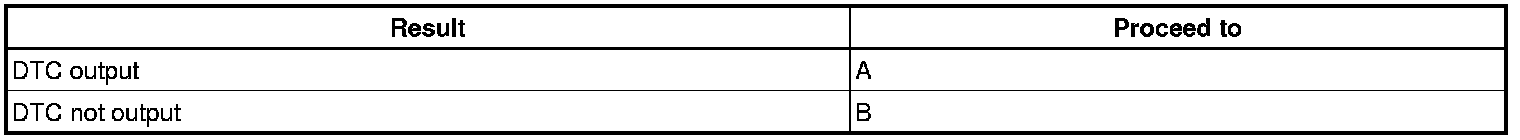

Result:






B -- END
A -- REPAIR CAN COMMUNICATION SYSTEM
