1NZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0010: Camshaft Position "A" Actuator Circuit (Bank 1)
DTC P0010 - Camshaft Position "A" Actuator Circuit (Bank 1)
DESCRIPTION
HINT: This DTC relates to the Oil Control Valve (OCV).

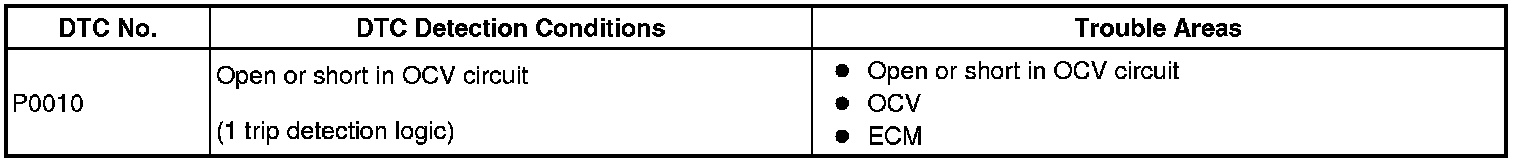

This DTC is designed to detect opens or shorts in the camshaft oil control valve (OCV) circuit. If the OCV's duty-cycle is excessively high or low while the engine running, the ECM will illuminate the MIL and set the DTC.

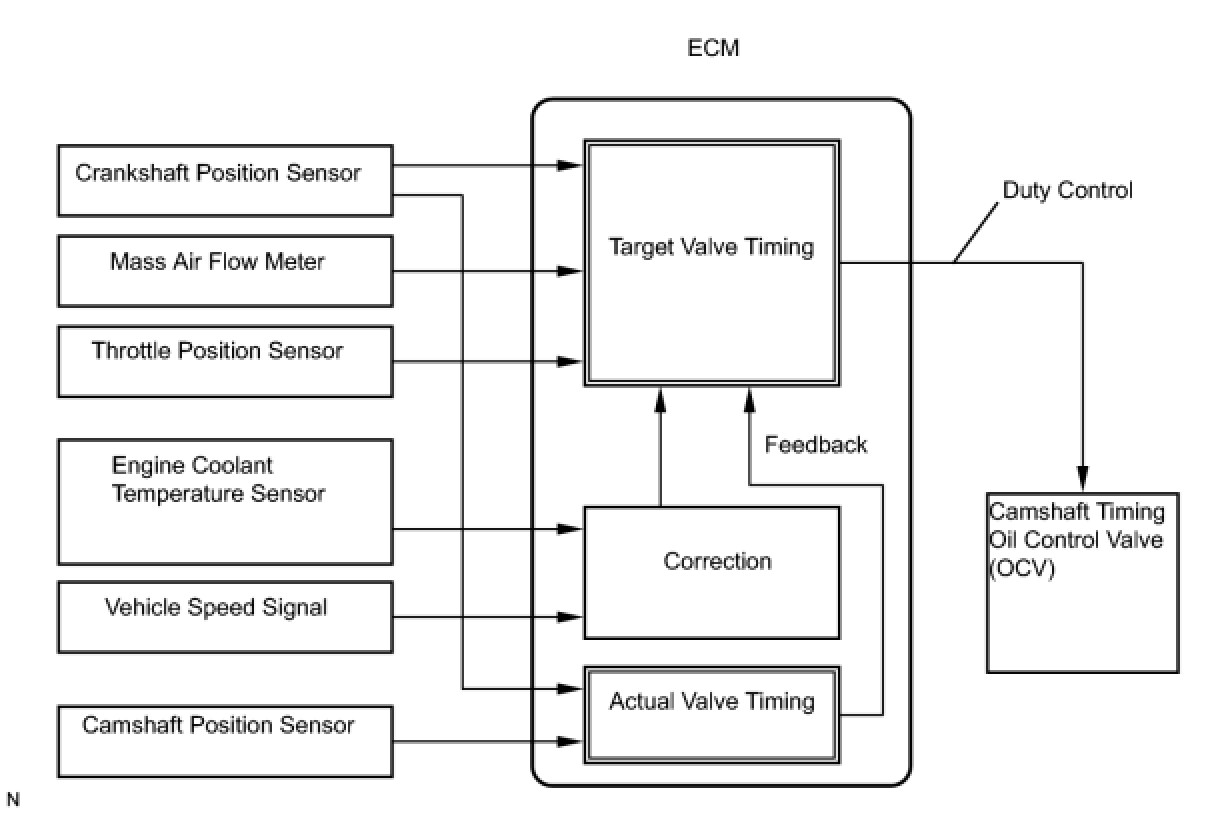

The VVT (variable valve timing) system adjusts the intake valve timing to improve the driveability. The engine oil pressure turns the camshaft actuator to adjust the valve timing. The OCV is a solenoid valve and switches the engine oil line. The valve moves when the ECM applies the 12volts to the solenoid. The ECM changes the energizing time to the solenoid (duty-cycle) in accordance with the camshaft position, crankshaft position,, throttle position etc.
MONITOR DESCRIPTION
This DTC is designed to detect opens or shorts in the camshaft oil control valve (OCV) circuit. If the OCV's duty-cycle is excessively high or low while the engine running, the ECM will illuminate the MIL and set the DTC.

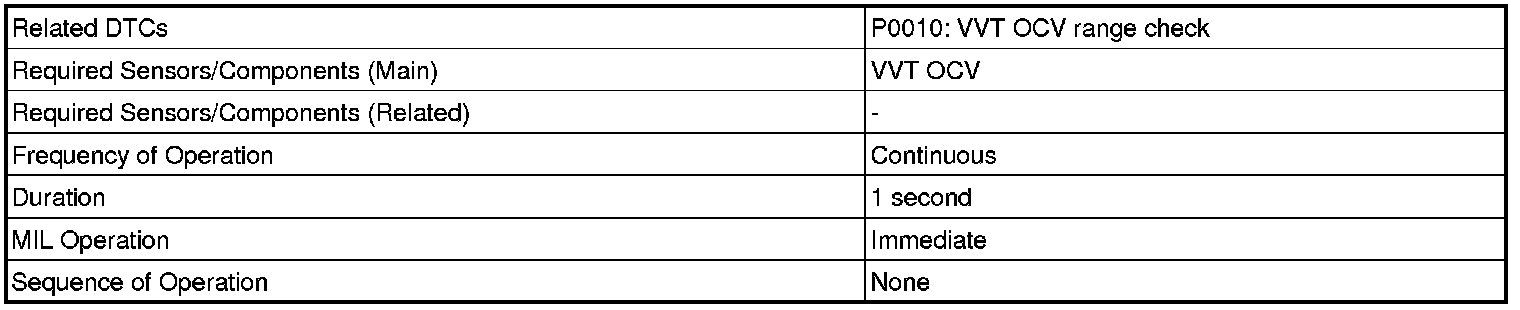

MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS
COMPONENT OPERATING RANGE

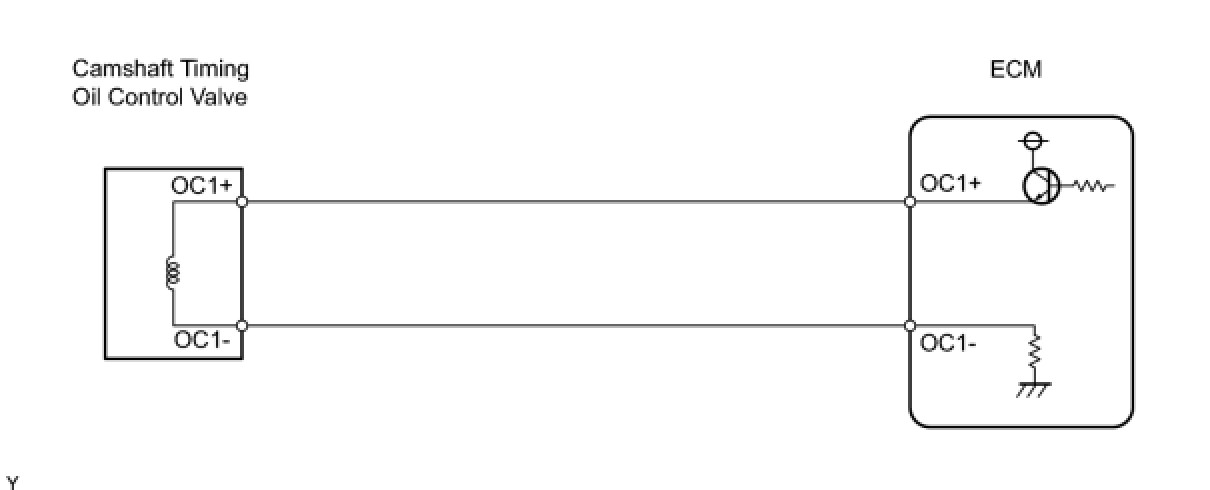

WIRING DIAGRAM
INSPECTION PROCEDURE
HINT: Read freeze frame data using a Techstream. Freeze frame data record the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data, from the time the malfunction occurred.
PROCEDURE
1. CHECK DTC (OPERATE OCV)
(a) Connect a Techstream to the DLC3.
(b) Turn the ignition switch to ON and turn the tester ON.
(c) Clear DTCs after recording the freeze frame data and DTCs.
(d) Start the engine.
(e) Allow the engine to idle and check for DTCs.
(f) Check that P0010 is present.
OK:
P0010 is present.
NG -- CHECK FOR INTERMITTENT PROBLEMS
OK -- Continue to next step.
2. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

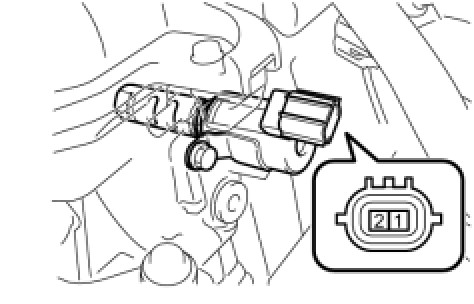

(a) Disconnect the C24 OCV connector.
(b) Measure the resistance between the terminals of the OCV.
Standard resistance:
6.9 to 7.9 Ohms at 20°C (68°F)
(c) Reconnect the OCV connector.
NG -- REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
OK -- Continue to next step.

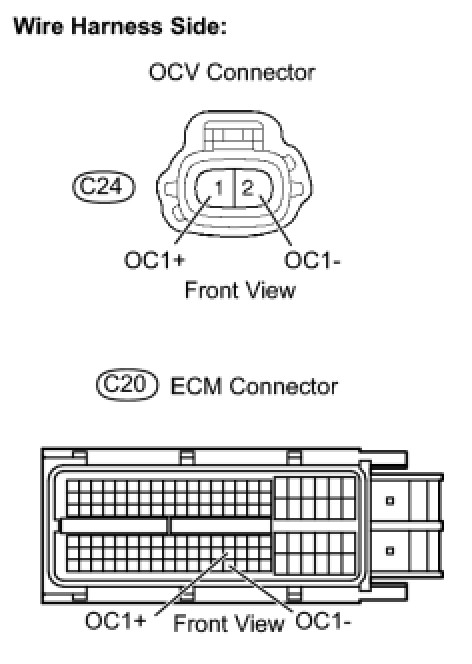

3. CHECK HARNESS AND CONNECTOR (OCV - ECM)
(a) Disconnect the C24 OCV connector.
(b) Disconnect the C20 ECM connector.
(c) Check the resistance.

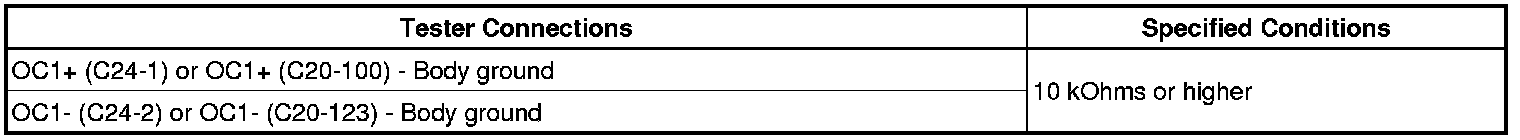

Standard resistance (check for open):

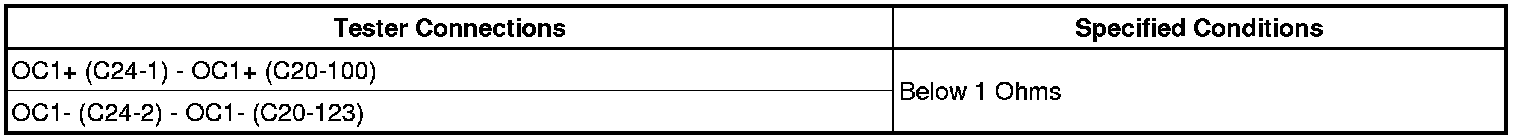

Standard resistance (check for short):
(d) Reconnect the OCV connector.
(e) Reconnect the ECM connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE ECM
