SFI System

1NZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0607: Control Module Performance

DTC P0607 - Control Module Performance

DESCRIPTION

The ECM continuously monitors its main and sub CPUs. This self-check ensures that the ECM is functioning properly. If outputs from the CPUs are different and deviate from the standards, the ECM will illuminate the MIL and set a DTC immediately.

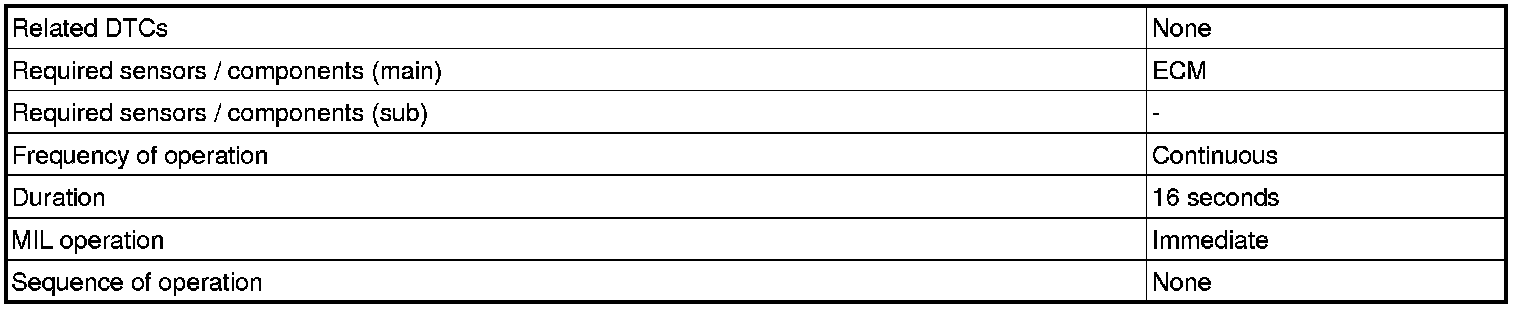

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

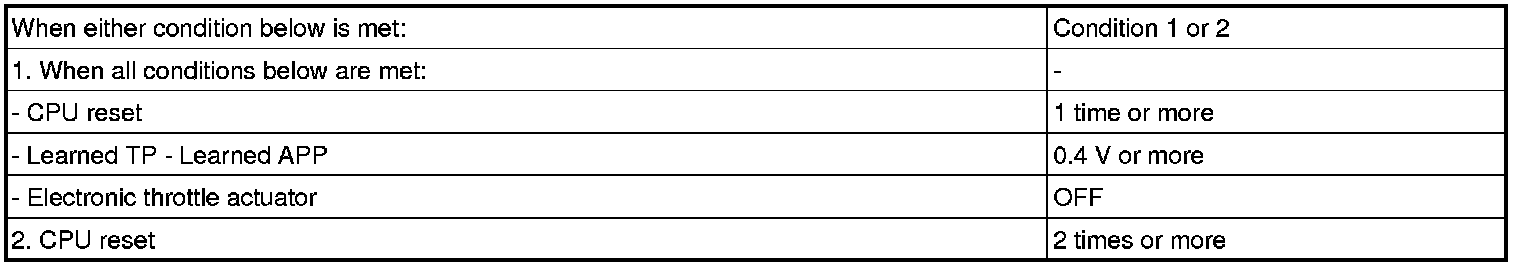

TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE

PROCEDURE

1. READ OUTPUT DTC (DTC P0607)
(a) Connect a Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the tester ON.
(d) Clear DTCs DTC Check / Clear.
(e) Turn the ignition switch to OFF and turn the tester OFF.
(f) Disconnect the tester.
(g) Disconnect the cable from the battery negative (-) terminal and wait for 1 minute.
(h) Connect the cable to the battery negative (-) terminal.
(i) Connect the tester to the DLC3.
(j) Turn the ignition switch to ON.
(k) Turn the tester ON.
(l) Select the following menu items: Powertrain / Engine and ECT / Trouble Codes.
(m) Read DTCs.

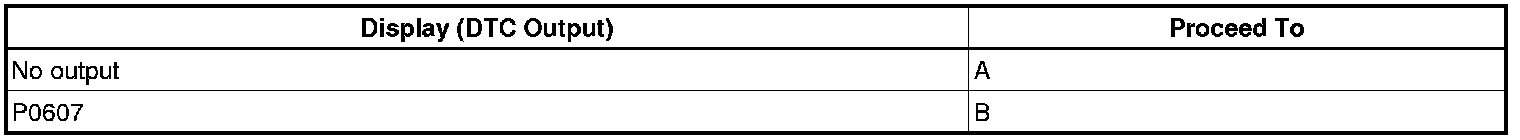

Result:






B -- REPLACE ECM
A -- CHECK FOR INTERMITTENT PROBLEMS
