P2716

U340E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: P2716: Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)

DTC P2716 - Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)

DESCRIPTION





The throttle pressure that is applied to the primary regulator valve (which modulates the line pressure) causes shift solenoid valve SLT, under electronic control, to precisely modulate and generate the line pressure according to the extent that the accelerator pedal is depressed or the engine power output.
This controls the line pressure and provides smooth shifting characteristics.
Upon receiving a throttle valve opening angle signal, the ECM controls the line pressure by sending a predetermined duty ratio* to the solenoid valve, modulating the line pressure and generating throttle pressure.
*: The duty ratio is the ratio of the current ON time (A) to the total of the current ON and OFF time (A + B).
Duty Ratio (%) = A / (A + B) x 100






MONITOR DESCRIPTION

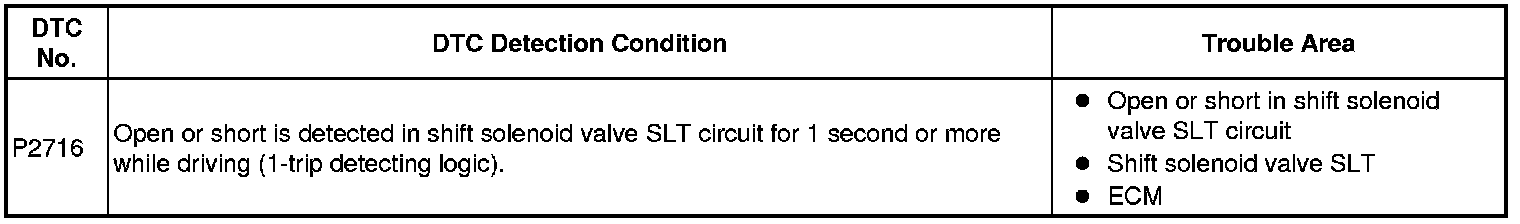

When an open or short in the linear solenoid valve (SLT) circuit is detected, the ECM interprets this as a fault. The ECM turns on the MIL and stores the DTC.

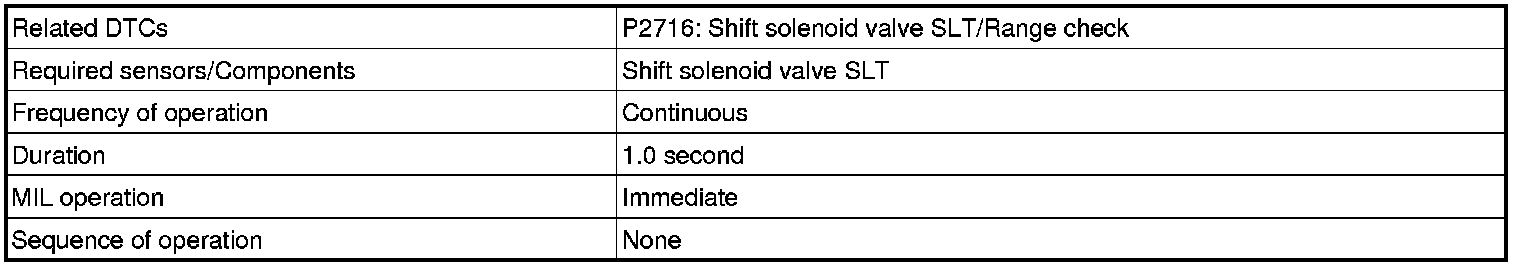

MONITOR STRATEGY

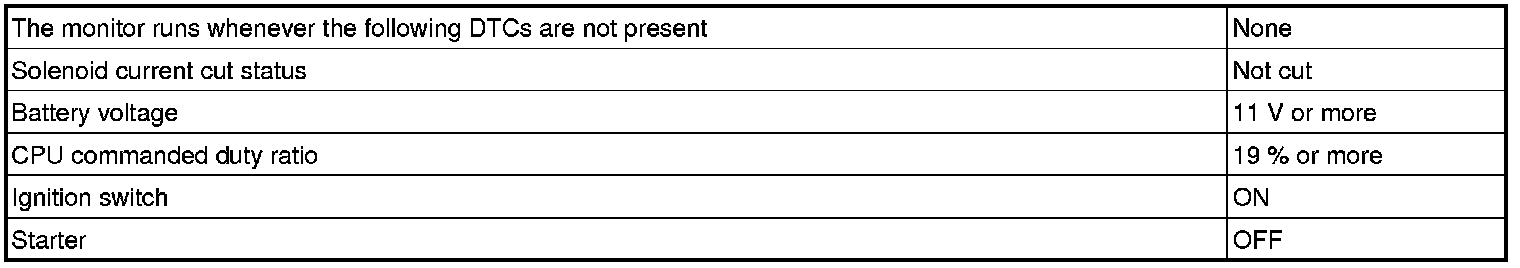

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE

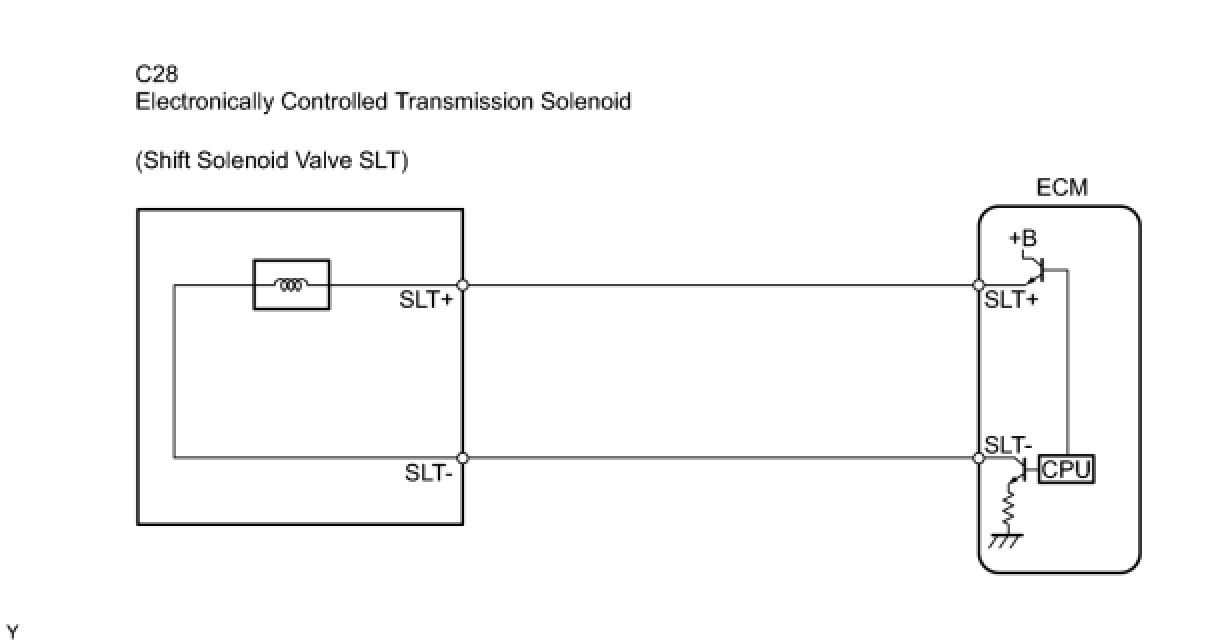

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE SLT)




(a) Disconnect the transmission wire connector from the transaxle.

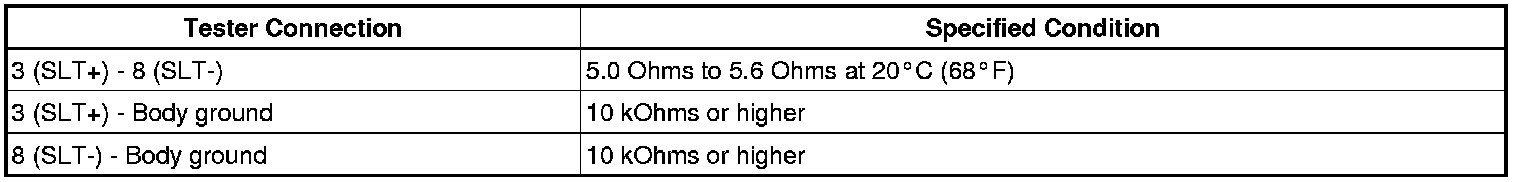

(b) Measure the resistance.
Standard resistance:






NG -- INSPECT SHIFT SOLENOID VALVE SLT
OK -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)




(a) Connect the transmission connector to the transaxle.

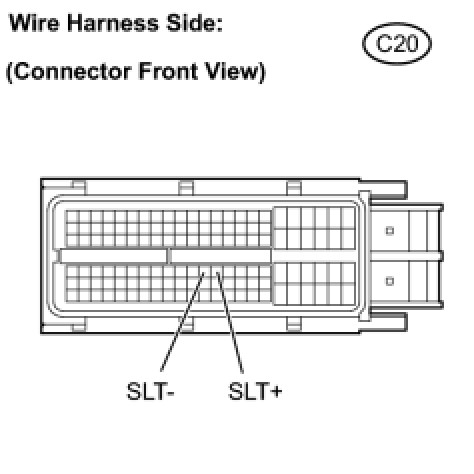

(b) Disconnect the ECM connector.

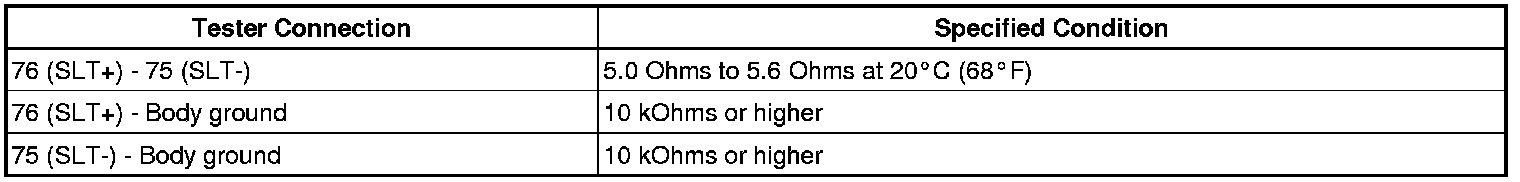

(c) Measure the resistance.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE ECM
3. INSPECT SHIFT SOLENOID VALVE SLT




(a) Remove shift solenoid valve SLT.

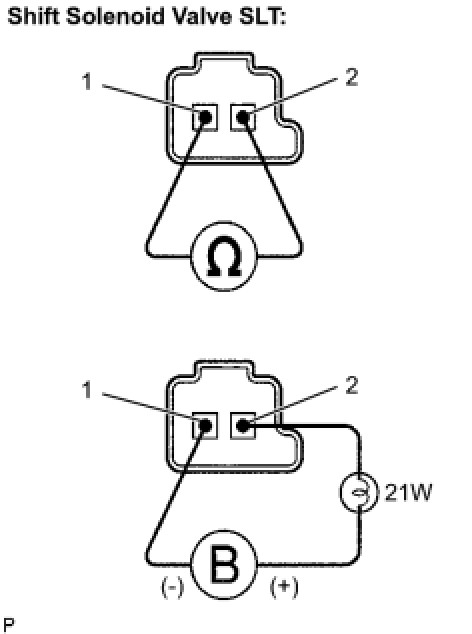

(b) Measure the resistance.
Standard resistance :





(c) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
OK:
The solenoid makes operating sounds.
NG -- REPLACE SHIFT SOLENOID VALVE SLT
OK -- REPAIR OR REPLACE TRANSMISSION WIRE
