Installation

AUDIO / VISUAL: AMPLIFIER ANTENNA (for Sedan): INSTALLATION

INSTALLATION

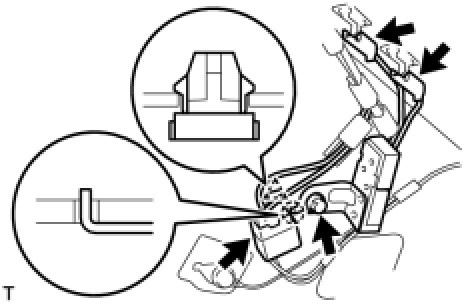

1. INSTALL AMPLIFIER ANTENNA ASSEMBLY





(a) Insert the hook into the body hole and install the amplifier antenna with the bolt.
(b) Engage the clamp.
(c) Connect the 2 amplifier antenna connectors.
(d) Connect the antenna cord connector.
2. INSTALL ROOF SIDE INNER GARNISH Installation
3. INSTALL REAR SEAT SIDE COVER Installation
4. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP Installation
5. INSTALL REAR DOOR SCUFF PLATE Installation
6. INSTALL LUGGAGE COMPARTMENT TRIM INNER PAD (for 60/40 Split Seat Type) Installation
7. INSTALL SPARE WHEEL COVER ASSEMBLY (for 60/40 Split Seat Type) Installation
8. INSTALL LUGGAGE COMPARTMENT FLOOR MAT (for 60/40 Split Seat Type) Installation
9. INSTALL REAR SEATBACK ASSEMBLY
(a) for 60/40 Split Seat Type:
(1) Install the rear seatback assembly Installation.
(b) for Fixed Seat Type:
(1) Install the rear seatback assembly Installation.
10. INSTALL REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY
(a) for 60/40 Split Seat Type:
(1) Install the rear seat cushion cover pad sub-assembly Installation.
(b) for Fixed Seat Type:
(1) Install the rear seat cushion cover pad sub-assembly Installation.
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
