AUDIO / VISUAL: AMPLIFIER ANTENNA (for Sedan): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY
(a) for 60/40 Split Seat Type:
(1) Remove the rear seat cushion cover pad sub-assembly Removal.
(b) for Fixed Seat Type:
(1) Remove the rear seat cushion cover pad sub-assembly Removal.
3. REMOVE REAR SEATBACK ASSEMBLY
(a) for 60/40 Split Seat Type:
(1) Remove the rear seatback assembly Removal.
(b) for Fixed Seat Type:
(1) Remove the rear seatback assembly Removal.
4. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (for 60/40 Split Seat Type) Disassembly
5. REMOVE SPARE WHEEL COVER ASSEMBLY (for 60/40 Split Seat Type) Disassembly
6. REMOVE LUGGAGE COMPARTMENT TRIM INNER PAD (for 60/40 Split Seat Type) Disassembly
7. REMOVE REAR DOOR SCUFF PLATE Removal
8. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP Removal
9. REMOVE REAR SEAT SIDE COVER Removal
10. REMOVE ROOF SIDE INNER GARNISH Removal

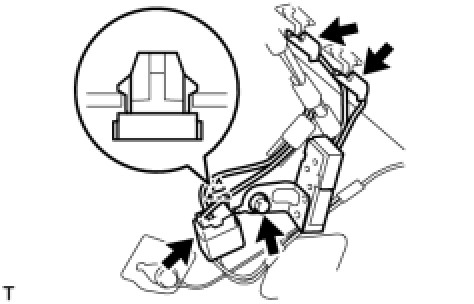

11. REMOVE AMPLIFIER ANTENNA ASSEMBLY





(a) Disconnect the antenna cord connector.
(b) Disconnect the 2 amplifier antenna connectors.
(c) Disengage the clamp.
(d) Remove the bolt and the amplifier antenna.
