Removal

ENGINE IMMOBILISER: TRANSPONDER KEY AMPLIFIER: REMOVAL

REMOVAL

1. REMOVE STEERING COLUMN COVER Removal
2. REMOVE TRANSPONDER KEY AMPLIFIER
(a) Disconnect the connector.

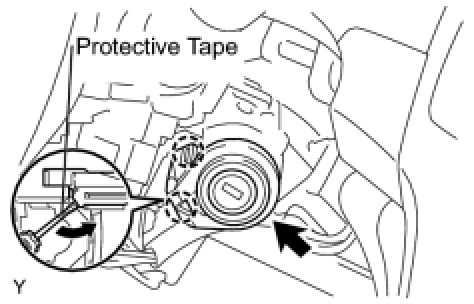

(b) Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the transponder key amplifier.
