Engine Hood Courtesy Switch (for Hatchback)

THEFT DETERRENT: ENGINE HOOD COURTESY SWITCH (for Hatchback): INSPECTION

INSPECTION





1. INSPECT HOOD LOCK ASSEMBLY
(a) Check the resistance of the engine hood courtesy switch.

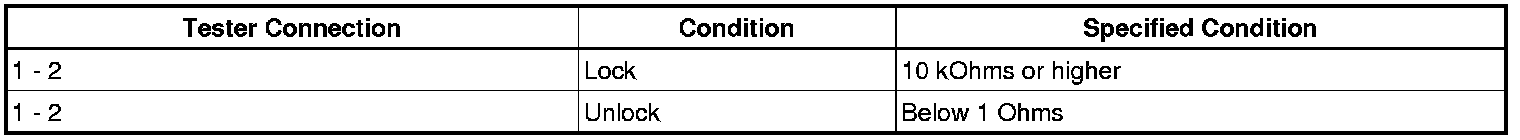

(1) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.
Standard Resistance:






If the results is not as specified, replace the hood lock.
