Removal

DOOR LOCK: DOOR CONTROL TRANSMITTER MODULE: REMOVAL

REMOVAL

1. REMOVE DOOR CONTROL TRANSMITTER MODULE
(a) Remove the door control transmitter module.

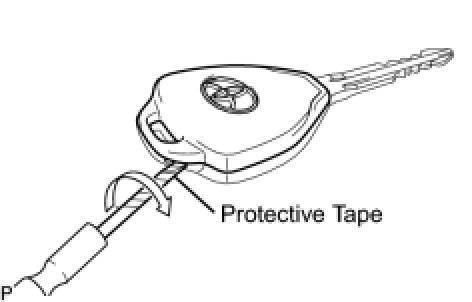

(1) Using a screwdriver with its tip wrapped in protective tape, pry apart the transmitter housing cover.
NOTE: Do not use excessive force when prying apart the housing cover.




(2) Remove the door control transmitter module from the transmitter housing case.
