Theft Deterrent System

THEFT DETERRENT: THEFT DETERRENT SYSTEM: DATA LIST / ACTIVE TEST

DATA LIST / ACTIVE TEST

1. DATA LIST
HINT: Using Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

(a) Warm up the engine.
(b) Turn the ignition switch to OFF.
(c) Connect the Techstream to the DLC3.
(d) Turn the ignition switch to ON.
(e) Turn the tester ON.
(f) Enter the following menus: Body Electrical / Main Body / Data List /
(g) According to the display on tester, read the "Data List".

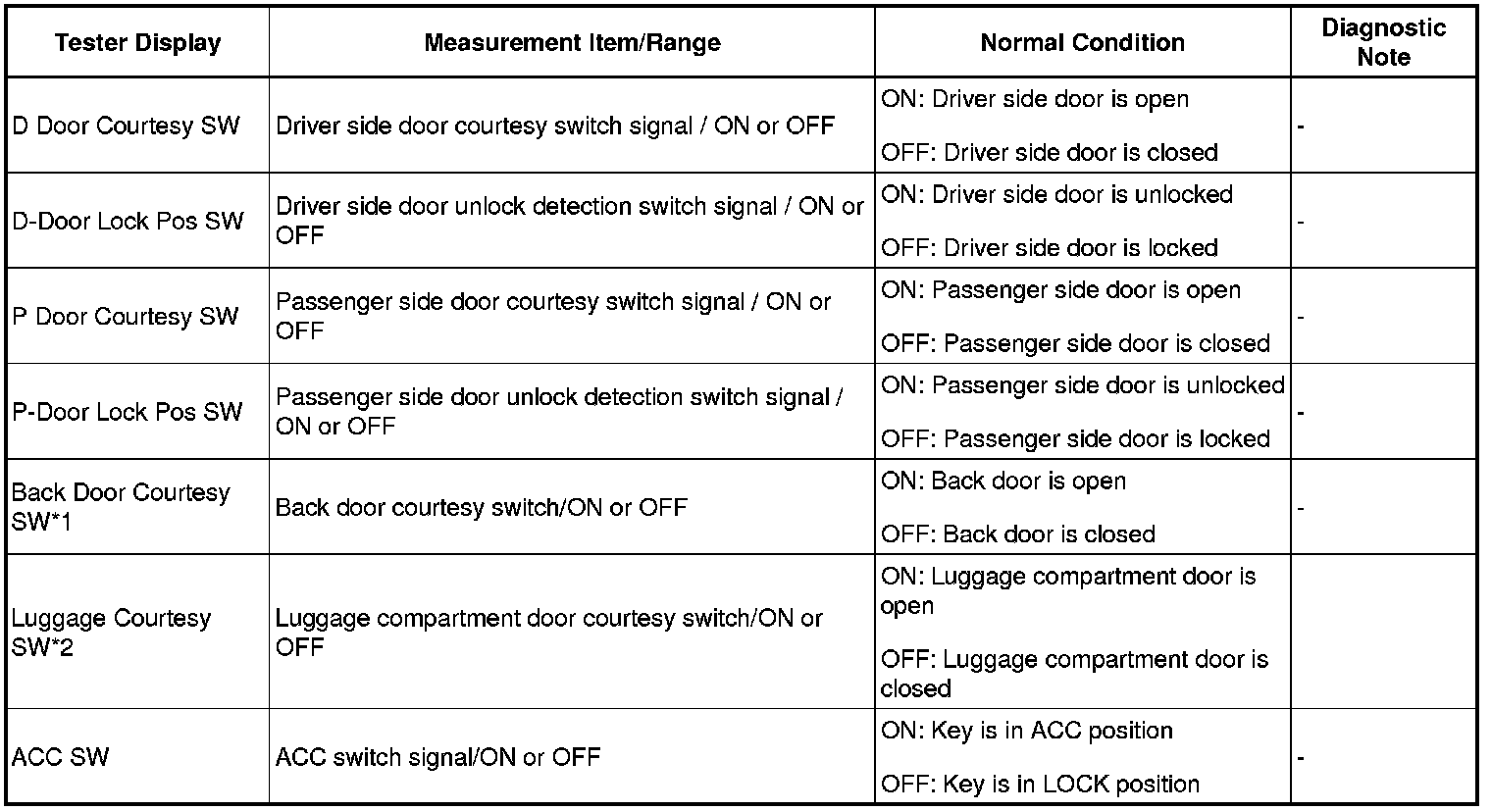

Theft Warning ECU:





*: Sedan

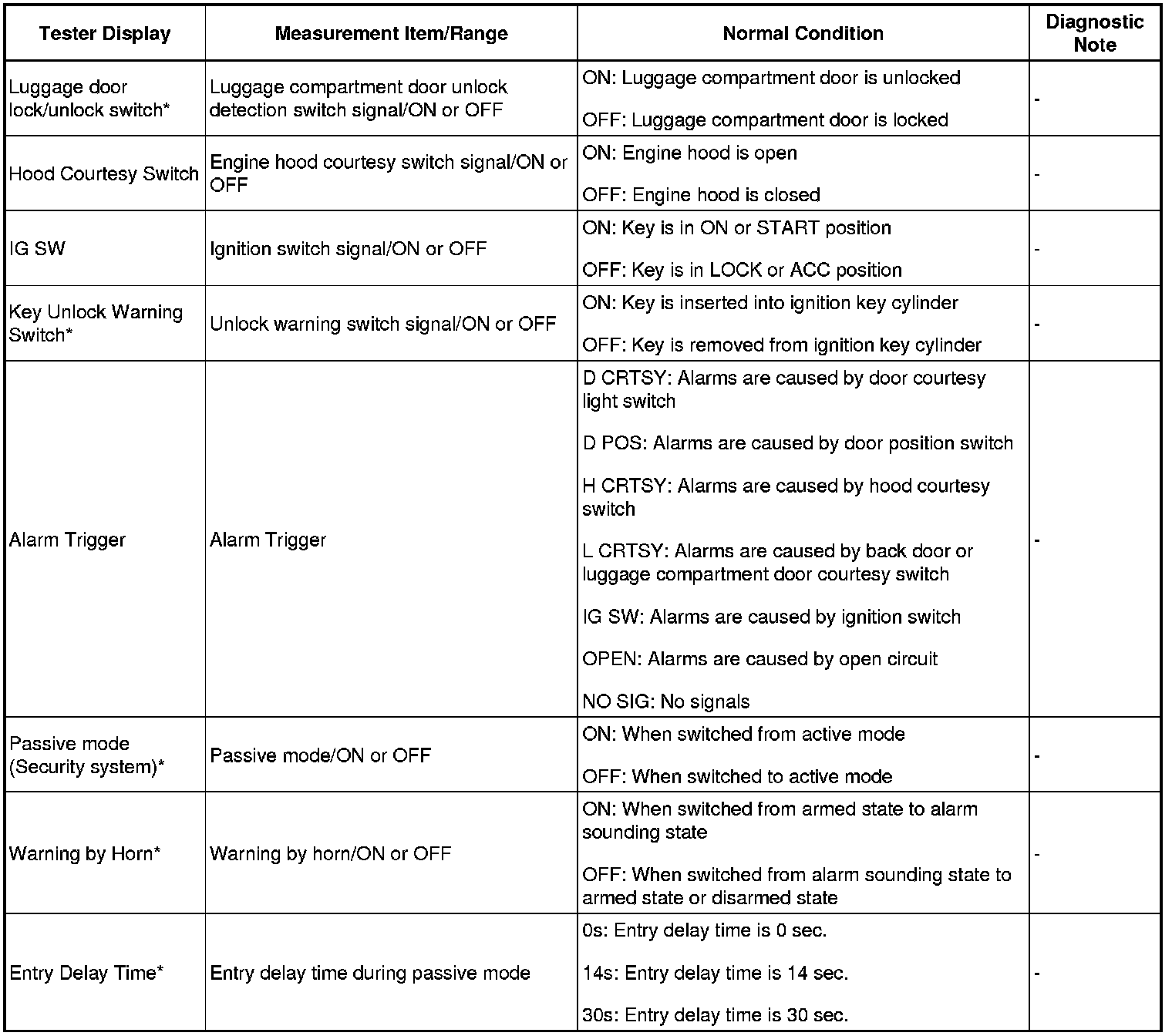

Main Body ECU:





*1: Hatchback
*2: Sedan
2. ACTIVE TEST
HINT: Using Techstream to perform Active Test allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. The Data List can be displayed while performing Active Tests.

(a) Warm up the engine.
(b) Turn the ignition switch to OFF.
(c) Connect the Techstream to the DLC3.
(d) Turn the ignition switch to ON.
(e) Turn the tester ON.
(f) Enter the following menus: Body Electrical / Main Body / Active Test /
(g) According to the display on tester, read the "Active Test".

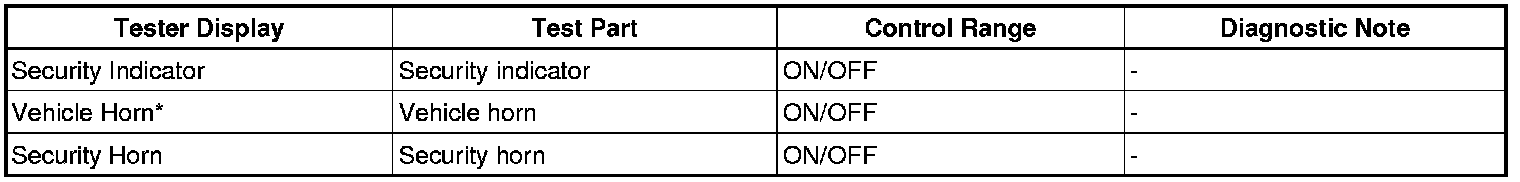

Theft Warning ECU:





*: Hatchback

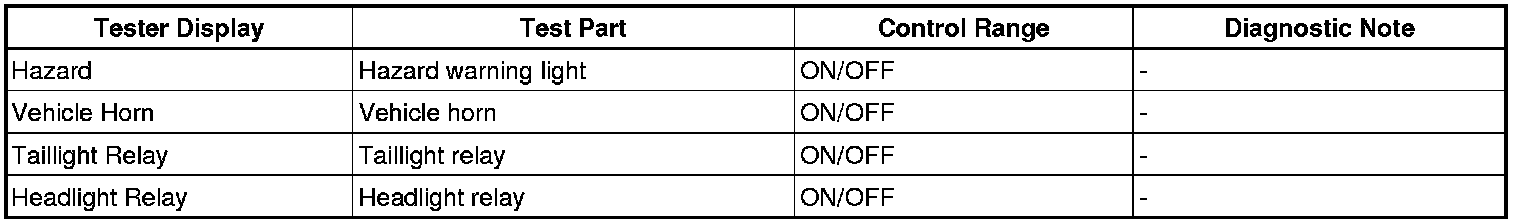

Main Body ECU:
