Removal

AUDIO / VISUAL: STEREO JACK ADAPTER ASSEMBLY (for Sedan): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE INSTRUMENT PANEL LOWER CENTER FINISH PANEL Removal
3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Removal
4. REMOVE REAR CONSOLE BOX UPPER PANEL SUB-ASSEMBLY Removal
5. REMOVE REAR CONSOLE BOX UPPER REAR PANEL SUB-ASSEMBLY Removal
6. REMOVE REAR CONSOLE BOX CARPET Removal
7. REMOVE REAR CONSOLE BOX ASSEMBLY Removal
8. REMOVE INSTRUMENT PANEL FINISH PANEL END Removal
9. REMOVE INSTRUMENT LOWER PAD Removal
10. REMOVE STEREO JACK ADAPTER ASSEMBLY

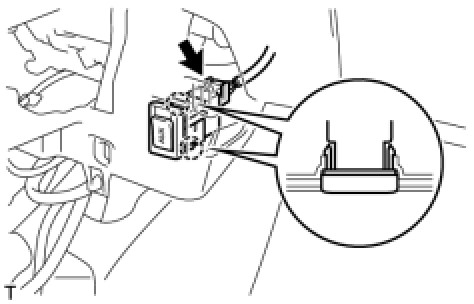

(a) Disengage the 2 claws and remove the stereo jack adapter.
(b) Disconnect the stereo jack adapter connector.
