Disassembly
AUDIO / VISUAL: RADIO RECEIVER (for Hatchback): DISASSEMBLY
DISASSEMBLY

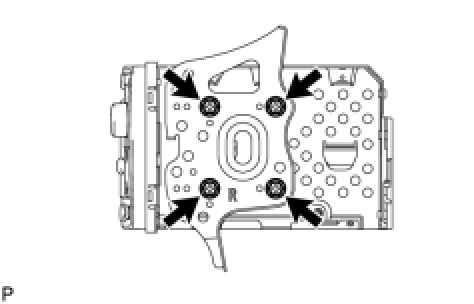

1. REMOVE RADIO BRACKET RH
(a) Remove the 4 screws and remove the radio bracket.

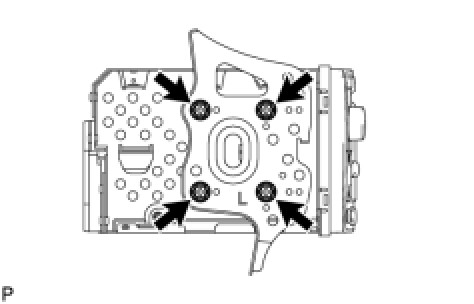

2. REMOVE RADIO BRACKET LH
(a) Remove the 4 screws and remove the radio bracket.
AUDIO / VISUAL: RADIO RECEIVER (for Hatchback): DISASSEMBLY
DISASSEMBLY
1. REMOVE RADIO BRACKET RH
(a) Remove the 4 screws and remove the radio bracket.
2. REMOVE RADIO BRACKET LH
(a) Remove the 4 screws and remove the radio bracket.
