Disassembly

AUDIO / VISUAL: RADIO RECEIVER (for Sedan): DISASSEMBLY

DISASSEMBLY

1. REMOVE INSTRUMENT PANEL CENTER REGISTER ASSEMBLY (for Integrated with Panel) Removal
2. REMOVE RADIO BRACKET RH

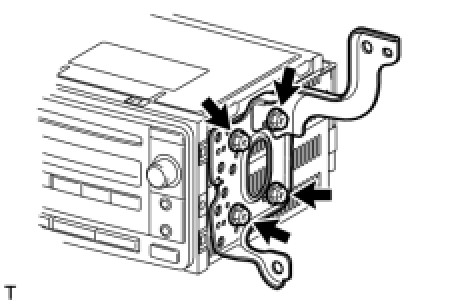

(a) for Integrated with Panel:
(1) Remove the 4 screws and the radio bracket.

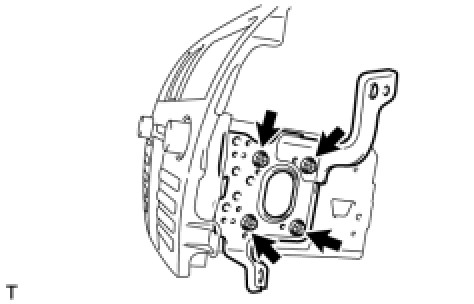

(b) except Integrated with Panel:
(1) Remove the 4 screws and the radio bracket.
3. REMOVE RADIO BRACKET LH
HINT: Use the same procedure as for the RH side.
