Installation

AUDIO / VISUAL: RADIO RECEIVER (for Sedan): INSTALLATION

INSTALLATION

1. INSTALL RADIO RECEIVER ASSEMBLY
(a) for Integrated with Panel:

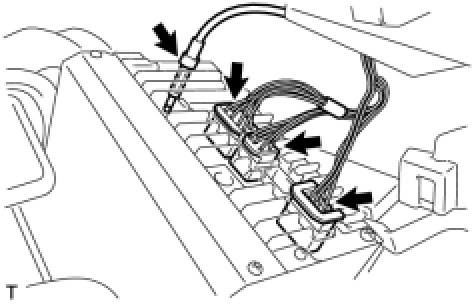

(1) Connect the plug.
(2) Connect the 3 radio connectors.

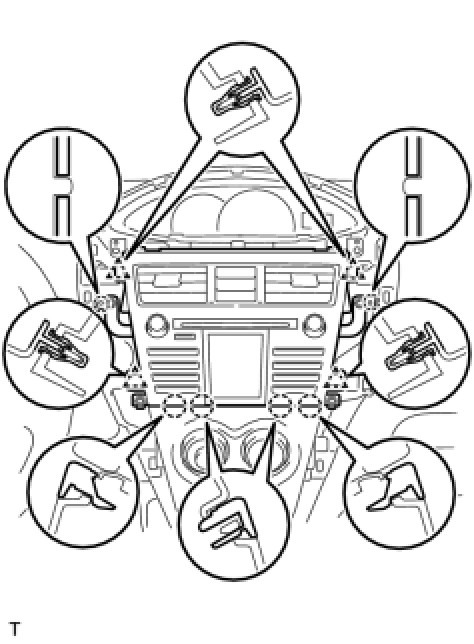

(3) Align the 2 bosses of the instrument panel with the hole in the radio bracket.
(4) Engage the 4 clips and 4 claws and install the radio receiver.

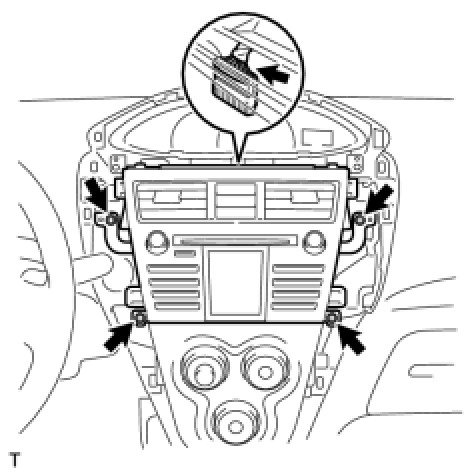

(5) Tighten the 4 bolts.
(6) Connect the hazard warning signal switch connector.
(b) except Integrated with Panel:

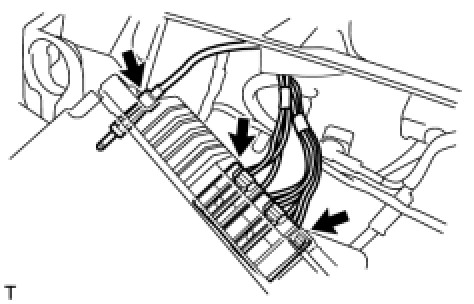

(1) Connect the plug.
(2) Connect the 2 radio connectors.

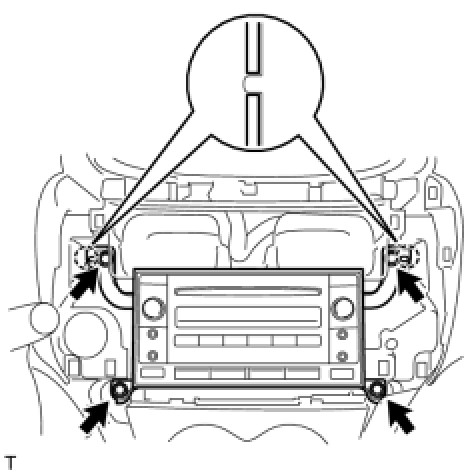

(3) Align the 2 bosses of the instrument panel with the hole in the radio bracket.
(4) Install the radio receiver with the 4 bolts.
2. INSTALL INSTRUMENT CLUSTER CENTER FINISH PANEL SUB-ASSEMBLY (except Integrated with Panel) Installation
3. INSTALL INSTRUMENT CLUSTER FINISH PANEL Installation
4. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
5. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
6. INSTALL INSTRUMENT PANEL LOWER CENTER FINISH PANEL Installation
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
