Reassembly

AUDIO / VISUAL: RADIO RECEIVER (for Sedan): REASSEMBLY

REASSEMBLY

1. INSTALL RADIO BRACKET RH





(a) for Integrated with Panel:

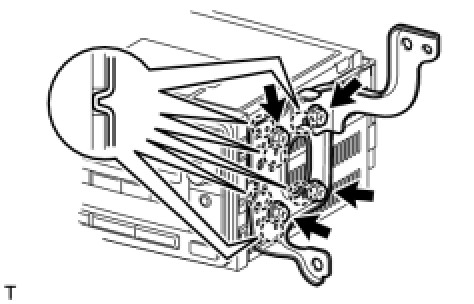

(1) Align the 6 bosses of the radio bracket with the hole in the radio receiver and install the radio bracket with the 2 screws.





(b) except Integrated with Panel:

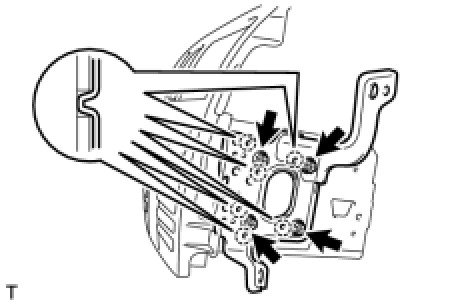

(1) Align the 6 bosses of the radio bracket with the hole in the radio receiver and install the radio bracket with the 4 screws.
2. REMOVE RADIO BRACKET LH
HINT: Use the same procedure as for the RH side.

3. INSTALL INSTRUMENT PANEL CENTER REGISTER ASSEMBLY (for Integrated with Panel) Installation
