AUDIO / VISUAL: RADIO RECEIVER (for Sedan): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE INSTRUMENT PANEL LOWER CENTER FINISH PANEL Removal
3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
4. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
5. REMOVE INSTRUMENT CLUSTER FINISH NO.1 PANEL Removal
6. REMOVE INSTRUMENT CLUSTER CENTER FINISH PANEL SUB-ASSEMBLY (except Integrated with Panel) Removal
7. REMOVE RADIO RECEIVER ASSEMBLY

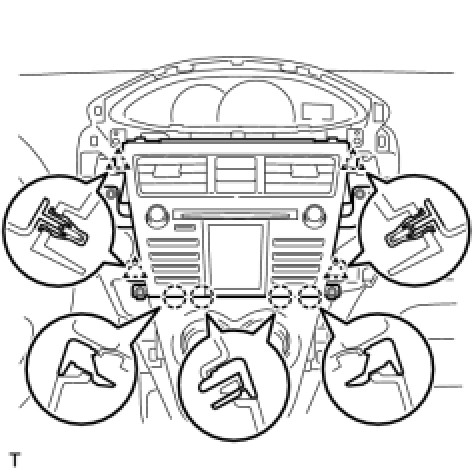

(a) for Integrated with Panel:




(1) Disconnect the hazard warning signal switch connector.
(2) Remove the 4 bolts.




(3) Disengage the 4 clips and the 4 claws and remove the radio receiver.




(4) Disconnect the plug.
(5) Disconnect the 3 radio connectors.

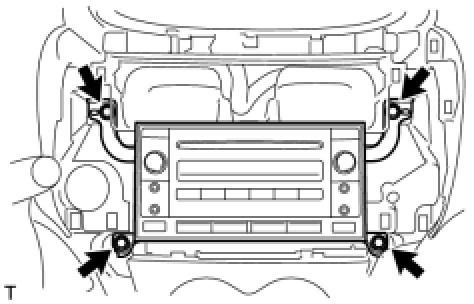

(b) except Integrated with Panel:




(1) Remove the 4 bolts and the radio receiver.




(2) Disconnect the plug.
(3) Disconnect the 2 radio connectors.
