Front Door Speaker (for Sedan)

AUDIO / VISUAL: FRONT DOOR SPEAKER (for Sedan): ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY
HINT: Remove interior parts so that the front No. 1 speaker can be seen.

(a) Check the installation.
OK:
The speaker is securely installed.
If the result is not as specified, reinstall the front No. 1 speaker.
(b) Visually check the speaker.
OK:
The cone paper of the speaker is not torn.
If the result is not as specified, replace the front No. 1 speaker.





(c) Check the resistance.
(1) Disconnect the speaker connector.

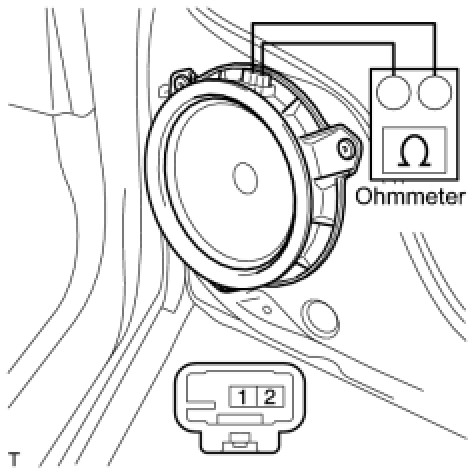

(2) Using an ohmmeter, measure the resistance between the terminals.
Standard resistance:






If the result is not as specified, replace the front No. 1 speaker.
