Radio Receiver Power Source Circuit

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Radio Receiver Power Source Circuit

Radio Receiver Power Source Circuit

DESCRIPTION

This circuit provides power to the radio receiver.

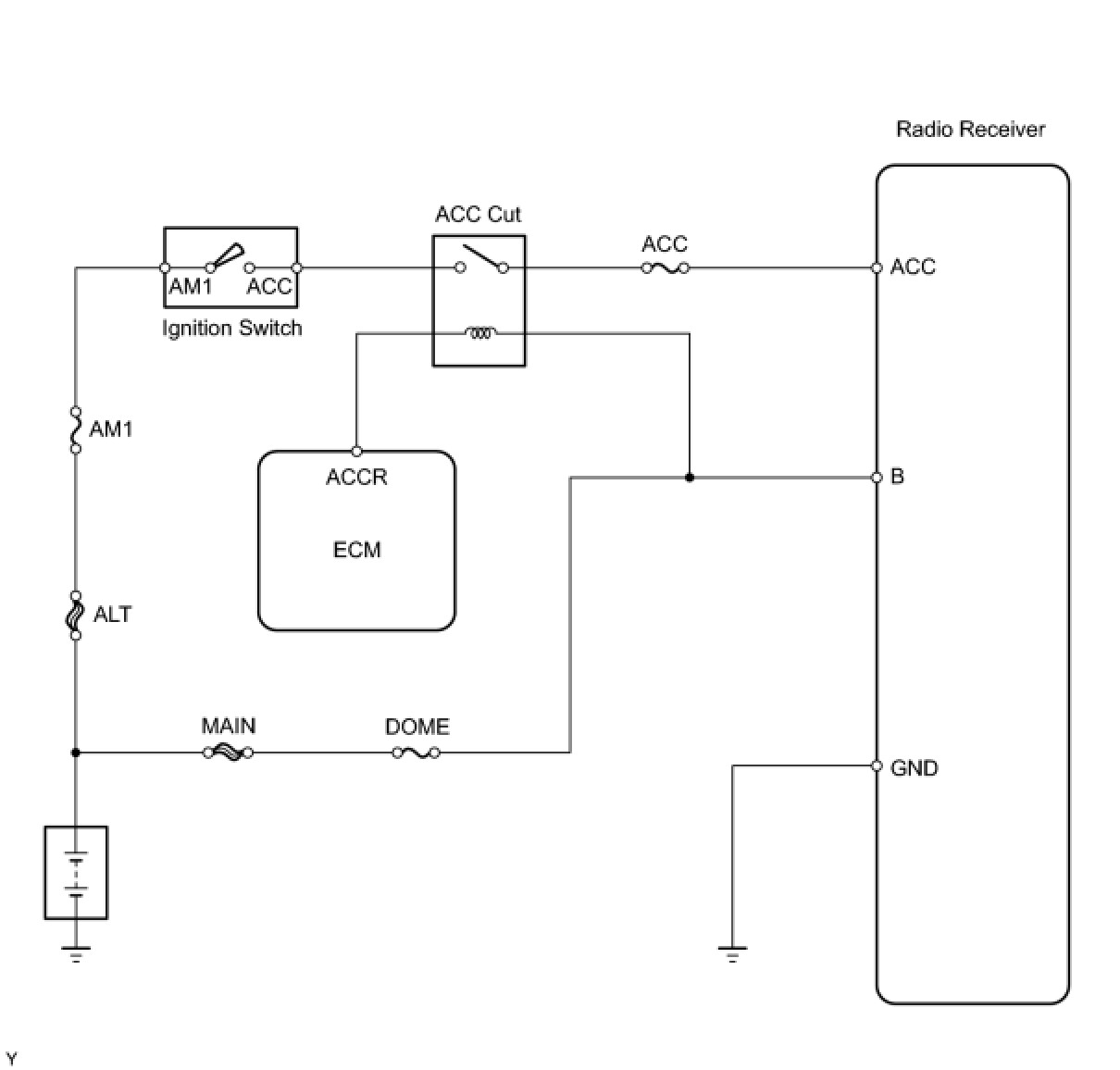

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (ACC, AM1, DOME)
(a) Remove the ACC fuse and AM1 fuse from the main body ECU.
(b) Remove the DOME fuse from the engine room R/B.
(c) Measure the resistance of the fuses.
Standard resistance:
Below 1 Ohms
NG -- REPLACE FUSE
OK -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - BATTERY AND BODY GROUND)

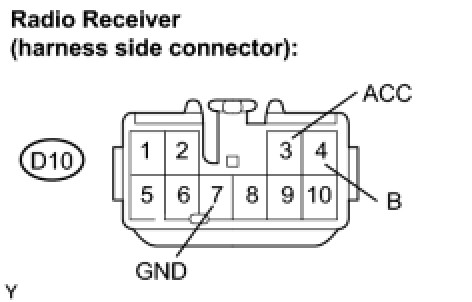

(a) Disconnect the D10 receiver connector.

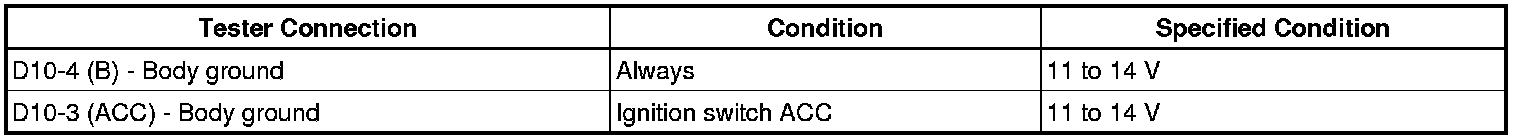

(b) Measure the voltage.
Standard voltage:





(c) Measure the resistance.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
