Sound Signal Circuit Between Radio Receiver and Stereo Jack Adapter

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Sound Signal Circuit between Radio Receiver and Stereo Jack Adapter

Sound Signal Circuit between Radio Receiver and Stereo Jack Adapter

DESCRIPTION

The stereo jack adapter sends an external device sound signal to the radio receiver through this circuit. The sound signal that has been sent is amplified by the stereo component amplifier, and then is sent to the speakers. If there is an open or short in the circuit, sound cannot be heard from the speakers even if there is no malfunction in the stereo component amplifier, radio receiver, or speakers.

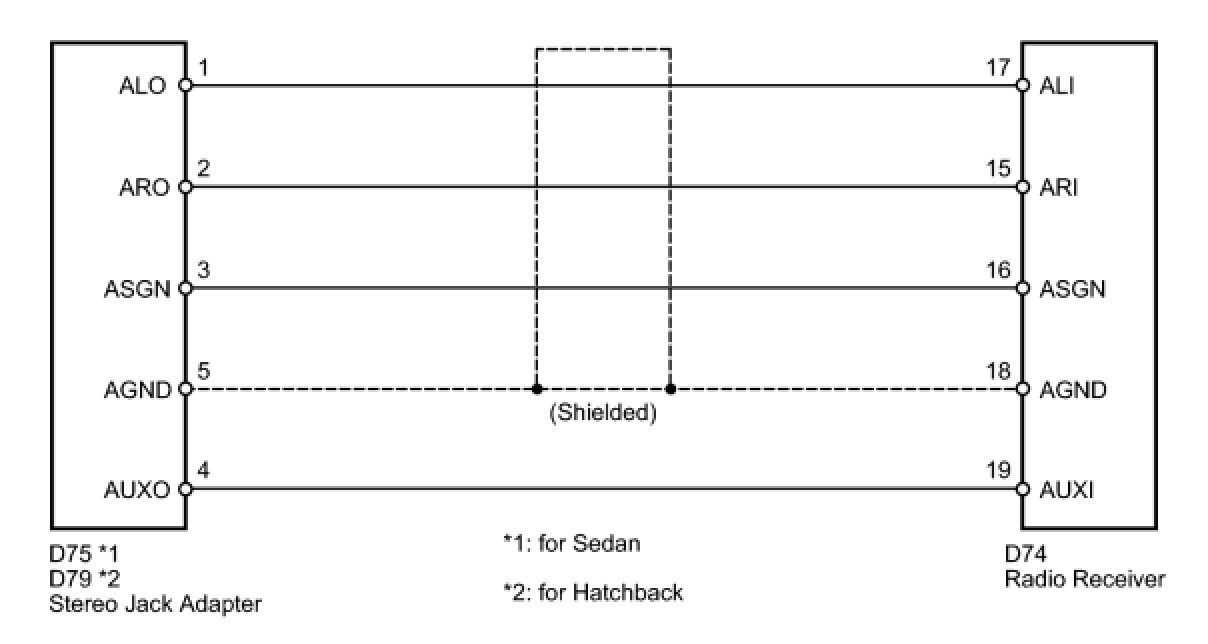

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

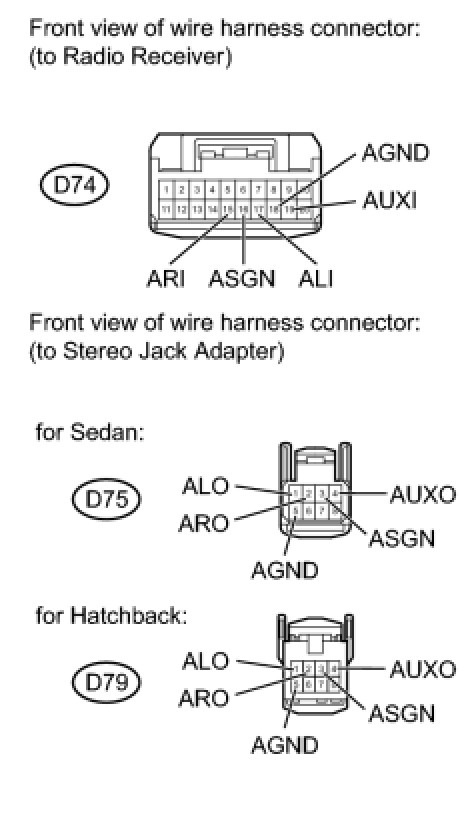

1. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO JACK ADAPTER)




(a) for Sedan:
(1) Disconnect the D74 radio receiver connector.
(2) Disconnect the D75 stereo jack adapter connector.

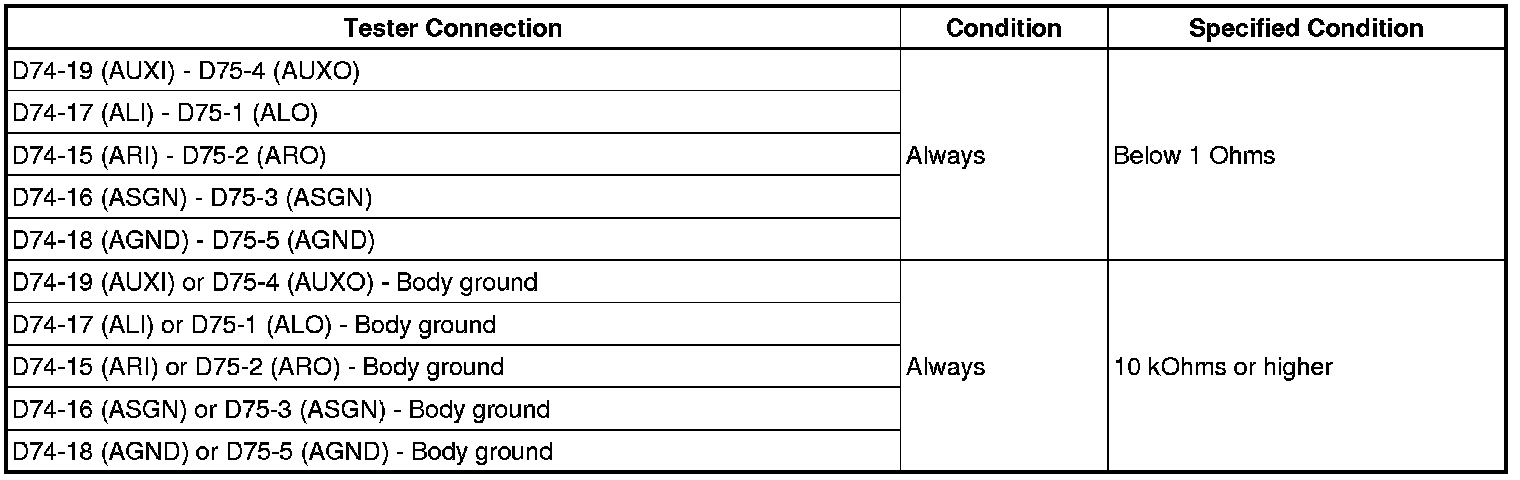

(3) Measure the resistance according to the value(s) in the table below.
Standard resistance:





(b) for Hatchback:
(1) Disconnect the D74 radio receiver connector.
(2) Disconnect the D79 stereo jack adapter connector.
(3) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(4) Reconnect the radio receiver connector.
(5) Reconnect the stereo jack adapter connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
