EXTERIOR: FRONT BUMPER (for Hatchback): INSTALLATION
INSTALLATION
1. INSTALL FRONT BUMPER ARM SUB-ASSEMBLY LH
(a) Install the front bumper arm with the 4 bolts.
Torque: 40 Nm (410 kgf-cm, 30 ft-lbf)
2. INSTALL FRONT BUMPER ARM SUB-ASSEMBLY RH
HINT: Use the same procedure as for the LH side.

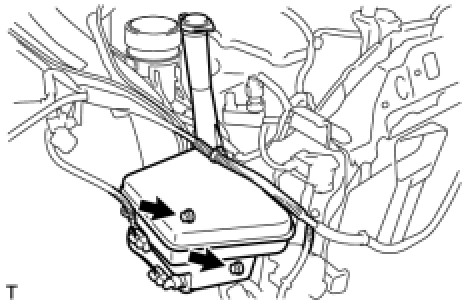

3. INSTALL WINDSHIELD WASHER JAR ASSEMBLY
(a) Install the windshield washer jar with the 2 bolts.
Torque: 5.5 Nm (55 kgf-cm, 49 in-lbf)

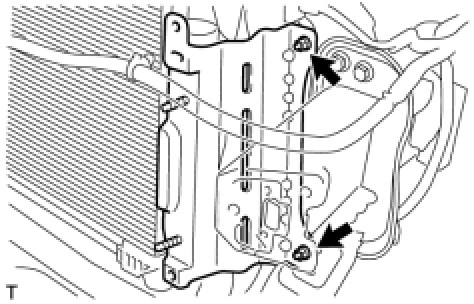

4. INSTALL FRONT BUMPER STONE DEFLECTOR BRACKET
(a) Install the front bumper stone deflector bracket with the 2 nuts.
Torque: 5.5 Nm (55 kgf-cm, 49 in-lbf)
HINT: Use the same procedure as for the opposite side.

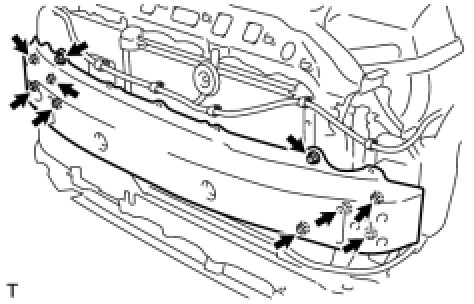

5. INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
(a) Install the front bumper reinforcement with the 6 bolts and the 4 nuts.
Torque: 40 Nm (410 kgf-cm, 30 ft-lbf)
Torque: 5.5 Nm (55 kgf-cm, 49 in-lbf)

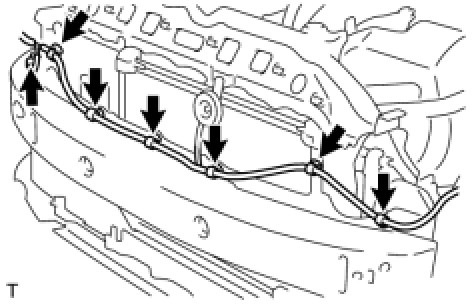

6. CONNECT NO. 2 ENGINE ROOM WIRE (w/ Fog Light)
(a) Install the 7 wiring harness clamps.

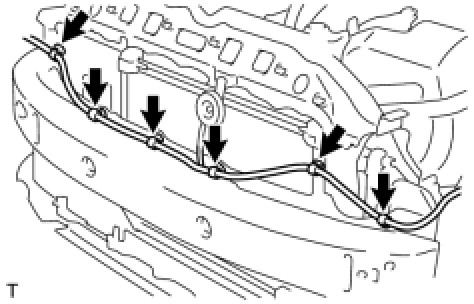

7. CONNECT NO. 2 ENGINE ROOM WIRE (w/o Fog Light)
(a) Install the 6 wiring harness clamps.

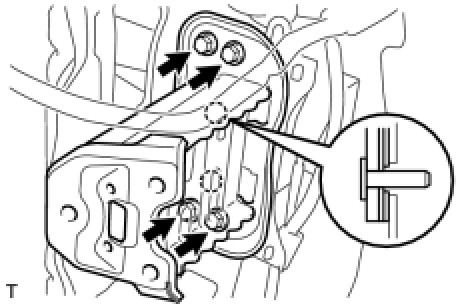

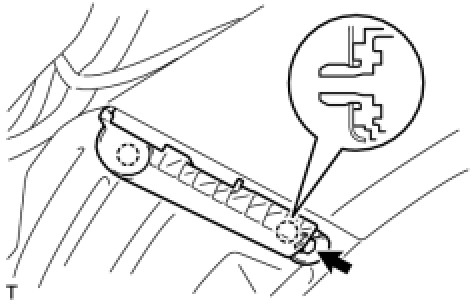

8. INSTALL RADIATOR SUPPORT EXTENSION LH
(a) Engage the 2 claws and install the radiator support extension.
9. INSTALL RADIATOR SUPPORT EXTENSION RH
HINT: Use the same procedure as for the LH side.

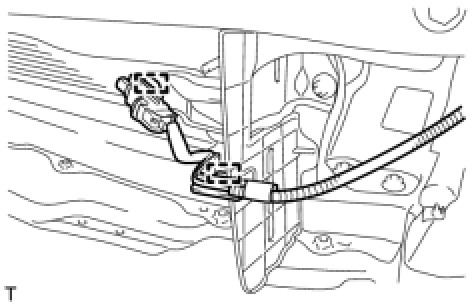

10. INSTALL THERMISTOR ASSEMBLY
(a) Engage the clamp and install the thermistor.
(b) Engage the harness clamp.

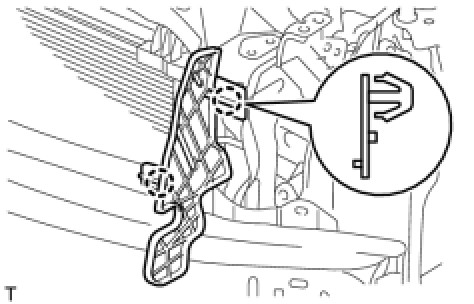

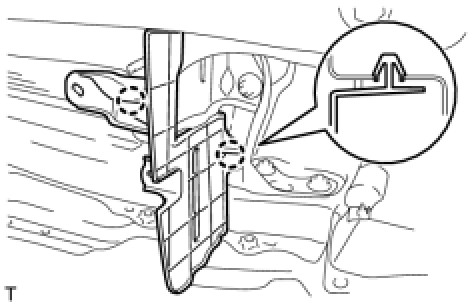

11. INSTALL RADIATOR SIDE AIR SEAL LH
(a) Engage the 2 claws and install the radiator side air seal.
12. INSTALL RADIATOR SIDE AIR SEAL RH
HINT: Use the same procedure as for the LH side.

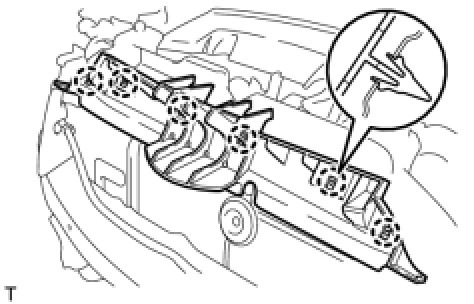

13. INSTALL RADIATOR SUPPORT UPPER ABSORBER
(a) Engage the 6 claws and install the radiator support upper absorber.
14. INSTALL FRONT BUMPER SIDE RETAINER LH
(a) Engage the 2 claws and install the front bumper side retainer.
(b) Tighten the screw.
15. INSTALL FRONT BUMPER SIDE RETAINER RH
HINT: Use the same procedure as for the LH side.
16. INSTALL HEADLIGHT ASSEMBLY LH Installation
17. INSTALL HEADLIGHT ASSEMBLY RH
HINT: Use the same procedure as for the LH side.

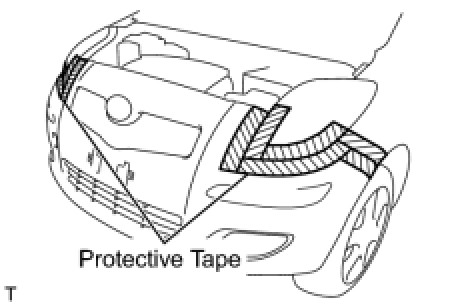

18. INSTALL FRONT BUMPER COVER

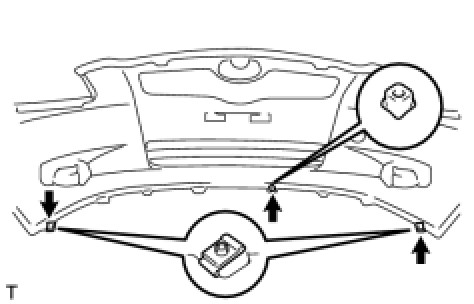

(a) Install the 2 clips and the screw grommet.

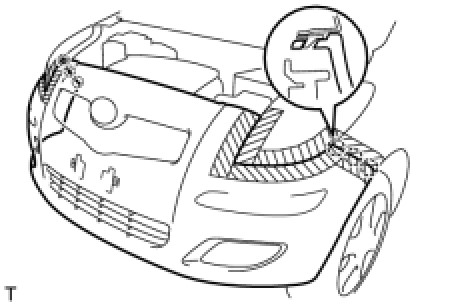

(b) Engage the 6 claws and install the front bumper cover.
(c) Connect the 2 connectors.
HINT: If the vehicle is equipped with fog lights, connect the connectors.

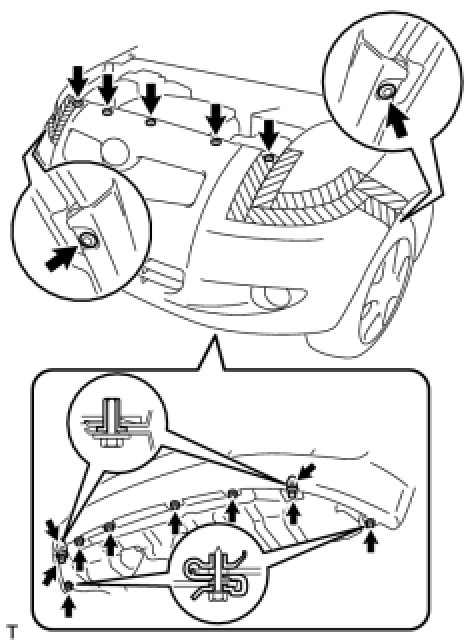

(d) Install the 7 clips.
(e) Install the 2 screw grommets.
(f) Tighten the 8 screws.
(g) Remove the protective tape.
19. PREPARE VEHICLE FOR HEADLIGHT AIMING ADJUSTMENT Headlight Assembly (for Hatchback)
20. PREPARE FOR HEADLIGHT AIMING (for Using a Tester) Headlight Assembly (for Hatchback)
21. PREPARE FOR HEADLIGHT AIMING (for Using a Screen) Headlight Assembly (for Hatchback)
22. INSPECT HEADLIGHT AIMING Headlight Assembly (for Hatchback)
23. ADJUST HEADLIGHT AIMING Headlight Assembly (for Hatchback)
24. PREPARE VEHICLE FOR FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light) Fog Light Assembly (for Hatchback)
25. PREPARE FOR FOG LIGHT AIMING (w/ Fog Light) Fog Light Assembly (for Hatchback)
26. INSPECT FOG LIGHT AIMING (w/ Fog Light) Fog Light Assembly (for Hatchback)
27. ADJUST FOG LIGHT AIMING (w/ Fog Light) Fog Light Assembly (for Hatchback)
