Reassembly








EXTERIOR: FRONT BUMPER (for Hatchback): REASSEMBLY

REASSEMBLY

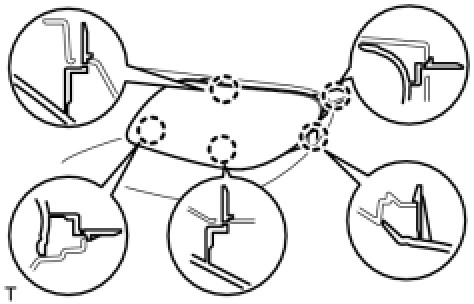

1. INSTALL FRONT BUMPER HOLE COVER





(a) Engage the 3 claws and install the front bumper hole cover.

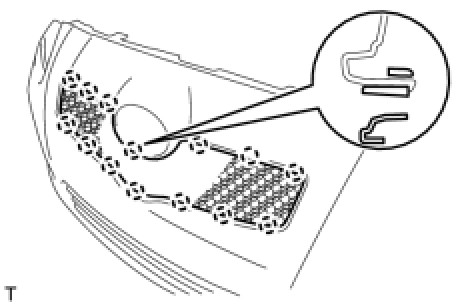

2. INSTALL FOG LIGHT COVER LH





(a) Engage the 5 claws and install the fog light cover.
3. INSTALL FOG LIGHT COVER RH
HINT: Use the same procedure as for the LH side.

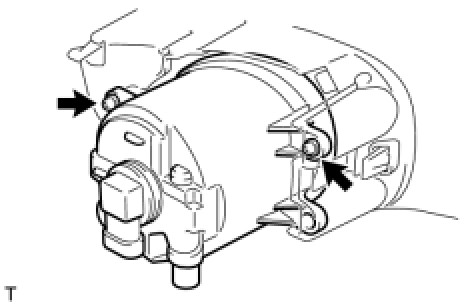

4. INSTALL FOG LIGHT ASSEMBLY LH





(a) Install the fog light with the 2 screws.
5. INSTALL FOG LIGHT ASSEMBLY RH
HINT: Use the same procedure as for the LH side.

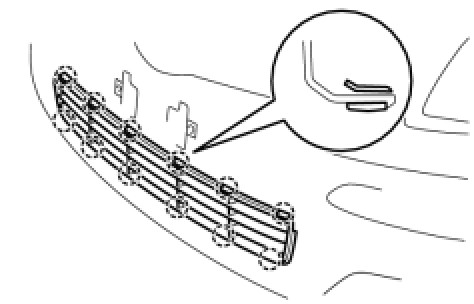

6. INSTALL RADIATOR LOWER GRILLE





(a) Engage the 12 claws and install the radiator lower grille.
7. INSTALL RADIATOR GRILLE





(a) Engage the 14 claws and install the radiator grille.
8. INSTALL RADIATOR GRILLE EMBLEM Installation

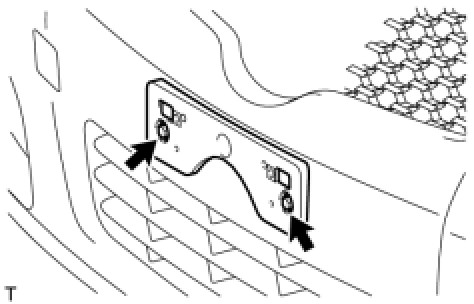

9. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET





(a) Install the front bumper extension mounting bracket with the 2 bolts.
