Disassembly

EXTERIOR: FRONT BUMPER (for Sedan): DISASSEMBLY

DISASSEMBLY

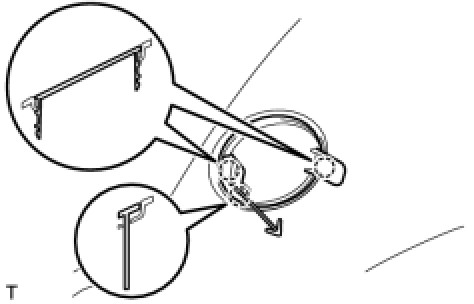

1. REMOVE FRONT BUMPER EMBLEM Removal

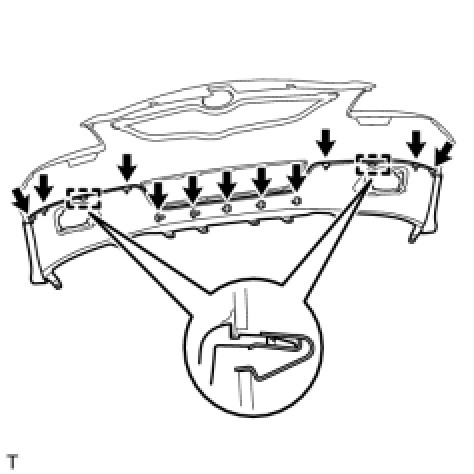

2. REMOVE FRONT SPOILER COVER (w/ Large Front Spoiler)
(a) Remove the 11 retainers.
(b) Disengage the 2 clips and remove the front spoiler cover.

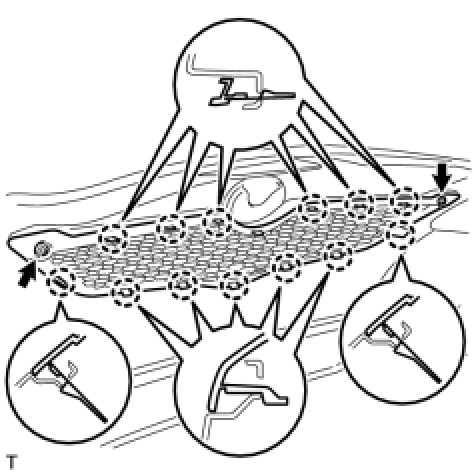

3. REMOVE RADIATOR GRILLE





(a) Remove the 2 screws.
(b) Using a screwdriver, disengage the 13 claws and remove the radiator grille.

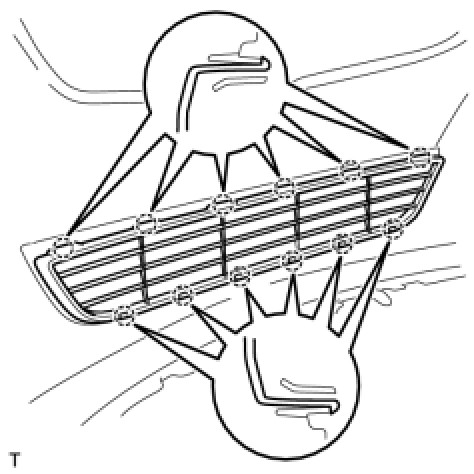

4. REMOVE RADIATOR LOWER GRILLE





(a) Disengage the 12 claws and remove the radiator lower grille.

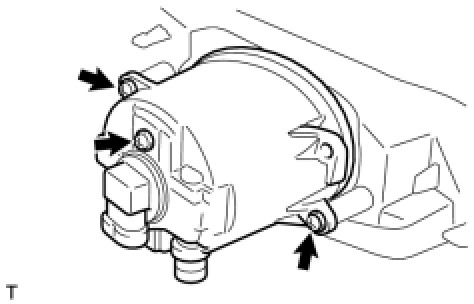

5. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)





(a) Remove the 3 screws and the fog light.
6. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)
HINT: Use the same procedure as for the LH side.

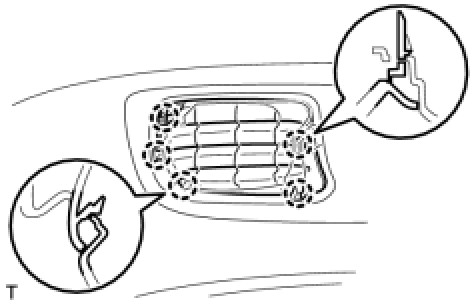

7. REMOVE FRONT BUMPER HOLE COVER LH (w/ Large Front Spoiler)





(a) Disengage the 5 claws and remove the front bumper hole cover.
8. REMOVE FRONT BUMPER HOLE COVER RH (w/ Large Front Spoiler)
HINT: Use the same procedure as for the LH side.

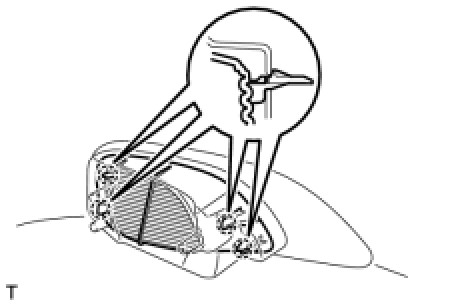

9. REMOVE FRONT BUMPER HOLE COVER LH (w/ Small Front Spoiler)





(a) Disengage the 4 claws and remove the front bumper hole cover.
10. REMOVE FRONT BUMPER HOLE COVER RH (w/ Small Front Spoiler)
HINT: Use the same procedure as for the LH side.

11. REMOVE FRONT BUMPER HOLE COVER LH (w/o Front Spoiler)





(a) Disengage the 4 claws and remove the front bumper hole cover.
12. REMOVE FRONT BUMPER HOLE COVER RH (w/o Front Spoiler)
HINT: Use the same procedure as for the LH side.

13. REMOVE FRONT BUMPER EXTENSION MOULDING RH





(a) Disengage the 3 claws and remove the front bumper extension moulding.
