Reassembly

EXTERIOR: REAR BUMPER (for Hatchback): REASSEMBLY

REASSEMBLY

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY

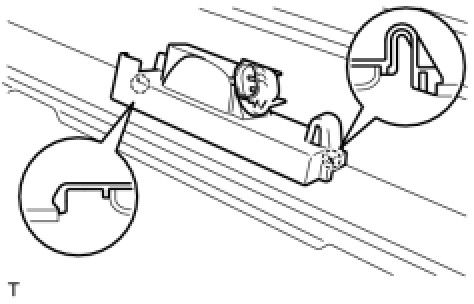

(a) Engage the 2 claws and install the license plate light.
2. INSTALL REAR BUMPER ENERGY ABSORBER LH

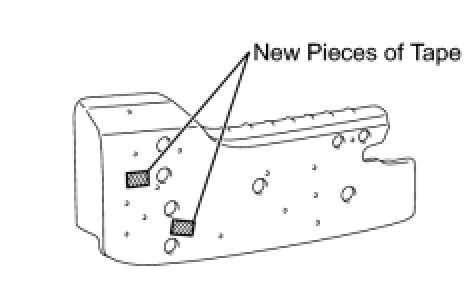

(a) Apply 2 new pieces of tape.

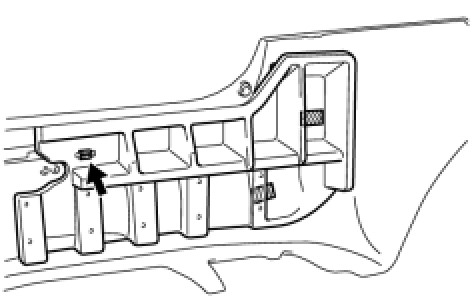

(b) Install the rear bumper energy absorber with the clip.
3. INSTALL REAR BUMPER ENERGY ABSORBER RH
HINT: Use the same procedure as for the LH side.
